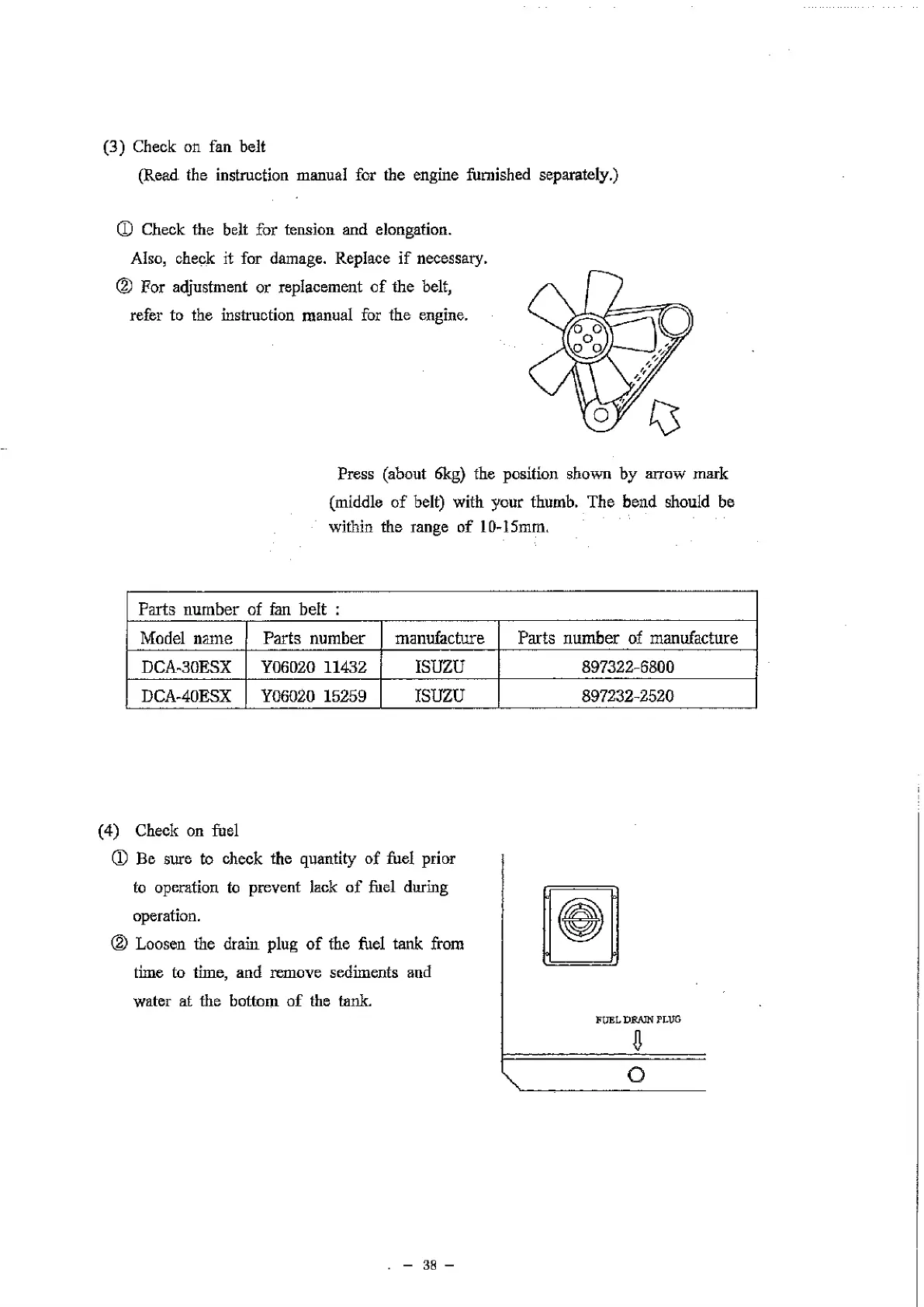

(3) Check on fan belt
(Read the instruction manual for the engine furnished separately.)
ф Check the belt for tension and elongation.
Also, check it for damage. Replace if necessary.
Ф
For adjustment or replacement of the belt,
refer to the instruction manual for the engine.
Press (about 6kg) the position shown by arrow mark
(middle of belt) with your thumb. The bend should be
within the range of 10-15mm.
Parts number of fan belt :
Model name Parts number
manufacture
Parts number of manufacture
DCA-30ESX Y06020 11432 ISUZU 897322-6800
DCA-40ESX Y06020 15259 ISUZU 897232-2520
(4) Check on fuel
CD Be sure to check the quantity of fuel prior
to operation to prevent lack of fuel during
operation.
© Loosen the drain plug of the fuel tank from
time to time, and remove sediments and
water at the bottom of the tank.
- 38 -
