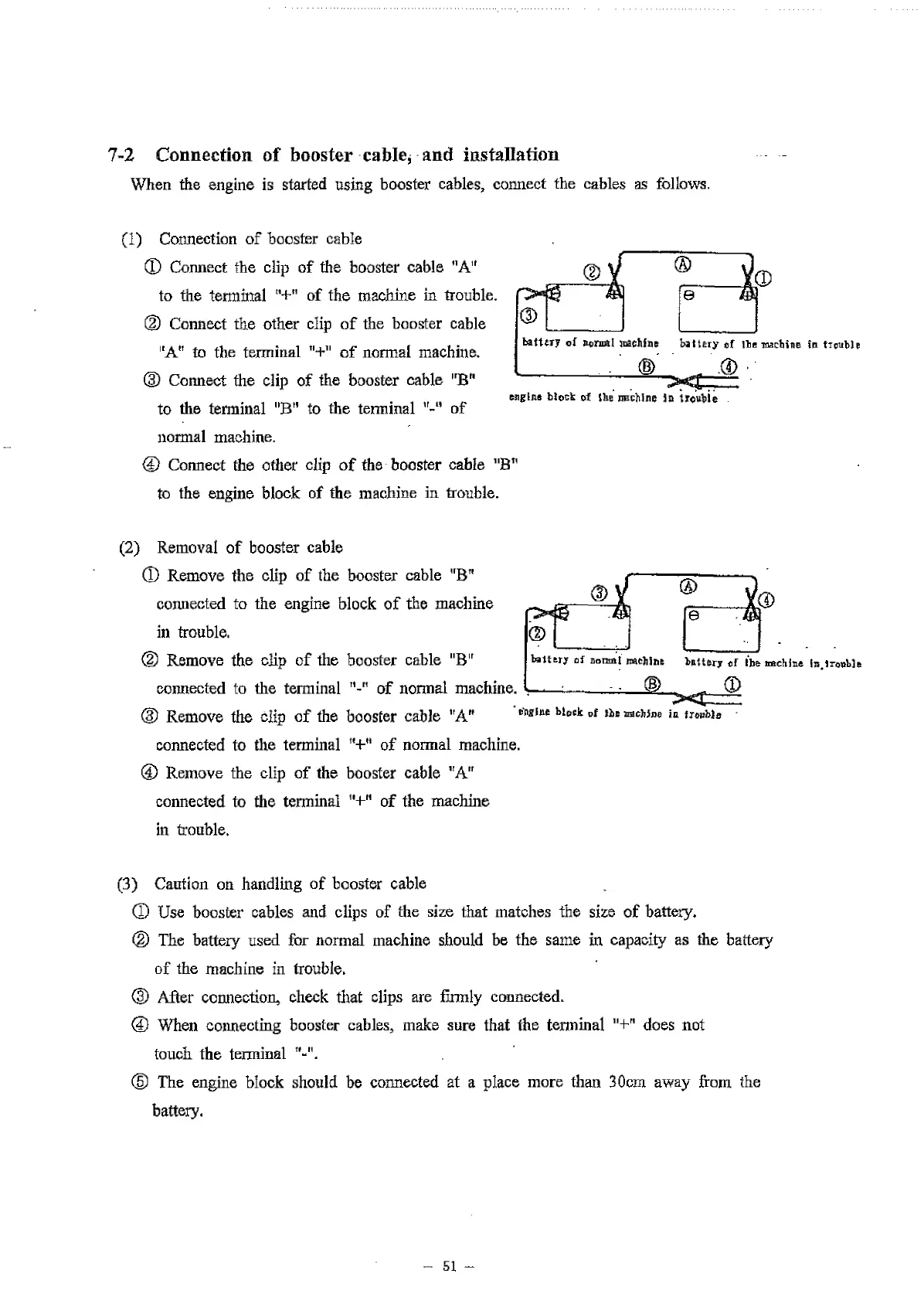

7-2 Connection of booster cable* and installation
When the engine is started using booster cables, connect the cables as follows.
(1) Connection of booster cable
ф Connect the clip of the booster cable "A"
to the terminal of the machine in trouble.
Ф
Connect the other clip of the booster cable
"A" to the terminal "+" of normal machine.
® Connect the clip of the booster cable "В"
to the terminal "B” to the terminal ,'-1’ of
normal machine,
© Connect the other clip of the booster cable
to the engine block of the machine in trouble.
Ф
e
(2) Removal of booster cable
CD
Remove the clip
o f
the booster cable "B"
connected to the engine block of the machine
in trouble.
ф
Remove the clip of the booster cable "B"
connected to the terminal ',-r' of normal machine.
Ф
Remove the clip of the booster cable ’А" *'№,ве Ь1м1с )ic B5JcWDe iE *«i*te
connected to the terminal "+H of normal machine.
© Remove the clip of the booster cable "A"
connected to the terminal "+" of the machine
in trouble.
Ф
balttry af nonml foaebint
- ®
X £
(3) Caution on handling of booster cable
CD
Use booster cables and clips of the size that matches the size of battery.
© The battery used for normal machine should be the same in capacity as the battery
of the machine in trouble.
<3) After connection, check that clips are firmly connected.
© When connecting booster cables, make sure that the terminal "+" does not
touch the terminal
© The engine block should be connected at a place more than 30cm away from the
battery.
- 51 -
