For design version GLD-520SP, GLD-520SP-BS. Pull back the handle bottom, as shown in Fig.4. Connect the
top part of the handle to its bottom part via the set of fasteners (Fig. 4). Fix the plastic retainer control ropes.
1
2
3
4
Fig. 4

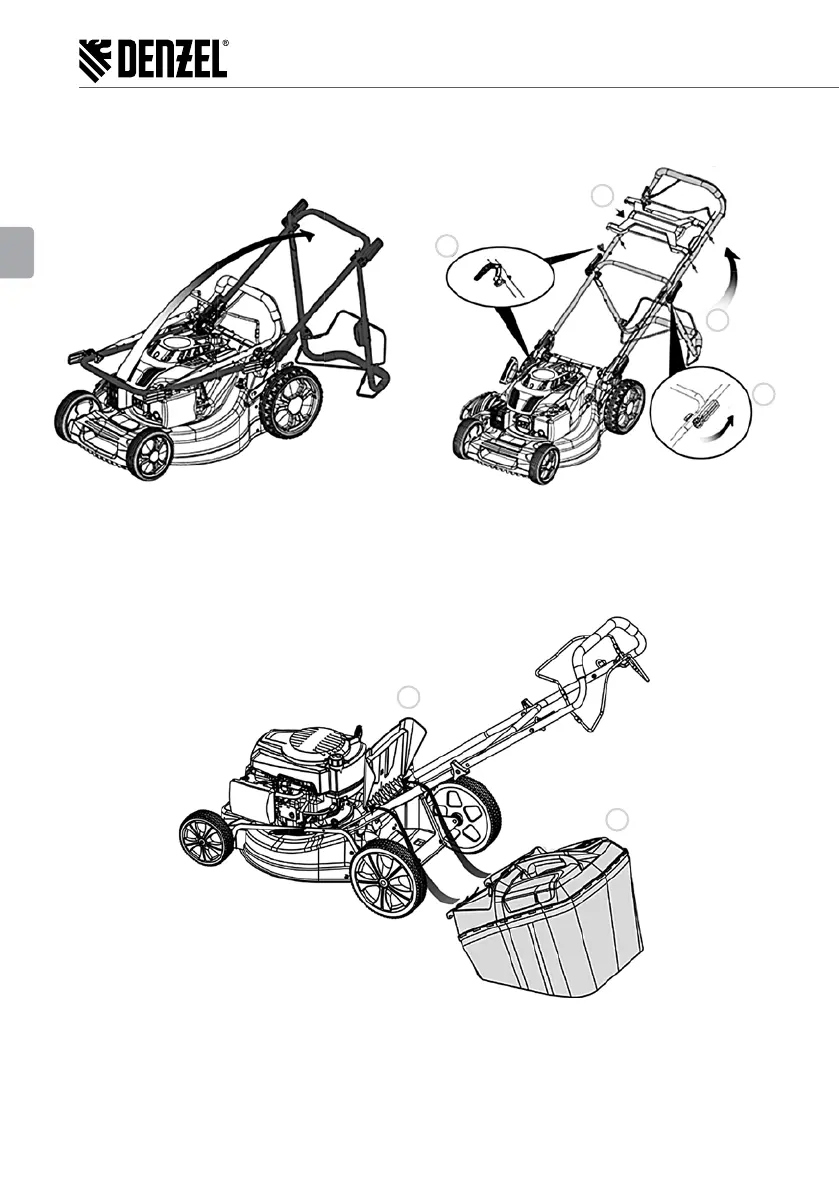

Grass catcher installation
To install the grass catcher 2 (Fig. 5), open the rear cover of the lawn mower 1 (Fig. 5) and hook the grass catcher
to ledges on the housing, as shown in the Figure.
1
2
Fig. 5
Installation of the side discharge deector
(for design versions GLD-460SP, GLD-520SP, GLD-520SP-BS)
If you need to engage the grass side discharge function, remove the grass catcher 2 (Fig. 5), and close the rear
cover 1 (Fig. 5). To install the side discharge deector, open the side cover 1 (Fig. 6) of the lawn mower, insert
and x the deector 2 (Fig. 6).
