INSTALLATION
Installing the indoor unit
1. Ensure the machine is not connected to the mains electricity supply
before carrying out the installation
2. Unclip the mounting panel from the rear of the indoor unit using the two
catches in the bottom corners
3. Ensure the mounting panel is horizontal and fix into place using the self
tapping screws provided, at least 50mm for the ceiling, 100mm from each
side wall and 2000mm from the floor
4. Carefully drill a 60mm hole, angled downwards, slightly to the right of the
mounting panel. (The indoor unit should then cover this hole when hung)

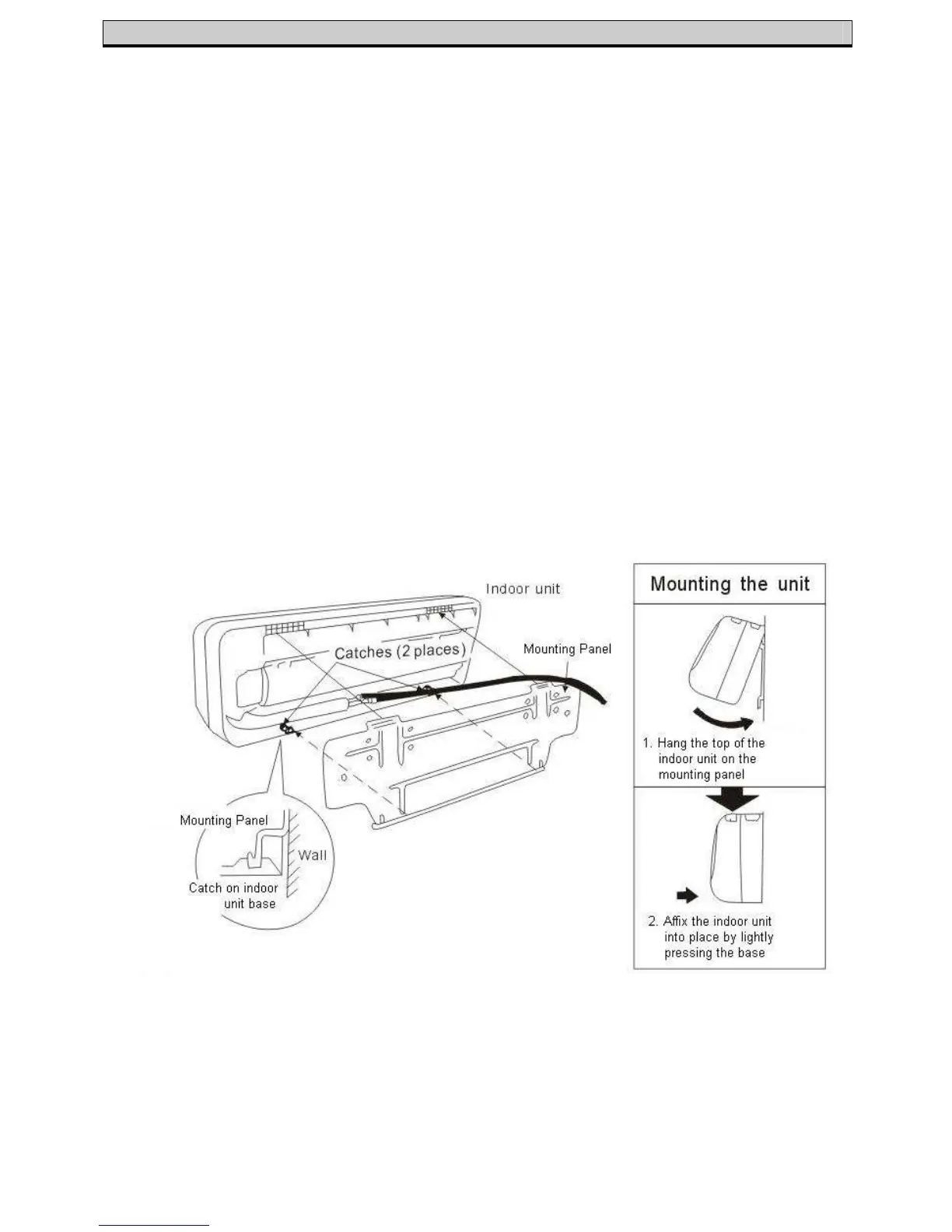

5. Pass the piping through the hole and then mount the indoor unit. Hang the
top of the unit on the mounting panel and lightly press the base until it
‘clicks’ into place
