www.desatech.com
111986-01F 21
FIREPLACE
INSTALLATION
Continued

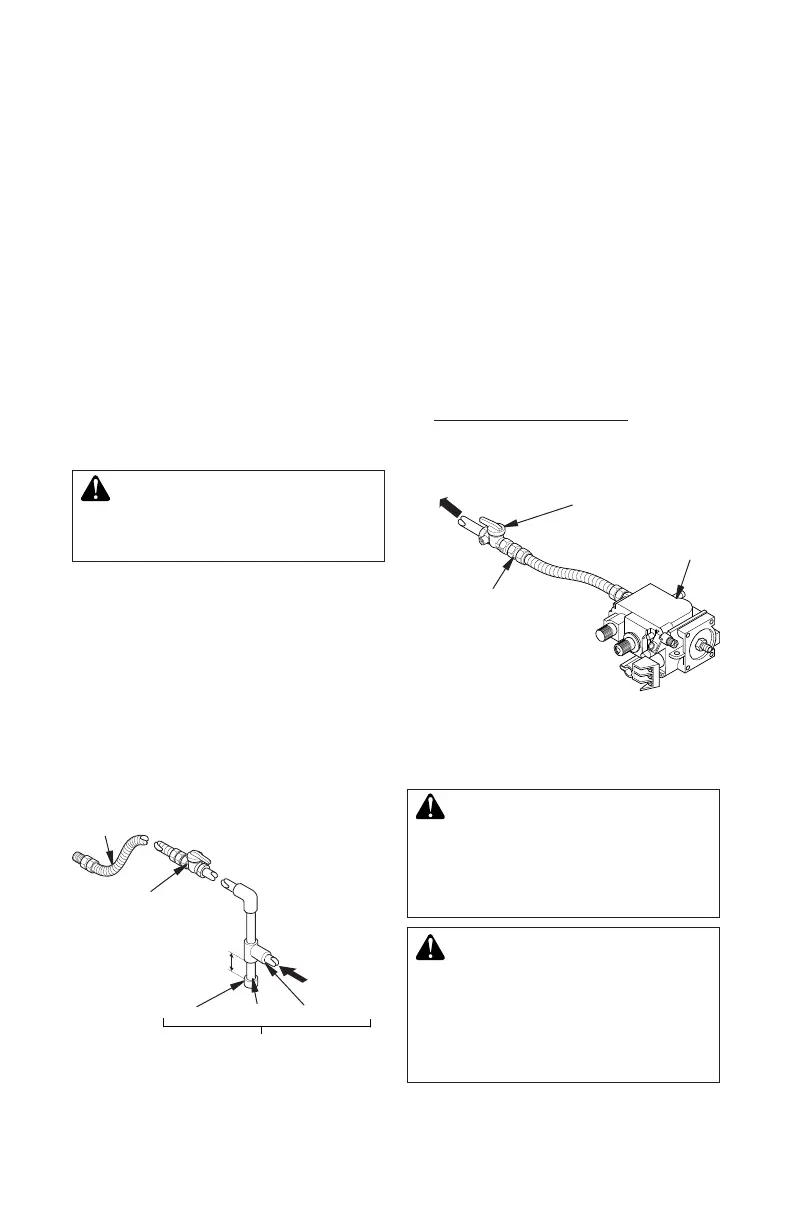

Figure 31 - Gas Connection
CSA Design-Certied
Equipment Shutoff
Valve with 1/8" NPT
Tap*
3" Minimum
Approved Flexible
Gas Line
Cap Pipe Nipple Tee Joint
Sediment Trap/Drip Leg
Natural - From Gas
Meter (5.5" W.C. to
10.5" W.C. Pressure)
* The CSA design-certied equipment shutoff
valve may be supplied with the appliance or
you can purchase it from your retailer.

From External
Regulator (11"
W.C. to 14" W.C.
Pressure)
Installation must include an equipment shutoff
valve, union, and plugged 1/8" NPT tap. Lo-
cate NPT tap within reach for test gauge hook
up. NPT tap must be upstream from replace
(see Figure 31).
IMPORTANT: Install main gas valve (equip-
ment shutoff valve) in an accessible location.
The main gas valve is for turning on or shutting
off the gas to the appliance.
Check your building codes for any special
requirements for locating equipment shutoff
valve to replaces.
Apply pipe joint sealant lightly to male NPT
threads. This will prevent excess sealant from
going into pipe. Excess sealant in pipe could
result in clogged replace valves.
   


We recommend that you install a sediment
trap/drip leg in supply line as shown in Figure
31. Locate sediment trap/drip leg where it is
within reach for cleaning. Install in piping sys-
tem between fuel supply and replace. Locate
sediment trap/drip leg where trapped matter
is not likely to freeze. A sediment trap traps
moisture and contaminants. This keeps them
from going into replace gas controls. If sedi-
ment trap/drip leg is not installed or is installed
wrong, replace may not run properly.
Figure 32 - Connecting Flexible Gas Line
to Control Valve
CONNECTING FIREPLACE TO GAS
SUPPLY
Installation Items Needed
5/16" hex socket wrench or nut-driver
sealant (resistant to propane/LP gas, not
provided)
1. Open lower louver door panel by gently
pulling forward.
2. Route exible gas line (provided by in-
staller) from equipment shutoff valve to
replace. Route exible gas supply line
through one of the access holes on side
of replace.
3. Attach exible gas line from gas supply to
control valve (see Figure 32).
4. Check all gas connections for leaks. See
Checking Gas Connections.


and connections, internal and
external to unit, for leaks after
 

WARNING: Never use an

-



Flexible Gas
Line Do NOT
Kink
Equipment
Shutoff
Valve
To Gas Supply (Natural)
To External Regulator
(Propane/LP)
Control
Valve
