28 / 43
AM: signal after auto-mixer treatment
AFC: signal after AFC treatment
AEC: signal after AEC treatment
ANS: signal after ANS treatment

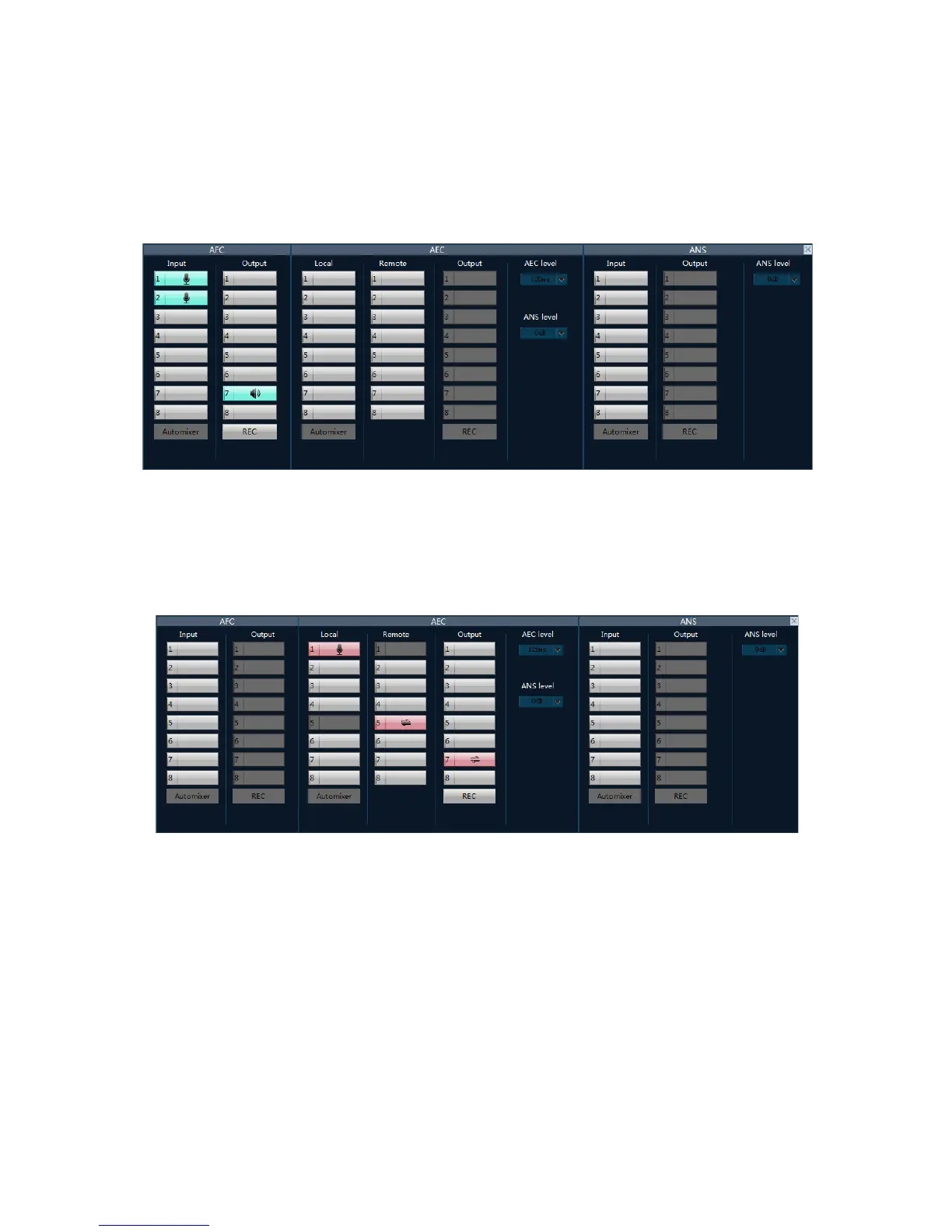

Example 1: AFC
Signal using an AFC of channel 1 and 2, and output in the channel 7, set up as follows:
1．the selected input channel 1 and 2, said signal using an AFC of channel 1 and 2.
2．the selected output channel 7, said the results from channel 7 output.
Example 2: AEC
Local signal as the input channel 1, remote signal as the input channel 5, from channel 1 signal filtering
channel 5 signal, and output in the channel 7, the configuration is as follows:
1. select the local signal input channel and remote signal channel 5.
2. the results from the channel 7 output.
Example 3: ANC
Opening the ANC to channel 3 and 5 of the signal, and output in the channel 1 and 2, the configuration is as
follows:
