the scene parameter is “Scene 2”, the output electrical
out put high ”, and the GPIO
Enabled State is “ON”. The settings will become effective
after the “Apply” button at the bottom is clicked, If Scene 2
is loaded on the scene management interface, PIN-2 will
output 0, andremain the same before other scenes are
loaded, at which time PIN-2 will output 1;
b

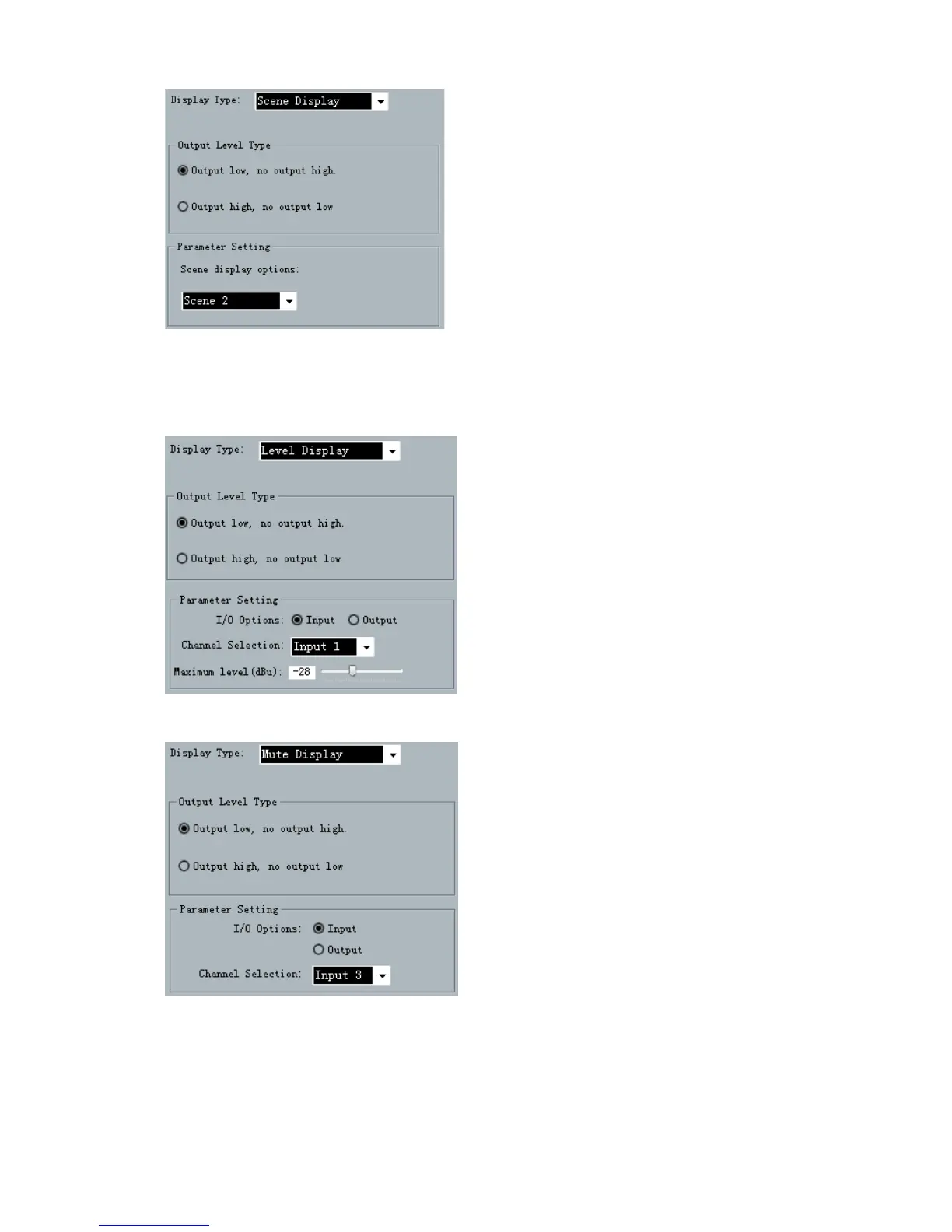

The specific settings are as follows if Level Display is selected:
As the level of input channel 1 of the audio matrix
reaches -28 dB, PIN-2 will output 0, and remain the
same before the level decreases, at which time PIN-2
will output 1.
c
The specific settings are as follows if Mute Display is selected:
As the input channel 3 of the matrix is muted,
PIN-2 outputs 1 and remains the same before the input
channel 3 is not muted,at which time PIN-2 outputs 0.
