CERTIFICATION—
FMRC: Refer to Appendix A for FM Approval.
CSA: Refer to Appendix B for CSA Certification.
CENELEC: Refer to Appendix C for CENELEC
Certification information.
CATALYTIC SENSOR
TEMPERATURE RANGE*—
–67°F to +302°F (–55°C to + 150°C).
*Materials suitable for installation in this range.
HUMIDITY RANGE—
0 to 99% RH, non-condensing.
RESPONSE TIME—
50% full scale in < 10 seconds with 100% LFL applied.
90% full scale in < 30 seconds with 100% LFL applied.
60% full scale in < 10 seconds with 100% methane by
volume in air (CSA flooding test).
RECOVERY TIME—
Less than 30 seconds after exposure to pure methane.
ACCURACY—
±3% LFL from 0 to 50% LFL,
±5% LFL from 51% to 100% LFL.
REPEATABILITY—
±1% LFL.
LONG TERM STABILITY—
Zero: < 1% LFL per month.
Span: < 1% LFL per month in clean air.
TEMPERATURE STABILITY—
< ±5% LFL: –13°F to +167°F (–25°C to +75°C).
< ±10% LFL: –40°F to –13°F (–40°C to –25°C).
TYPICAL SENSOR LIFE—
3 to 5 years, when environment is free of substances
and conditions known to be detrimental to catalytic
sensing elements.
STORAGE LIFE—
Indefinite if sensor is stored within the specified
temperature range and remains in unopened original
packaging.
CALIBRATION CYCLE—
90 days typical.
CERTIFICATION—
FM and CSA: Class I, Div. 1, Groups B, C & D.
Explosion-proof verified:
–-40°F to +257°F
(–40°C to +125°C).
Performance verified:
–40°F to +167°F
(–-40°C to +75°C).
For additional certification information, refer to Appendix
A for FM Approval and Appendix B for CSA
Certification.
CENELEC / CE: Refer to Appendix C for certification
information.
NOTE
Ensure sensor hazardous (classified) location
rating is applicable for the intended use.

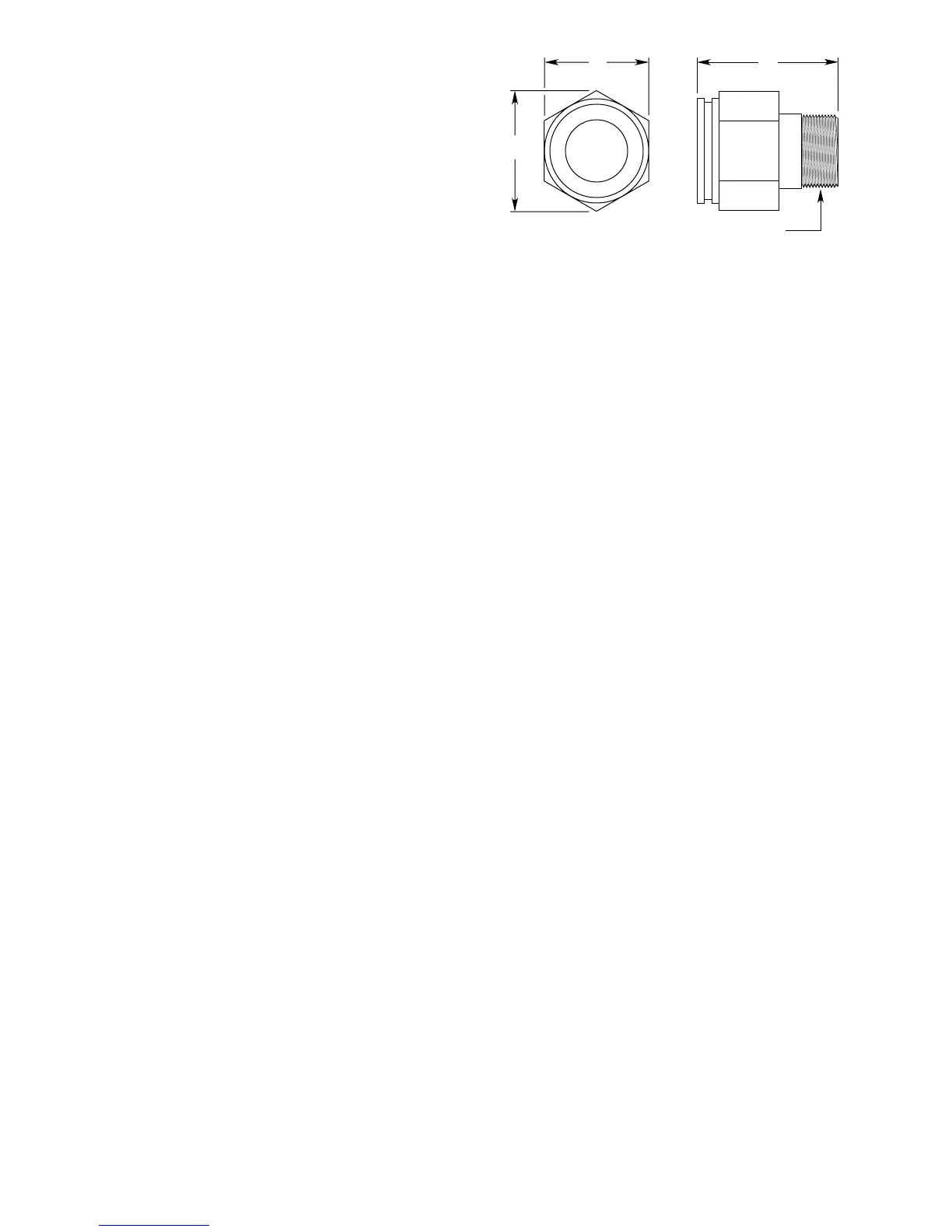

DIMENSIONS—
See Figure 9.
Section III —
System Maintenance
TROUBLESHOOTING
Table 3 is intended to serve as an aid in locating the
cause of a malfunction.
The transmitter is not designed to be repaired in the
field. If a problem should develop, first check for proper
wiring, calibration and sensor sensitivity. If it is
determined that the problem is caused by an electrical
malfunction in the transmitter, the unit must be returned
to the factory for repair.
