SCALE ASSEMBLY
The Detecto Physician’s Eye-Level Beam Scale comes partially assembled. The following
components require assembly:
x Column
x Draft Rod
x Height Rod
x Wheels
Tools required:
x Phillips head screwdriver
x Wrench (included)
1. Set the scale base on a table or other assembly area free from traffic and obstructions.
2. Remove the cable tie that secures the draft rod during transit (shown in Figure 1).

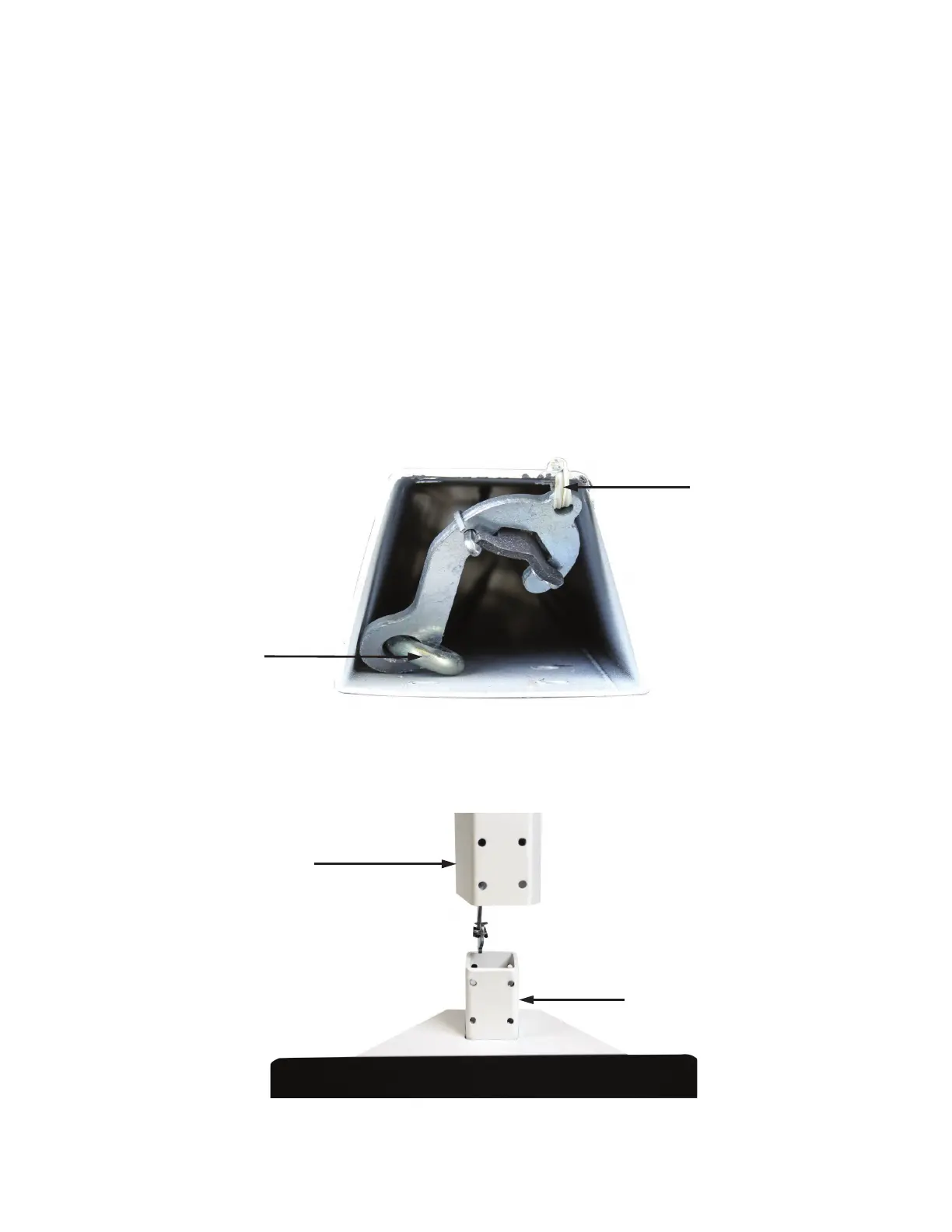

Figure 1. - Remove cable tie securing draft rod in column
3. Insert the column onto the scale base (shown in Figure 2), ensuring that the DETECTO
logo on the weight beam faces the scale base.
Figure 2. - Insert column onto scale base
Draft Rod
Cable Tie
Column
Scale Base
