8525-0374-0M Rev A y Physician’s Scale Owner’s Manual
5
SCALE ASSEMBLY, CONT.

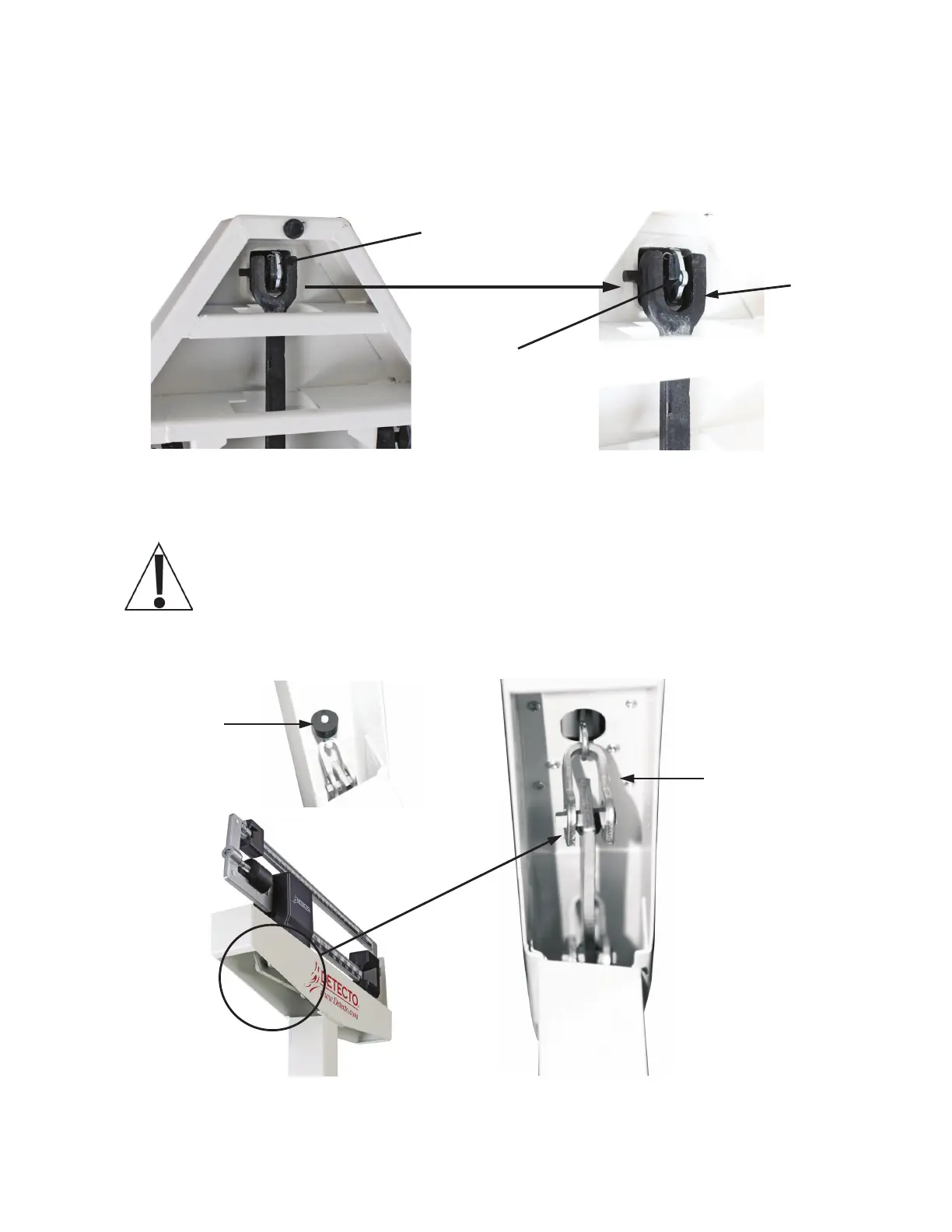

6. Insert the wrench (included) into the small hole in front of the draft rod and pull the draft
rod hook with the wrench to connect it to the long lever as shown in Figure 5. The draft
rod is located inside the scale column. Once the column is attached to the scale base, the
draft rod must be attached to the long lever.
Figure 5. - Connect draft rod hook to long lever
7. Push the long lever forward and hook the draft rod’s hook onto the long lever pivot.
IMPORTANT! During shipping, a plug is installed to ensure that the shelf lever
assembly stays aligned, however the linkage may still come out of alignment.
Remove the plug and then visually ensure that the shelf lever assembly linkage is
centered and properly aligned. The linkage must be free floating in order for the
scale to weigh properly. If the scale is slightly tipped to one side, the linkage can
be seen by looking up underneath the weigh beam headpiece.
Figure 6. - View of linkage underneath weigh beam headpiece
8. Place the scale gently back on the floor.
Draft Rod Hook
Long
Lever
Insert
wrench
here
Remove
shipping
linkage
alignment
plug
Shelf lever
assembly linkage
must be properly
aligned in order
to weigh
To Next Page
