Deus CT1 24 - Visualization of the Input Status via Display

P.17
BA
BA
BA
[8] - Relay Output
[0] Gate Open Light (Default)
[1] Courtesy light 30 "
[2] Courtesy light 1 '
[3] Courtesy light 3 '
[4] Impulsive radio contact
[5] Step-by-step radio contact
[9] - Enable NC safety inputs 7 - 11 - 12
With opon 9 it is possible to manually enable the safety inputs according to the
indicaons given here.
With the Red Led ON the corresponding NC input is enabled, with the Led OFF the input
is disabled.
Press A to advance the sequence, when the segment is on, the contact is acve.
Press
Press
Press
Input 7
STOP
Input 11
SAFETY
IN
OPENING
Input 12
ATTENTION
PLEASE NOTE
Aer enabling the safety inputs, check their correct funconing.
7 – VISUALIZATION OF THE INPUT STATUS VIA DISPLAY

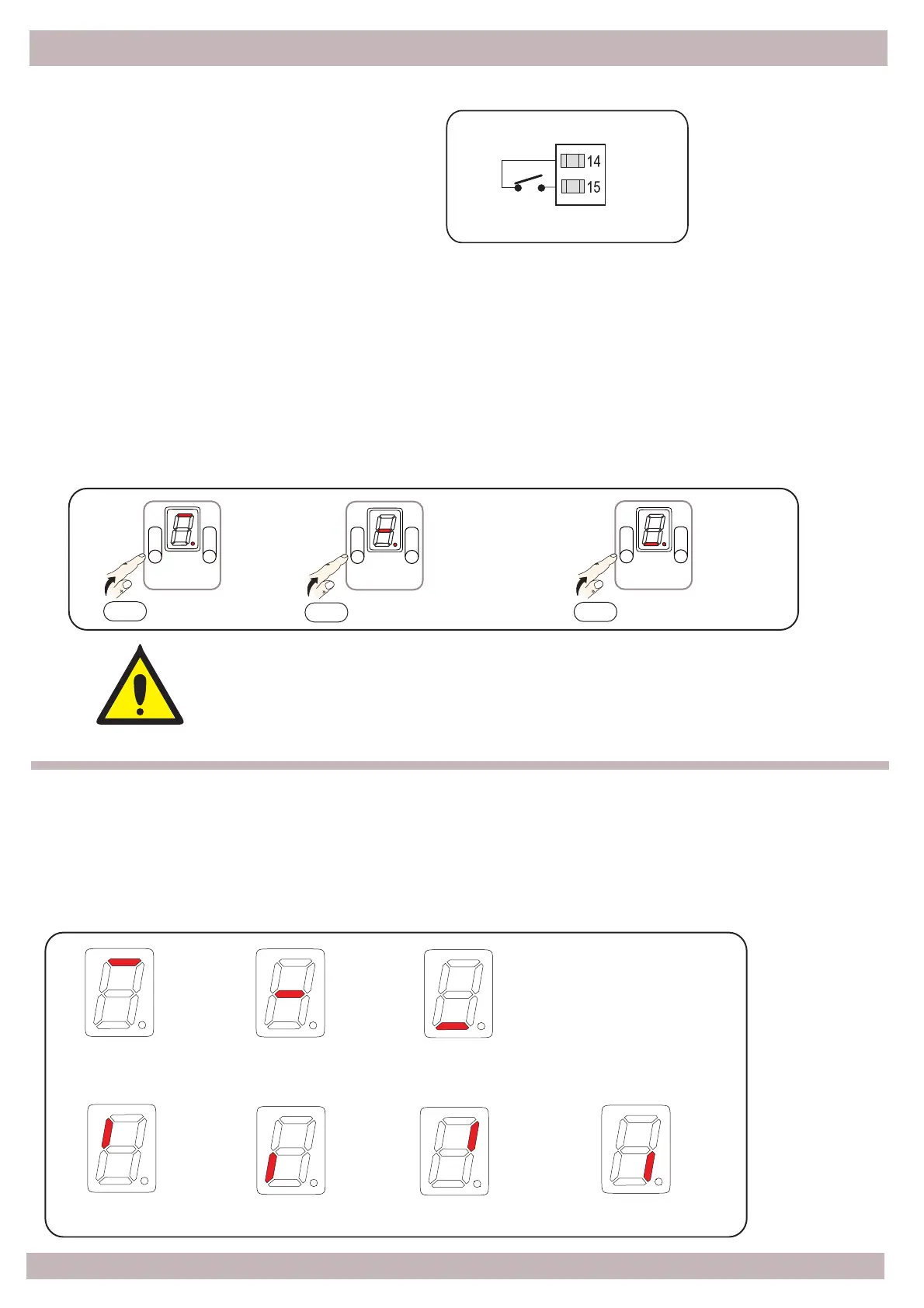

Press and release the A buon, for 30 "it is possible to view the status of the inputs, according
to these rules:
Led On = Contact closed Led Off = Contact opened.
Press A again to quit the displayed menu.
11-SAFETY IN
OPENING
12-PHOTO
7-STOP
8-OPENS
9-CLOSES
10-STEP BY STEP
REMOTE TRASNMITTER
