Deus CT1 24 - Connection with Emergency Batteries (Optional AGEX Kit)

P.18
230 Vac
AGEX
+
-
+
-
FUSE
FUSE
A
B
MICRO
MOS
INTEGRATED
RADIO FREQUENCY
COND.
COND.
Relay1
Relay2
MOS
Diode
RESISTENCE
CONN.
LM
E2
MC330
Relay
1
2
3
4
5
6
7
8
F = 4A - T
Battery Fuse
5x20

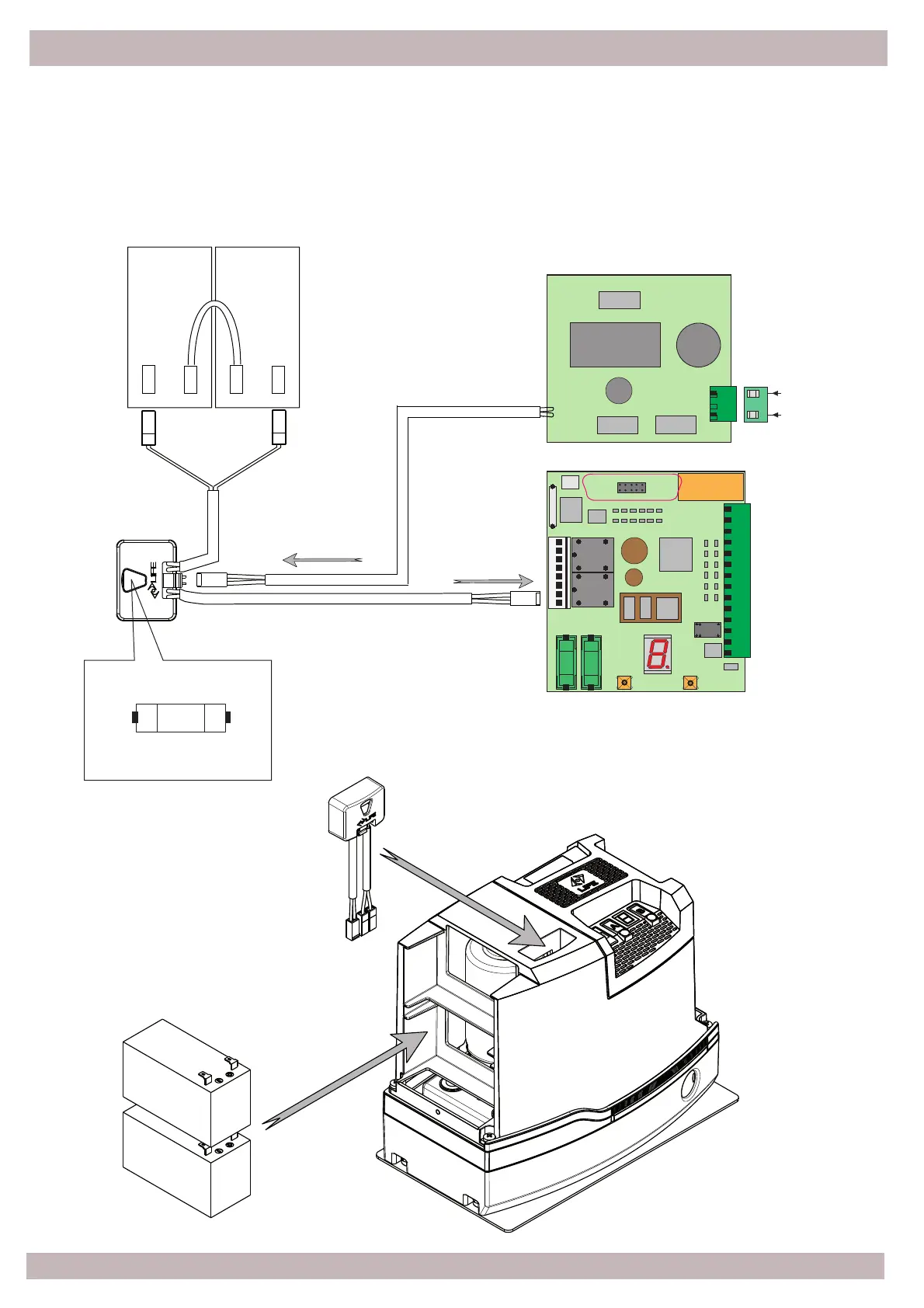

8 - CONNECTION WITH EMERGENCY BATTERIES (OPTIONAL AGEX KIT)
The backup ba!eries allow you to have an emergency solu"on in cases of power failure; the
autonomy is around 8 hours and/or approximately ten maneuvers.
For the connec"ons follow the diagram shown here.
Transformer output
Card Input
Batteries
Switching Transformer
Electronic control unit
Red
Black
