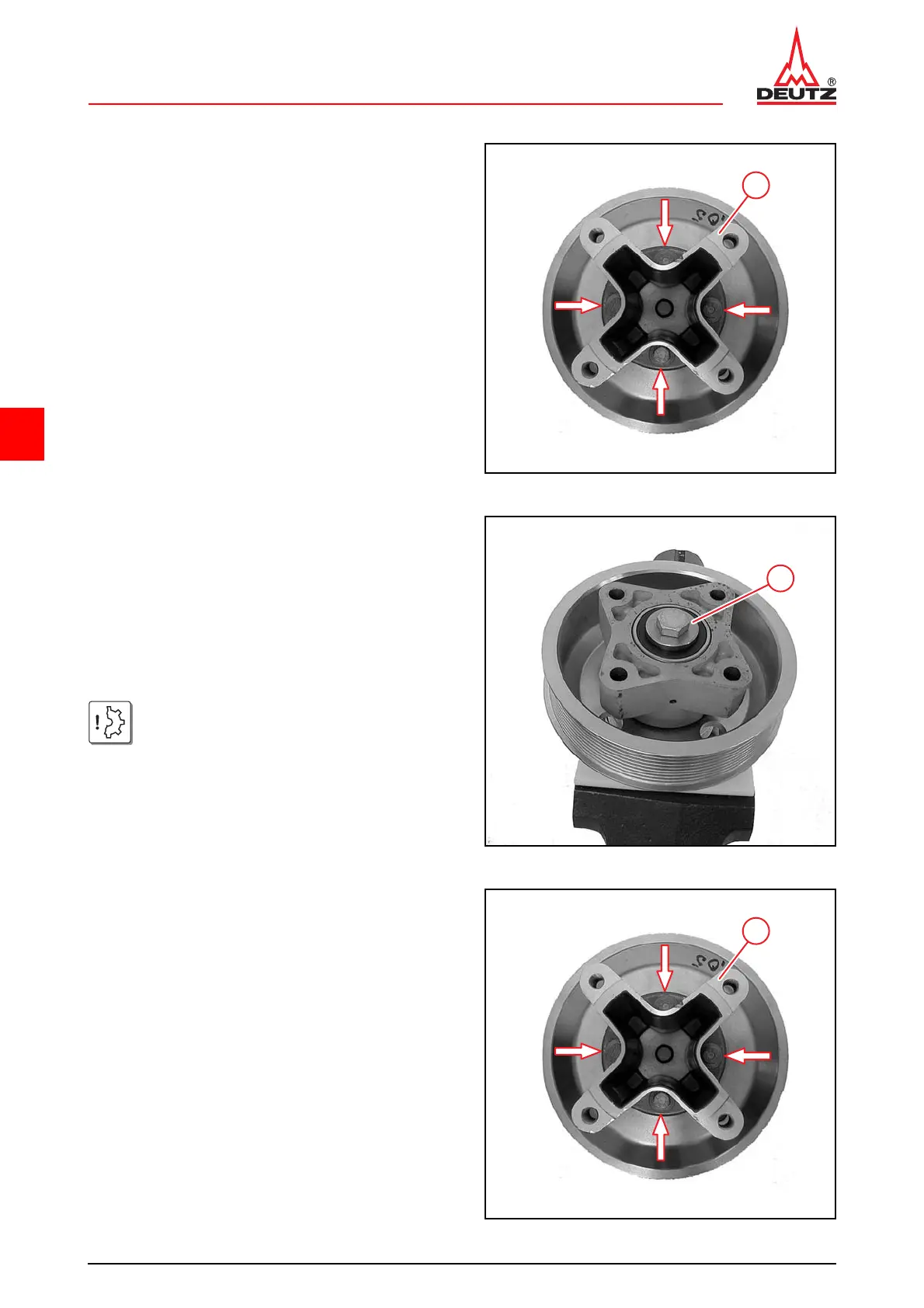

Fan drive
TCD 2013 2VW 39-02-03
● Mount adapter (1).
● Tighten screws (arrows).
 30 Nm
1
© 42874-0
● Clamp the fan drive in the vice.
● Install fan drive.
● Tighten screw (1).
– Stage 1:
 30 Nm
– Stage 2:
 90 °
Attention!
Screw has left-hand thread.
1
© 42875-0
● Unclamp the fan drive.
● Unscrew screws (arrows).
● Remove adapter (1).
● Install fan drive.
 W 39-02-01
1
© 42874-0
