Deutz TCD 2013 2V - Page 356

© 02/2010 OBJ_DOKU-21803-001.fm
1/6
6
Fan console
TCD 2013 2V W 39-04-03

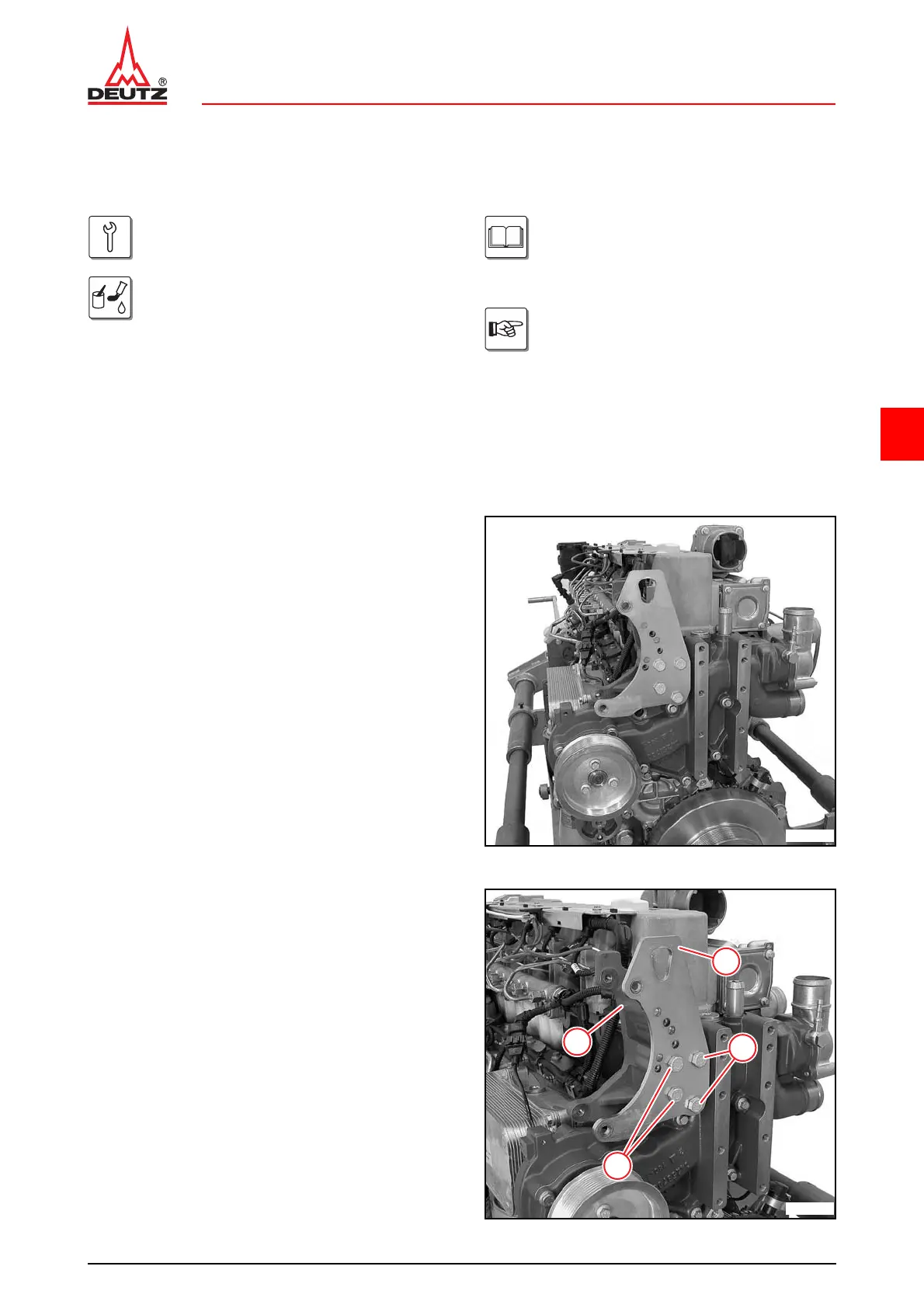

Removing and installing the fan console
(V-rib belt drive)
Standard tools
– Fitting compound
DEUTZ AP1908
– Packing compound
DEUTZ DW 74
– W 20-02-01
– W 39-01-01
– W 39-02-01
– W 44-02-01
Collect leaking operating substances in
suitable vessels and dispose of according
to regulations.
Removing the fan console
● Remove the fan drive.
 W 39-02-01
● Remove the belt tensioner.
 W 39-01-01
● Remove fuel supply pump.
 W 20-02-01
● Remove generator.
 W 44-02-01
X
X
X
© 42900-0
● Unscrew screws (1).
● Remove transport flange (2).
● Remove generator console (3).
1
3
1
2
© 42901-0
