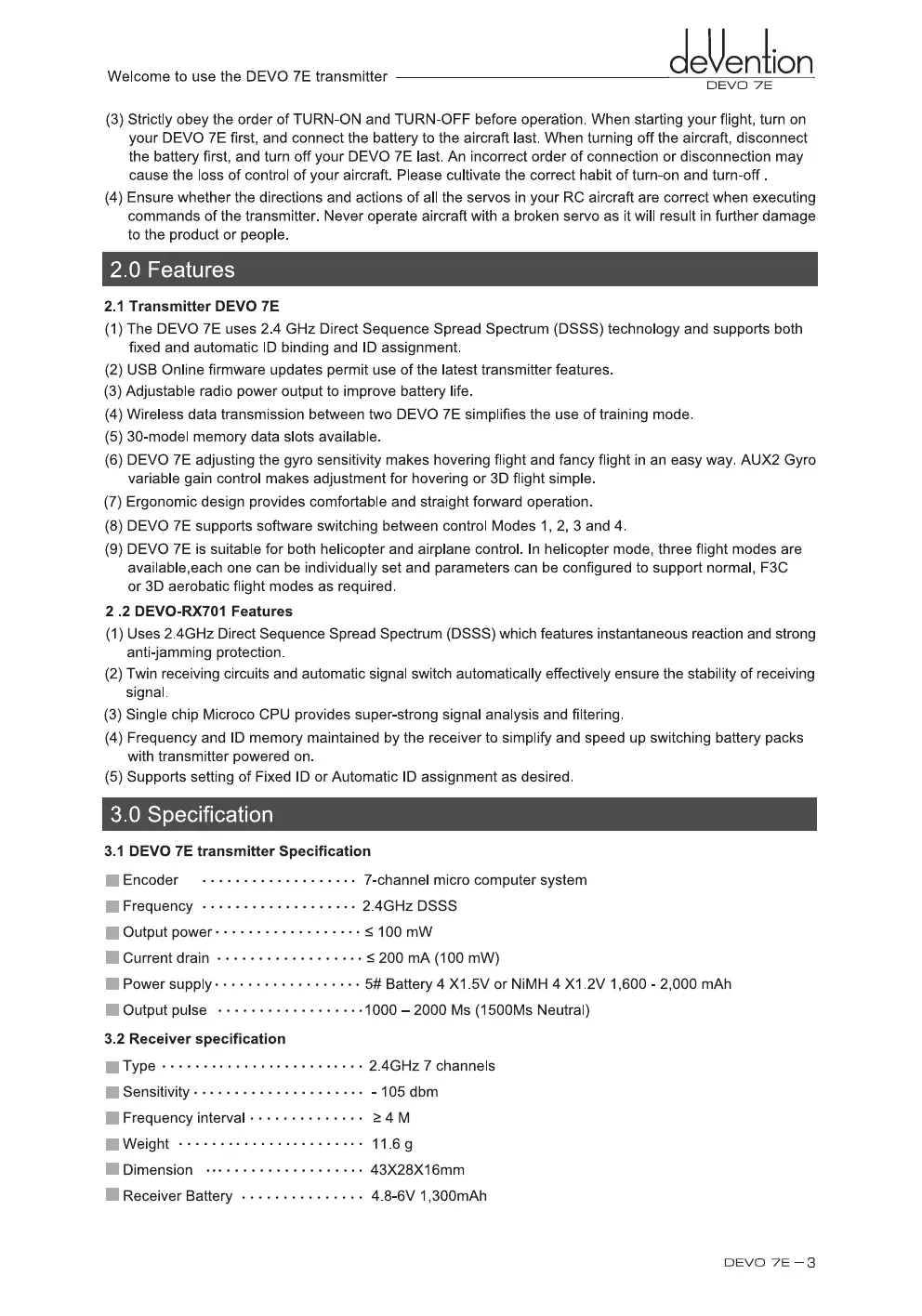

Welcome to use the DEVO 7E transmitter
cle(Lnlion
DEVO 7E
(3)
Strictly obey the order of TURN-ON and TURN-OFF before operation. When starting your flight, turn on
your DEVO 7E first, and connect the battery to the aircraft last. When turning off the aircraft, disconnect
the battery first, and turn off your DEVO 7E last. An incorrect order of connection or disconnection may
cause the loss of control of your aircraft. Please cultivate the correct habit of turn-on and turn-off .
(4)
Ensure whether the directions and actions of all the servos in your RC aircraft are correct when executing
commands of the transmitter. Never operate aircraft with a broken servo as it will result in further damage
to the product or people.
2.0 Features
2.1 Transmitter DEVO 7E
(1)
The DEVO 7E uses 2.4 GHz Direct Sequence Spread Spectrum (DSSS) technology and supports both
fixed and automatic ID binding and ID assignment.
(2)
USB Online firmware updates permit use of the latest transmitter features.
(3)
Adjustable radio power output to improve battery life.
(4)
Wireless data transmission between two DEVO 7E simplifies the use of training mode.
(5)
30-model memory data slots available.
(6)
DEVO 7E adjusting the gyro sensitivity makes hovering flight and fancy flight in an easy way. AUX2 Gyro
variable gain control makes adjustment for hovering or 3D flight simple.
(7)
Ergonomic design provides comfortable and straight forward operation.
(8)
DEVO 7E supports software switching between control Modes 1, 2, 3 and 4.
(9)
DEVO 7E is suitable for both helicopter and airplane control. In helicopter mode, three flight modes are
available,each one can be individually set and parameters can be configured to support normal, F3C
or 3D aerobatic flight modes as required.
2 .2 DEVO-RX701 Features
(1)
Uses 2.4GHz Direct Sequence Spread Spectrum (DSSS) which features instantaneous reaction and strong
anti-jamming protection.
(2)
Twin receiving circuits and automatic signal switch automatically effectively ensure the stability of receiving
signal.
(3)
Single chip Microco CPU provides super-strong signal analysis and filtering.
(4)
Frequency and ID memory maintained by the receiver to simplify and speed up switching battery packs
with transmitter powered on.
(5)
Supports setting of Fixed ID or Automatic ID assignment as desired.
3.0 Specification
3.1 DEVO 7E transmitter Specification
.I Encoder
•
Frequency
•
Output power
•
Current drain
•
Power supply
•
Output pulse
3.2 Receiver specification
7-channel micro computer system
DSSS
5 100 mW
5 200 mA (100 mW)
5# Battery 4 X1.5V or NiMH 4 X1.2V 1,600 - 2,000 mAh
1000 — 2000 Ms (1500Ms Neutral)
•
Type
2.4GHz 7 channels
•
Sensitivity
105 dbm
•
Frequency interval
a 4 M
•
Weight
11.6 g
•
Dimension
43X28X16mm
•
Receiver Battery
4.8-6V 1,300mAh
DEVO 7E -
3
