DEVO 7E
Welcome to use the DEVO 7E transmitter

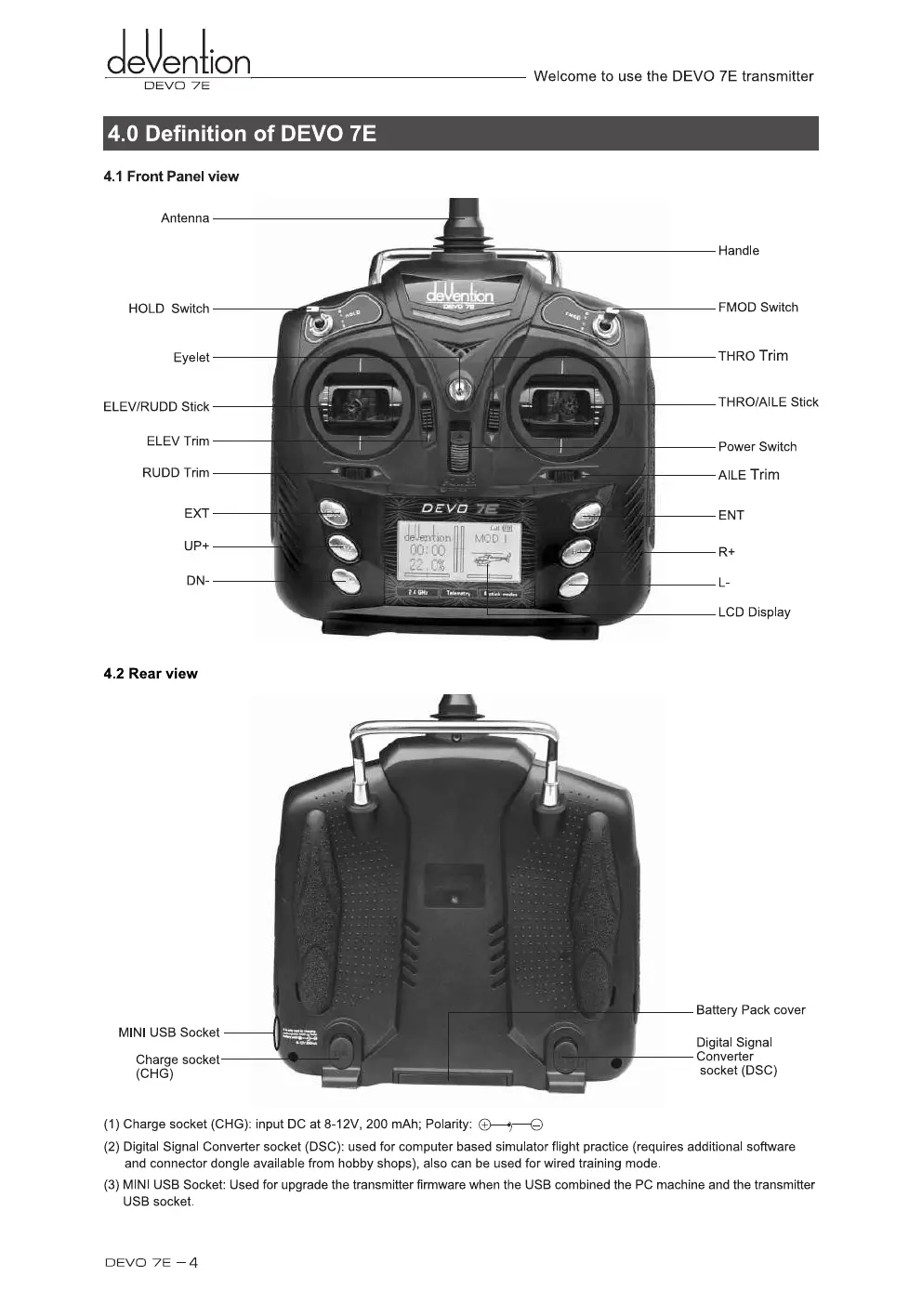

4.0 Definition of DEVO 7E
4.1 Front Panel view
Antenna
HOLD Switch
Eyelet
ELEV/RUDD Stick
ELEV Trim
RUDD Trim
EXT
UP+
DN-
Handle
FMOD Switch
THRO Trim
THRO/AILE Stick
Power Switch
AILE Trim
ENT
R+
L-
LCD Display
4.2 Rear view
MINI USB Socket
Charge socket
(CHG)
Battery Pack cover
Digital Signal
Converter
socket (DSC)
(1) Charge socket (CHG): input DC at 8-12V, 200 mAh; Polarity: (D)-0
(2) Digital Signal Converter socket (DSC): used for computer based simulator flight practice (requires additional software
and connector dongle available from hobby shops), also can be used for wired training mode.
(3) MINI USB Socket: Used for upgrade the transmitter firmware when the USB combined the PC machine and the transmitter
USB socket.
