The conduit should be flush with the floor surface -
countersink the conduit if necessary.
▪
Route the conduit to the connection box.
▪
The bending radius of the conduit must be min 50mm.
Follow the steps below to mount the thermostat:

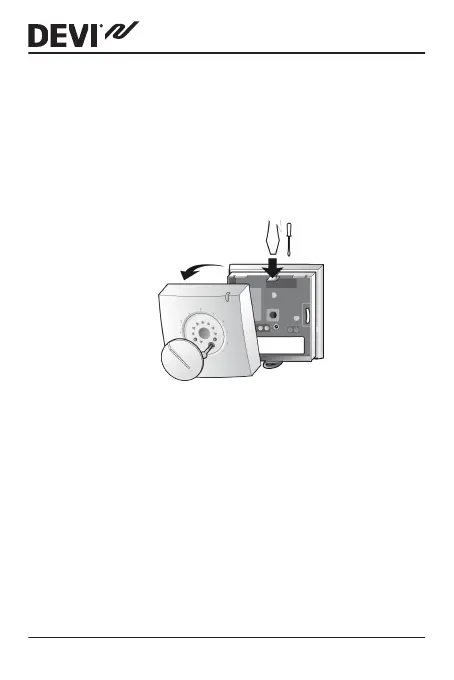

1. Open the thermostat:
▪
Remove the button to get access to the screw which
holds the front.
▪
Loosen the screw.
▪
Push down the release tab at the top of the thermo-
stat using a flat object while slowly pulling off the
front cover.
DEVIreg™ 132
8 Installation Guide
