Page 11SB-2-586-E

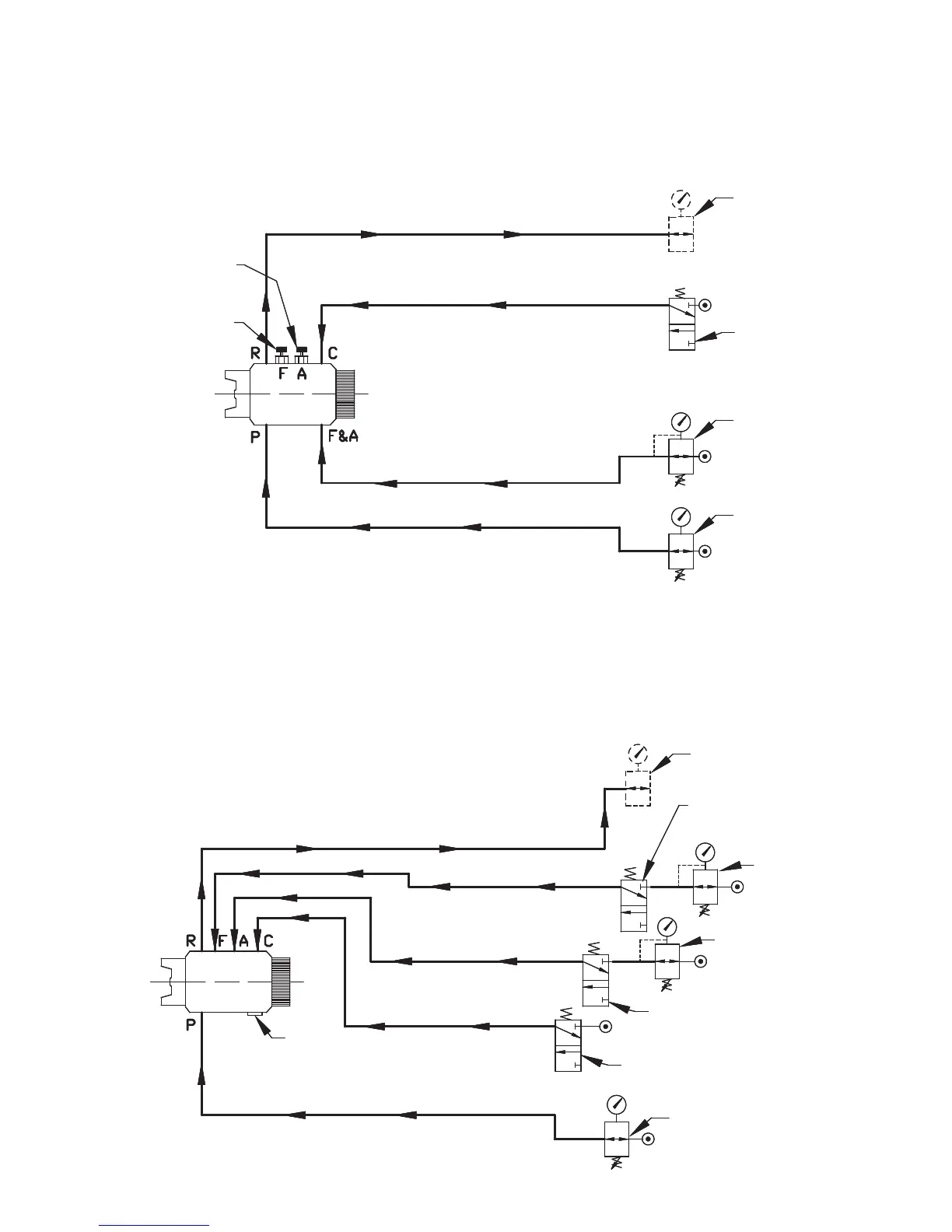

COMPACT-I AUTOMATIC GUN — TYPICAL AIR & FLUID DIAGRAMS
BACK PRESSURE
VALVE
COMBINED FAN & ATOMIZING AIR
(STANDARD GUN HOOK-UP)
SEPARATE FAN & ATOMIZING AIR
(OPTIONAL GUN HOOK-UP)
FLUID RETURN (IF USED)
CYLINDER AIR SUPPLY
CYLINDER AIR
VALVE (3 WAY)
AIR REGULATOR
(FAN & ATOMIZING
AIR COMBINED)
FLUID
REGULATOR
(COMBINED)
FAN & ATOMIZING AIR SUPPLY
FLUID SUPPLY
ATOMIZING
ADJUSTMENT
VALVE
FAN
ADJUSTMENT
VALVE
FLUID RETURN (IF USED)
CYLINDER AIR SUPPLY
FAN AIR SUPPLY
ATOMIZING AIR SUPPLY
FLUID SUPPLY
PLUG
FLUID REGULATOR
CYLINDER AIR VALVE (3 WAY)
ATOMIZING AIR VALVE (3 WAY)
ATOMIZING AIR
REGULATOR
FAN AIR
REGULATOR
FAN AIR VALVE (3 WAY)
BACK PRESSURE VALVE
