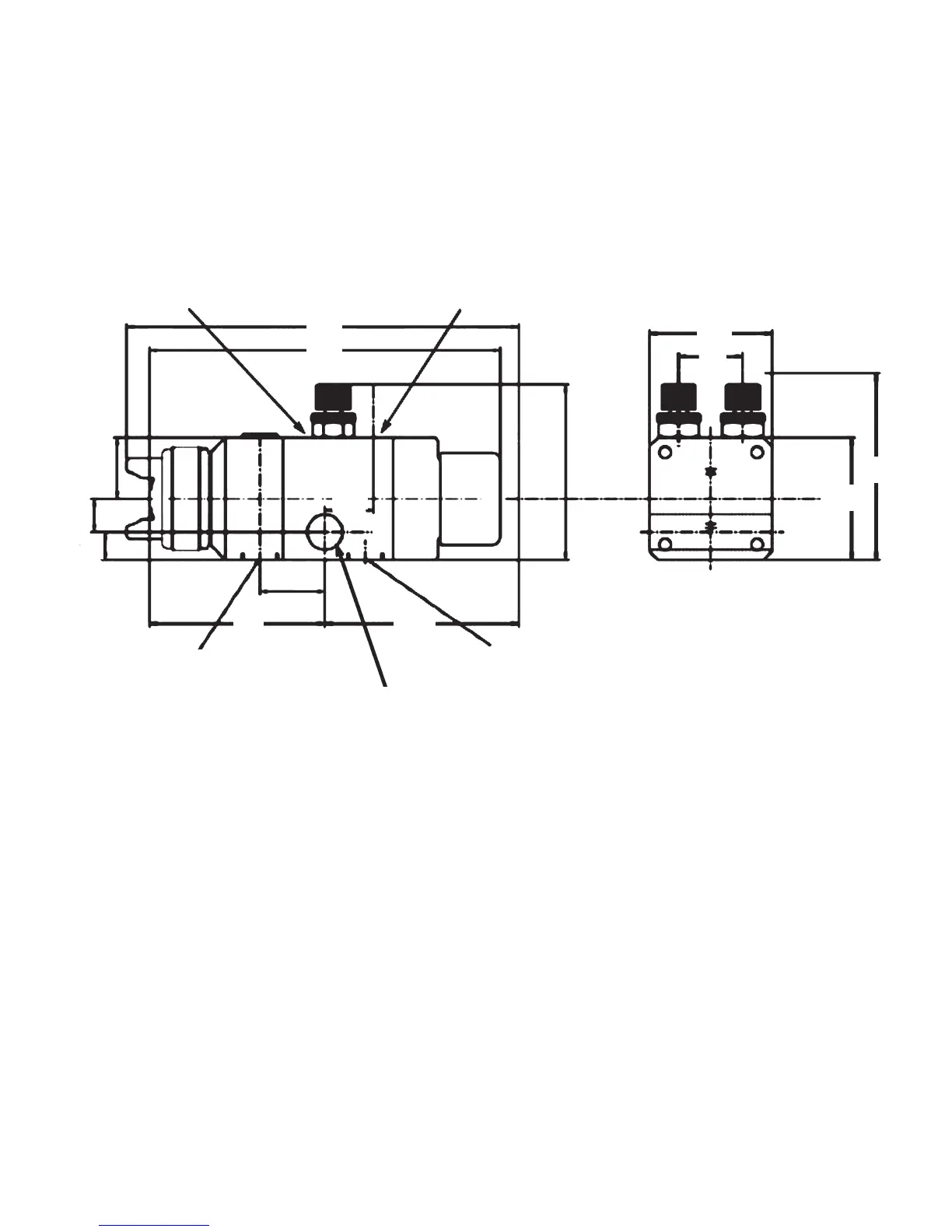

INSTALLATION DIMENSIONS for COMPACT-I AUTOMATIC SPRAY GUN
DIMENSIONS IN MM
(MULTIPLY BY .03937 TO OBTAIN INCHES)
BSPP = BRITISH STRAIGHT PIPE PARALLEL
M12 (2)
1/8" BSPP (m)
Cylinder Air
Inlet
126
141
17.5
69.563
23.4
44
23
44
67
10
12
22
1/4" BSPP (m) Fluid Inlet
12.8mm
o
/ Mounting Hole
1/4" BSPP (m) Fan/Atomizing Air Inlet
