DeVilbiss FLG3 - Parts List; Service Kit and Fluid Tip Sizes

Page 4 SB-2-630
PARTS LIST
Ref. Replacement Ind. Parts
No. Part No. Description Required
1 FLG-301 Retaining Ring 1
2 See Chart 1 Air Cap 1
3- - - Fluid Tip 1
*4 FLG-304-K5 Fluid Tip Seal (Kit of 5) 1
5 See Chart 2 Fluid Tip & Seal Kit 1
6 FLG-305 Baffle 1
7 FLG-308 Spreader Adjustment Valve 1
*8 - - - Seal 1
9- - - Bushing 1
10 FLG-483 Seal, Bushing, Spring, & Knob Kit 1
11 FLG-311 Fluid Needle 1
*12 - - - Needle Spring 1
13 - - - Needle Adjusting Knob 1
*14 - - - Air Valve 1
*15 - - - Air Valve Spring 1
16 - - - Air Valve Cap 1
17 FLG-487 Air Valve Kit 1
18 FLG-322 Air Inlet Fitting 1
*19 - - - Trigger Screw 1
20 - - - Trigger 1
*21 - - - Trigger Stud 1
22 FLG-485 Trigger, Stud & Screw Kit 1
*23 - - - Needle Packing 1
24 - - - Needle Packing Nut 1
25 FLG-484 Needle Packing & Nut Kit
(3 Packings & 1 Nut)
26 FLG-330 Fluid Inlet Fitting 1
27 - - - Splash Shield 1
28 - - - Lid Gasket 1
29 FLG-489 Gasket & Splash Shield Kit Cam 1
* A quantity of necessary parts is included in Repair Kit FLG-488
(Computer No. 690031) for complete gun repair and should be
kept on hand for service convenience.

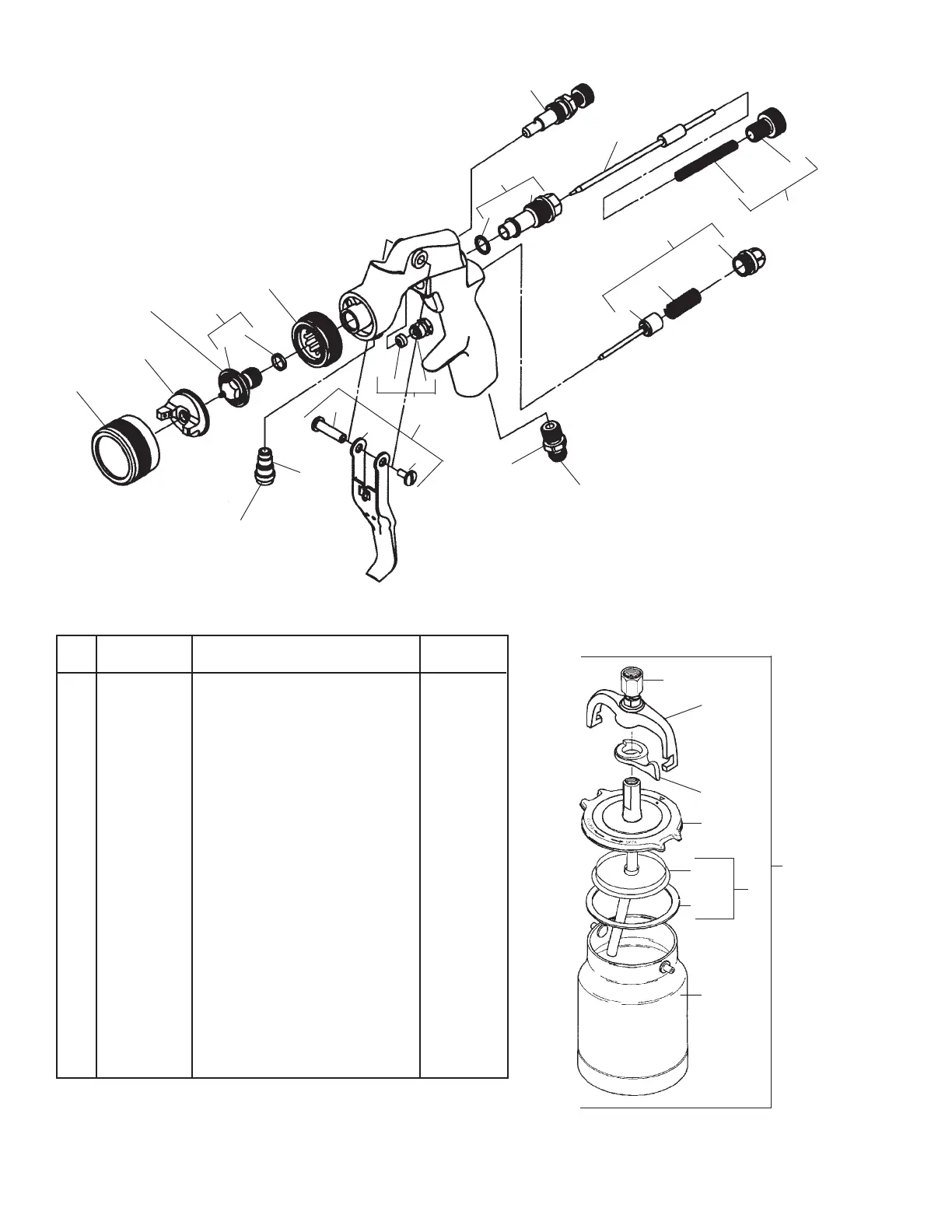

Figure 4 Gun Drawing
1
2
3
4
6
5
7
8
9
11
12
13
18
24
22
25
19
20
21
26
10
17
16
15
14
10
23
Fluid Tip
(Torque to
15-20 ft-lbs.)
Air Inlet Fitting 1/4" NPS(M)
(Torque to 15 ft-lbs.)
Use medium strength thread sealant (i.e.
Devcon #2242 Blue, or equal) on threads.
Figure 5 - Cup Drawing
Yoke
Cam
Cup
Lid
27
28
29
Cup
Assembly
Nut
Fluid Inlet Fitting 3/8" NPS(M)
(Torque to 15 ft-lbs.)
Use medium strength thread sealant (i.e.
Devcon #2242 Blue, or equal) on threads.
