FIGURES, DIAGRAMS, AND VIEWS

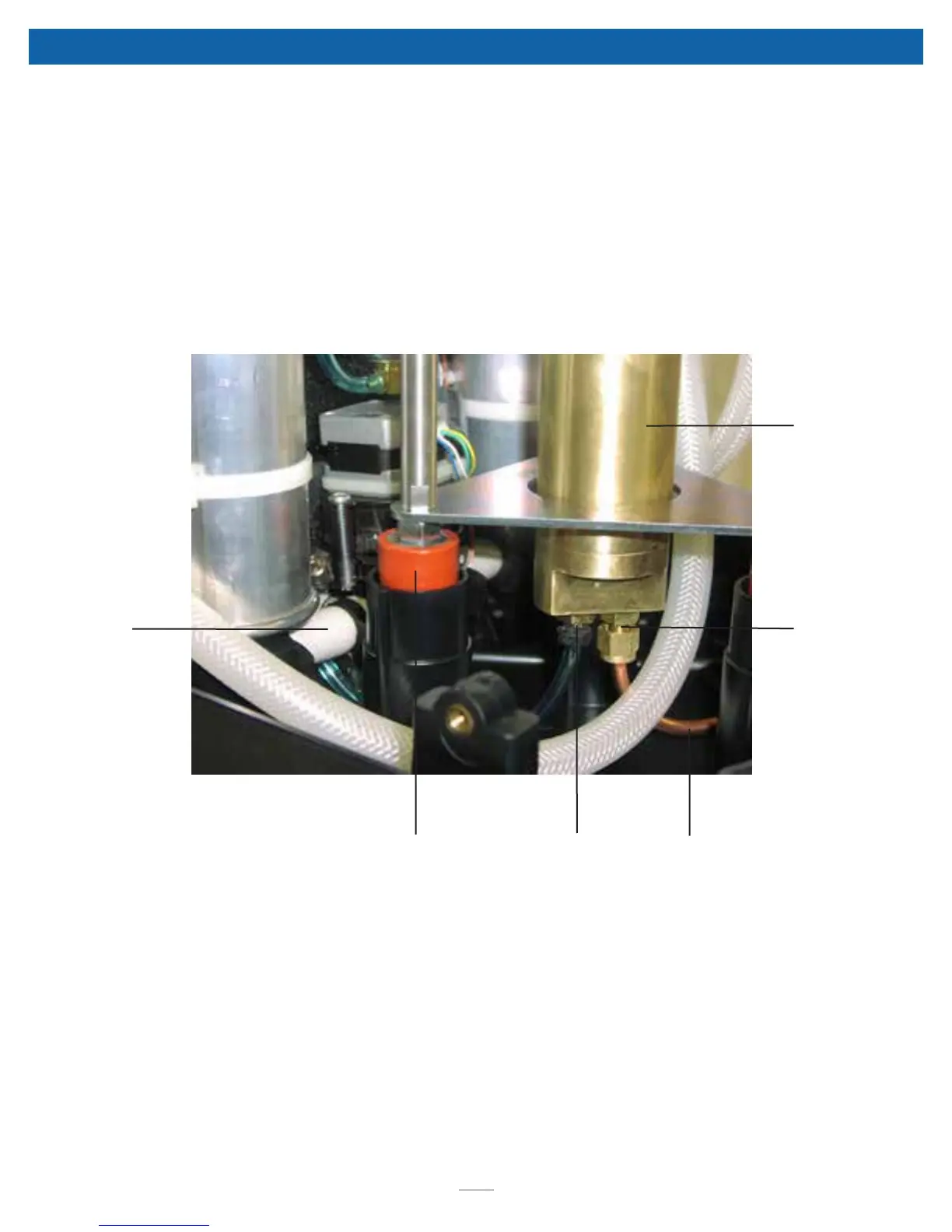

FIGURE 16 - INTERIOR, BOTTOM OF INTENSIFIER
Tubing 1/2” ID
(Silicone)
O2 Outlet to 2nd
Stage
1st Stage
Cylinder
Intensifier
Mount
O2 Inlet to
Intensifier
Inter-Stage
Tube
