FIGURES, DIAGRAMS, AND VIEWS

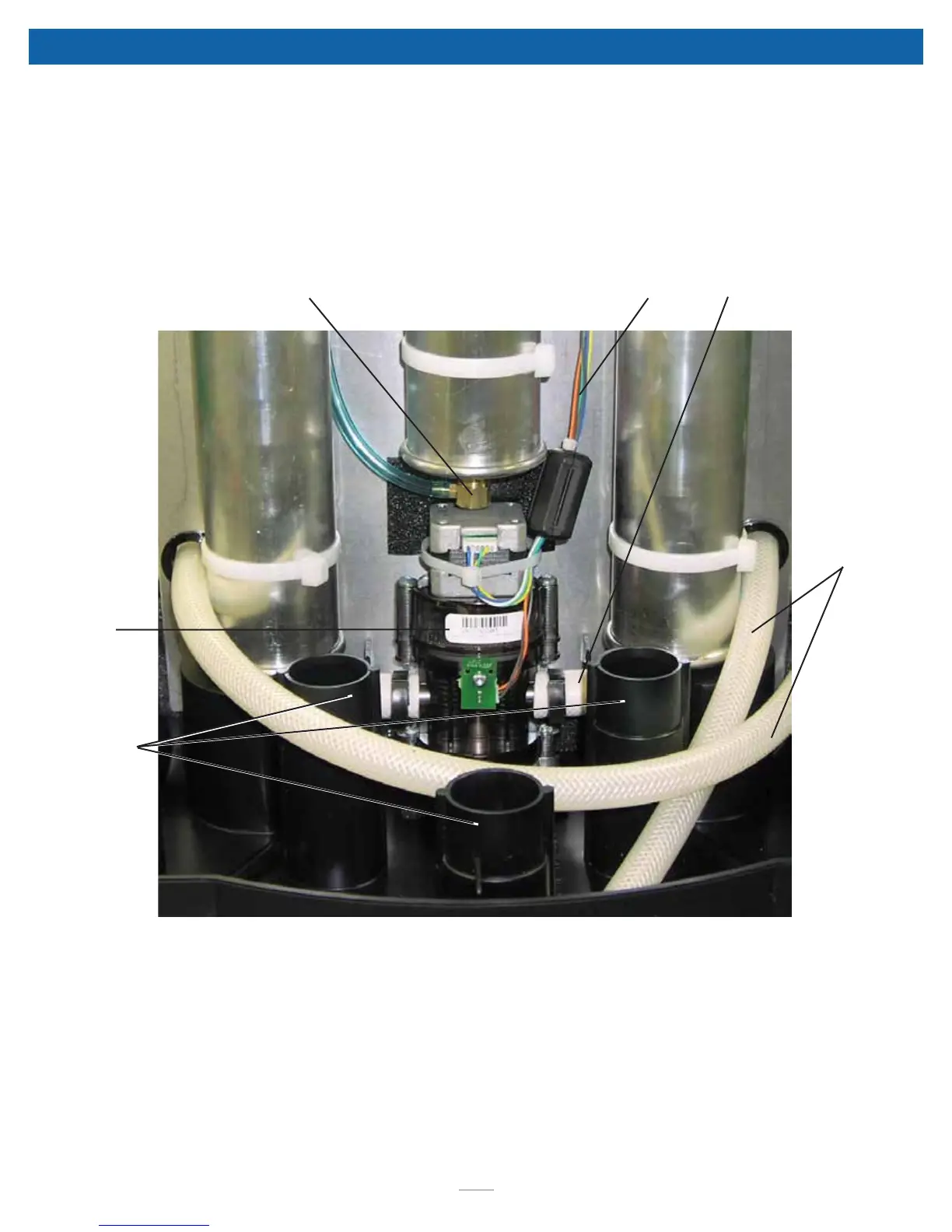

FIGURE 17 - INTERIOR, FRONT LOWER VIEW
INTENSIFIER REMOVED
Rotary
Valve
O2 Accumulator Tank
Outlet Fitting
Rotary Valve
Wire Harness
Tubing 1/2” ID
(Silicone)
Tubing 3/8” ID
(Silicone)
Intensifier
Mounting
Supports
