Security in the dLAN 20
devolo dLAN 200 AVmini

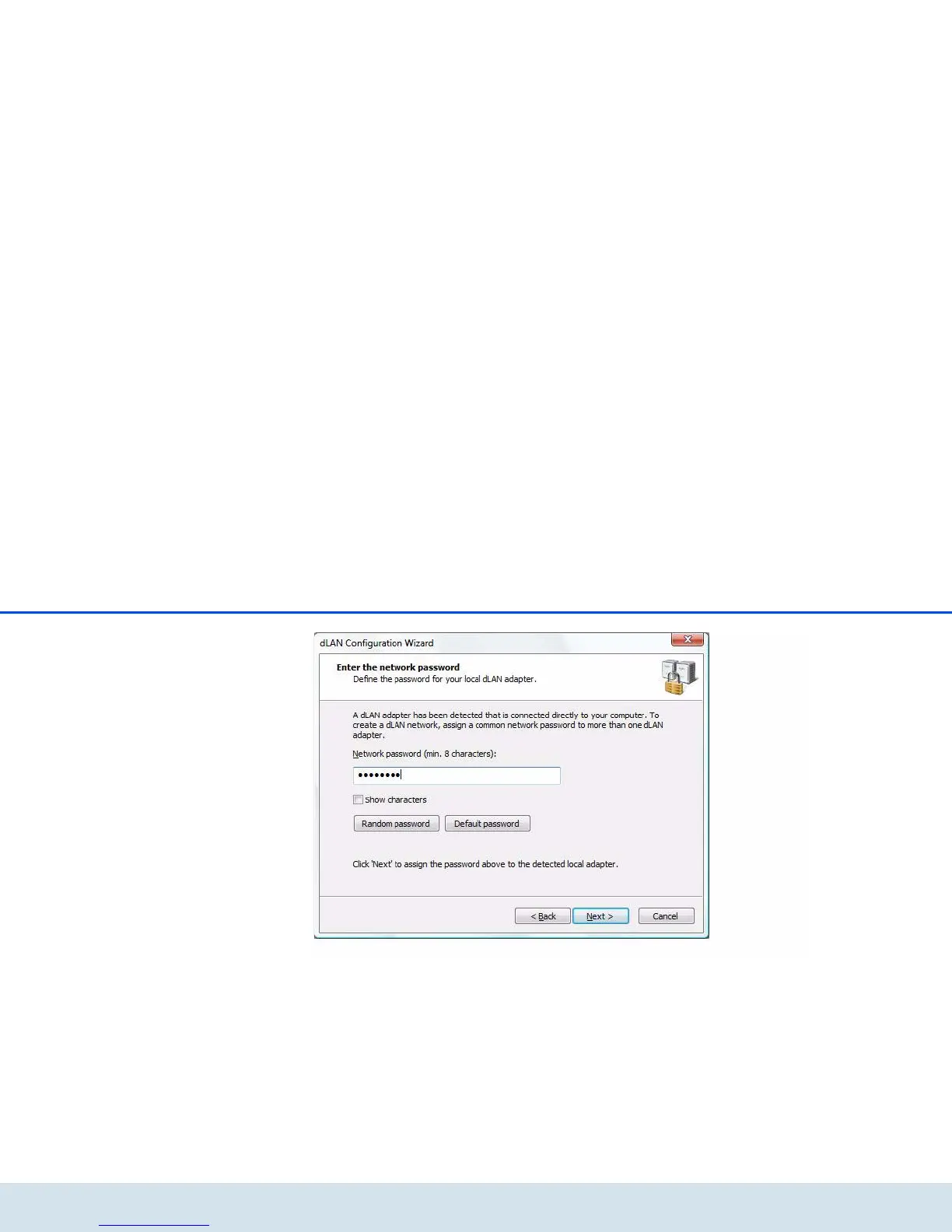

You can choose between your own password, a ran-
dom password and the default password. To define
your own password with a length of at least eight cha-
racters, enter this into the Network password (min. 8
characters) text field. Alternatively, you can have a ran-
domly selected, highly secure password assigned using
the Random password button. Pressing the Default
password key resets the password of the dLAN adap-
ter to the factory setting. Normally, the display of the
password is hidden for security reasons. If you enable
the option Show characters, the current password is
displayed in legible form in the text field.
The factory default password is HomePlugAV. Assi-
gning a specific password to a single adapter will ex-
clude it from the remaining dLAN network.
Configuring additional dLAN adapters (fig. 8)
After setting up the local dLAN adapter, you can, if you
want, assign the selected dLAN password to other
fig. 7

Devolo dLAN 200 AVmini Specifications

General

Modulation	BPSK, OFDM, QPSK
Ethernet LAN	Yes
Maximum data transfer rate	200 Mbit/s
Maximum operating distance	300 m
Supported network protocols	TCP/IP
Connectivity technology	Wired
Ports quantity	1
Power supply type	AC
Power requirements	100-240 V, 50/60 Hz
Compliance industry standards	IEEE 802.3, IEEE 802.3x, IEEE 802.3u
Compatible operating systems	Windows XP 32bit, Windows Vista 32/64bit, Windows 7 32/64bit, Linux, Mac OS X & TCP / IP
Power consumption (typical)	2.9 W
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Internal	No
Certification	EN 55022 EN 50412 EN 60950
Product color	White

Weight and Dimensions

Depth	29 mm
Width	58 mm
Height	90 mm
Weight	103 g
Package weight	510 g
