42
- Risk of injury when changing the blade;
- Risk of squeezing fingers when opening the guards;
- Health hazards caused by breathing dust developed when sawing
wood, especially oak, beech and MDF.
The following factors are of influence to noise production:
- The material to be cut;
- The type of saw blade;
- The feed force.
The following factors increase the risk of breathing problems:
- No dust extractor connected when sawing wood;
- Insufficient dust extraction caused by uncleaned exhaust filters
- Worn saw blade;
- Workpiece not exactly guided.

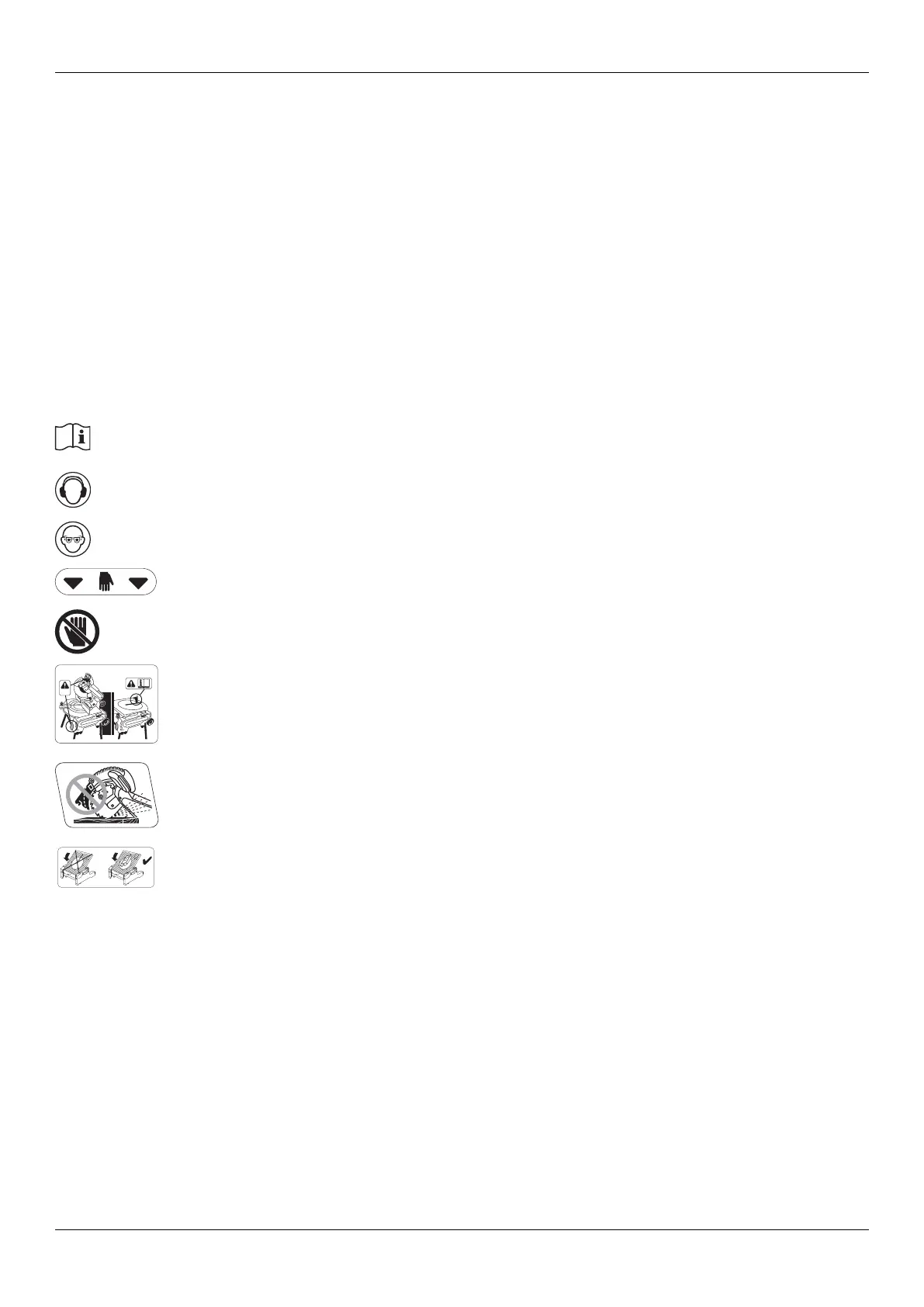

Markings on Tool
The following pictograms are shown on the tool:
Read instruction manual before use.
Wear ear protection.
Wear eye protection.
Carrying Point
Hands Away
When using the machine in the mitre saw mode, make
sure to operate the trigger switch in the handle when
switching ON and OFF. Do not operate the switchbox
in this mode. The ON/OFF switch located on the
machine frame is foreseen for table saw mode only.
When using the machine in the mitre saw mode, make
sure the riving knife is secured in its rest position.
Never use as mitre saw when the guard is not in place.
DATE CODE POSITION (FIG. A1)
The Date Code (143), which also includes the year of manufacture, is printed
into the housing.
Example:
2013 XX XX
Year of Manufacture
Package contents
The package contains:
1 Partly assembled machine
1 Box containing:
1 Top guard for bench saw position
1 Under-table guard for mitre saw position
4 Legs
2 Wheels
4 Feet
1 Parallel fence
1 Material clamp
1 Instruction manual
1 Exploded drawing
• Check for damage to the tool, parts or accessories which may have
occurred during transport.
• Take the time to thoroughly read and understand this manual prior to
operation.
Description (fi g. A1 - A11)
A1
1 On/off switch (saw bench mode)
2 Table release lever
3 Rotating table clamp
4 Mitre saw table
5 Rotating table
6 Fence right-hand side
7 Fence left-hand side
8 Moveable lower blade guard
9 Guard release lever
10 Operating handle
142 Circuit breaker reset button
143 Date code
A2
10 Operating handle
11 Trigger switch (mitre saw mode)
12 Fixed upper blade guard
13 Dust extraction adapter
14 Wheel
15 Leg
16 Foot
17 Bevel clamp knob
A3
17 Bevel clamp knob
18 Height adjuster
19 Saw bench table
20 Riving knife
21 Upper blade guard
22 Parallel fence
23 Push stick
Optional accessories
A4
For use in mitre saw mode:
30 Fence insert (DE7120)
A5
31 Adjustable stand 760 mm (max. height) (DE3474)
32 Support guide rails 1,000 mm (DE3494)
33 Support guide rails 500 mm (DE3491)
34 Inclinable support (DE3495)
35 Swivelling stop (DE3462)
36 Length stop for short workpieces (to be used with guide rails [33])
(DE3460)
37 Support with removable stop (DE3495)
38 Support with stop removed (DE3495)
A6
40 Roller support table (DE3497)
ENGLISH
