12
English
CAUTION: Use
SAE 5W-40
full syntheticoil.

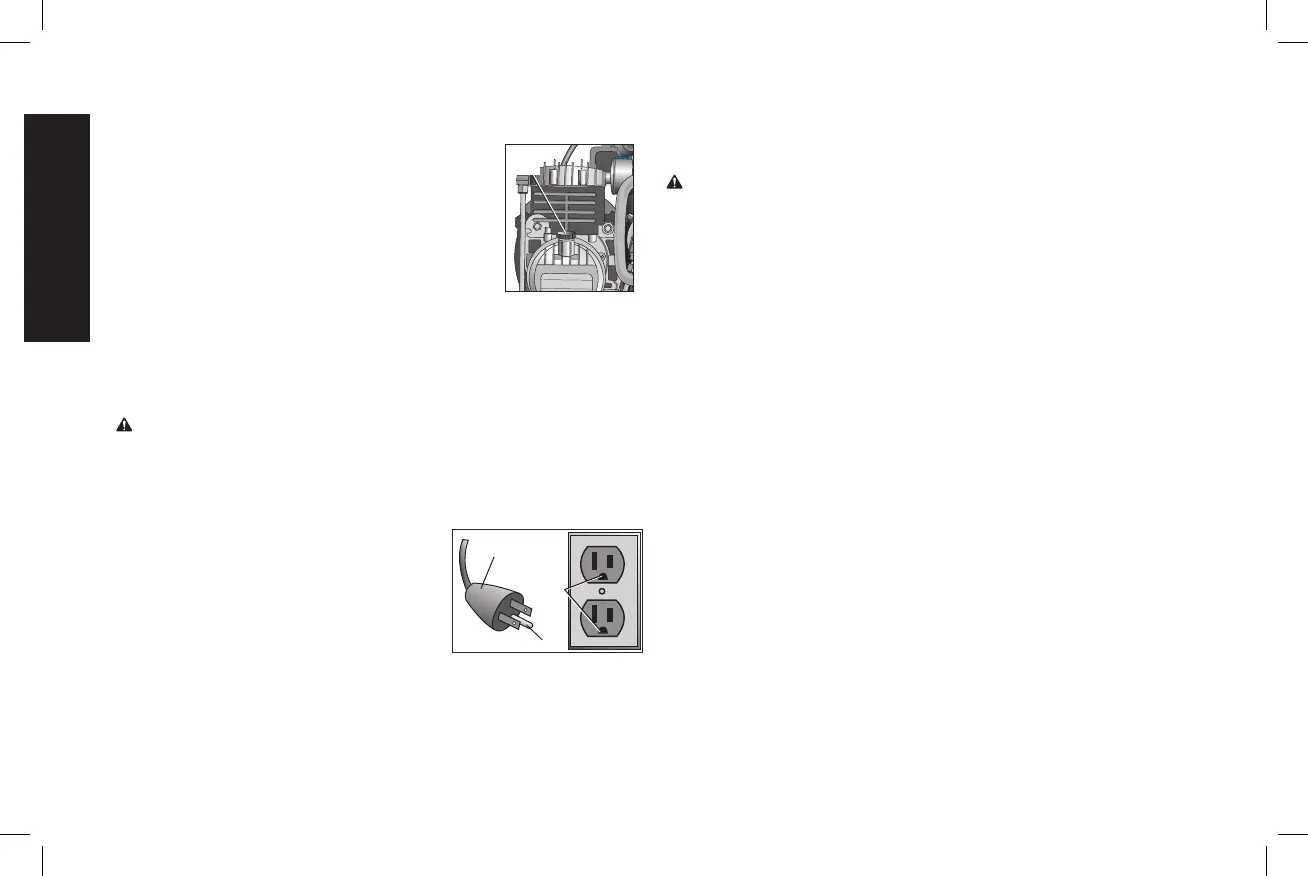

1. Place unit on a level surface.
K
2. Remove the shipping plug and install
thedipstick.
3. Remove the dipstick (K) and check the
oil level. Oil should not exceed top raised
line on dipstick. If oil is below lower mark
see Checking Oil under Compressor
Pump Oil under Maintenance. NOTE: See
Specifications for pump oilcapacity.
CAUTION: Risk of unsafe operation. Overlling with oil will cause
premature compressor failure. Do notoverll.
4. Replacedipstick.
Grounding Instructions
WARNING: Risk of electrical shock. In the event of a short circuit,
grounding reduces the risk of shock by providing an escape wire for
the electric current. This air compressor must be properlygrounded.
The portable air compressor is equipped with a cord having a
grounding wire with an appropriate grounding plug.
1. The cord set and plug (O) with this unit
P
O
Q
contains a grounding pin (P). This plug
MUST be used with a grounded
outlet(Q).
IMPORTANT: The outlet being used must
be installed and grounded in accordance
with all local codes and ordinances.
2. Ensure the outlet being used has the same conguration as the
grounded plug. DO NOT USE ANADAPTER.
3. Inspect the plug and cord before each use. Do not use if there
are signs ofdamage.
4. If these grounding instructions are not completely understood, or
if in doubt as to whether the compressor is properly grounded,
have the installation checked by a qualiedelectrician.
DANGER: Risk of electrical shock. IMPROPER GROUNDING
CAN RESULT IN ELECTRICALSHOCK.
Do not modify the plug provided. If it does not fit the available
outlet, a correct outlet should be installed by a qualified electrician.
Repairs to the cord set or plug MUST be made by a
qualified electrician.
Extension Cords
Using extension cords is not recommended. The use of extension
cords will cause voltage to drop resulting in power loss to the motor
and overheating.
Instead of using an extension cord, increase the working reach of
the air hose by attaching another length of hose to its end. Attach
additional lengths of hose as needed.
If an extension cord must be used, be sure it is:
a 3-wire extension cord that has a 3-blade grounding plug, and a
3-slot receptacle that will accept the plug on the product
in good condition
no longer than 50 feet (15,2 m)
12 gauge (AWG) or larger. (Wire size increases as gauge
number decreases. 10 AWG and 8 AWG may also be used. DO
NOT USE 14 OR 16 AWG.)
Voltage and Circuit Protection
Refer to the Voltage and Minimum Branch Circuit Requirements
under Specifications.
