Sprocket and Sprocket Cover (Fig. A, D, G)
CAUTION: Sharp chain. Always wear protective gloves
when handling the chain. The chain is sharp and can cut you
when it is notrunning.
WARNING: Sharp moving chain. To prevent accidental
operation, ensure the battery is removed from the tool before
performing the following operations. Failure to do this could
result in serious personalinjury.
1. Place the saw on a flat, firmsurface.
2. Remove sprocket cover
6
as described in Installing the
Guide Bar and Saw Chainsection.
3. Wearing protective gloves, use a clean, soft bristle brush
to wipe away any saw dust, sticks, vines or other debris that
may have collected inside the sprocket cover
6
and around
the saw chain
5
or sprocket
18
.
4. Rotate the chain tension screw
9
using the flat
screwdriver end of thewrench
17
. Turning the screw
counterclockwise allows the guide bar
4
to recede and
reduces the tension on the chain so that it may beremoved.
5. Wearing protective gloves, grasp the saw chain and
guidebar and lift them away from the tool.
6. Wearing protective gloves, use a clean, soft bristle brush
to wipe away any saw dust or other debris that may have
collected on the guide bar
4
and around the saw chain
5
.
Saw Chain and Guide Bar
After every few hours of use, remove the sprocket cover,
guide bar and chain and clean thoroughly using a soft
bristle brush. Ensure oiling hole on bar is clear of debris.
When replacing dull chains with sharp chains it is good
practice to flip the chain bar from bottom totop.
Cleaning
WARNING: Blo
w dirt and dust out of all air vents with
clean, dry air at least once a week. To minimize the risk of eye
injury, always wear ANSI Z87.1 approved eye protection when
perform
ing thisprocedure.
WARNING:
Never use solvents or other harsh chemicals
for cleaning the non‑metallic parts of the tool. These chemicals
may weaken the plastic materials used in these parts. Use a
cloth dampened only with water and mild soap. Never let any
liquid get inside the tool; never immerse any part of the tool
into aliquid.
MAINTENANCE
WARNING: To reduce the risk of serious personal
injury, turn unit off , set the brake and remove the
battery pack before making any adjustments or
removing/installing attachments or accessories. An
accidental start‑up can causeinjury.
Your
DeWALT power tool has been designed to operate
over a long period of time with a minimum of maintenance.
Continuous satisfactory operation depends upon proper
tool care and regularcleaning.
1. Always start a cut with the saw chain running at
fullspeed.
2. Place the bottom spike
22
of the chainsaw behind the
area of the initial cut as shownbelow.
3. Turn the chainsaw on then rotate the saw chain and bar
down into the tree, using the spike as ahinge.
4. Once the chainsaw gets to a 45° angle, level the
chainsaw again and repeat steps until you cut fullythrough.
5. When the tree is supported along its entire length, make
a cut from the top (overbuck), but avoid cutting the earth as
this will dull your sawquickly.

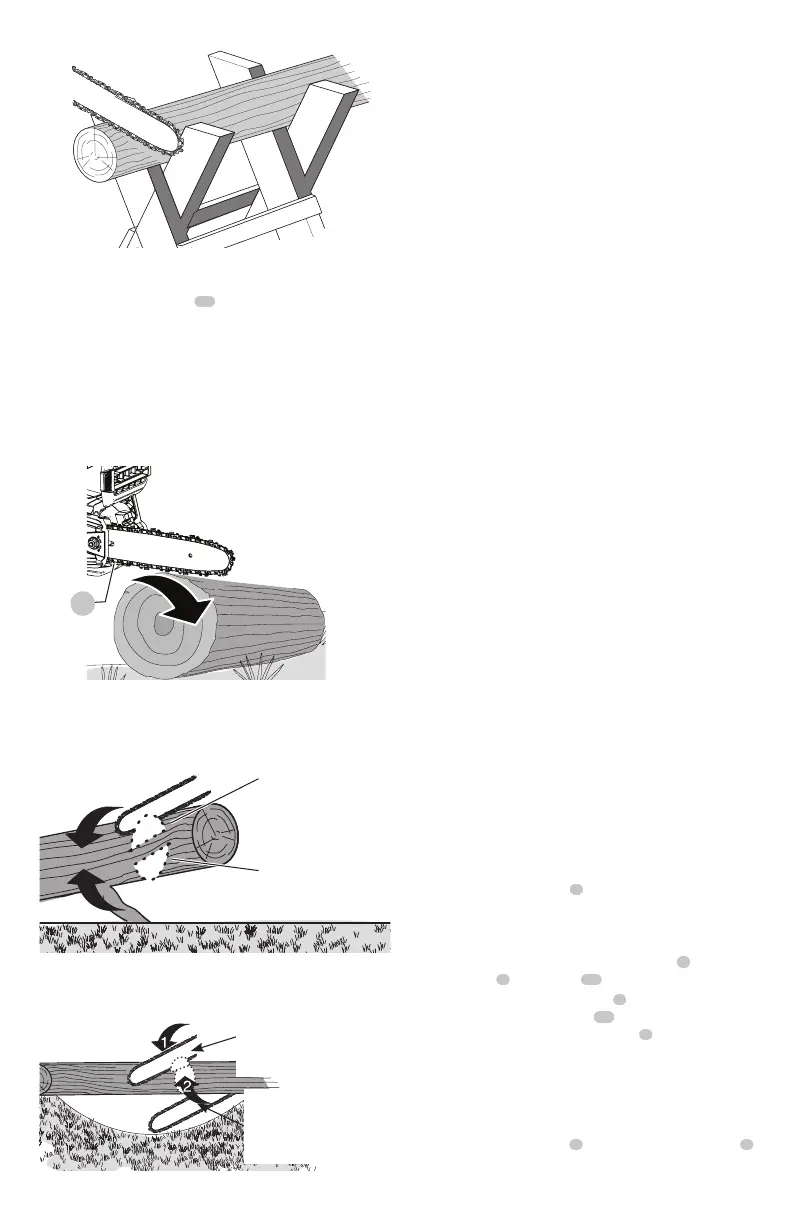

CUT FROM TOP (OVERBUCK)
AVOID CUTTING EARTH
22
• When supported at one end first, cut 1/3 the diameter from
the underside (underbuck). Then make the finishing cut by
overbucking to meet the firstcut as shownbelow.
1
1
2
2nd CUT OVERBUCK
(2/3 DIAMETER)
TO MEET 1st CUT
(TO AVOID PINCHING)
1st CUT UNDERBUCK
(1/3 DIAMETER)
AVOID SPLINTERING
• When supported at bothends. First, cut 1/3 down from the
top overbuck. Then make the finished cut by underbucking the
lower 2/3 to meet the firstcut as shownbelow.
2nd CUT UNDERBUCK
(2/3 DIAMETER)
TO MEET 1st CUT
(TO AVOID PINCHING)
1st CUT OVERBUCK
(1/3 DIAMETER)
TO AVOID SPLINTERING
• When on a slope always stand on the uphill side of the
log. When “cutting through”, to maintain complete control
reduce the cutting pressure near the end of the cut without
relaxing your grip on the chain saw handles. Don’t let the
chain contact the ground. After completing the cut, wait
for the saw chain to stop before you move the chain saw.
Always stop the motor before moving from cut tocut.
