DeWalt DCF6202 - Using the Attachment; Inserting Collated Screw Strips; Setting Screw Depth; Driving Screws

5
ENGLISH
15
15
7
Fig. I
Removable Shoe (Fig. I, J)
The shoe helps to improve surface grip when setting a
screw and prevents marring of the drywall. However, the
shoe can be removed to allow closer access tocorners.
1. To remove shoe
7
on front of the unit, remove the
two screws
15
using a T10 Torx. Pull shoe straight off
to remove.
2. To reinstall, push shoe onto advancing mechanism until
screw holes line up. Reinstallscrews.
To Install the Advancing Mechanism
1. With the collated magazine attachment removed from
screwgun, align the tabs
11
on the shoe with the
slots
12
in the collatedhousing.
2. Push in slightly, then align the spring
13
with the
pocket in the advancingmechanism.
3. Push advancing mechanism in until you hear the “click”
of the service button. The release lever
10
should click
into place in its slot. You may need to pull down on the
lever to help it if it does not click inplace.
NOTE: The release lever
10
should be in the down
position (as shown in FigureH) before the advancing
mechanism is installed. If in the up position, the
advancing mechanism will be locked inplace.
4. Cycle the advancing mechanism several times by hand
to ensure proper function before installing it onto your
screwgun foruse.
For best performance regularly clean magazine by:
1. Remove advancing mechanism from collated magazine
(refer to Removing and Installing the Advancing
Mechanisminstructions).
2. Using compressed air and a clean cloth, clean all visible
areas and cavities from dust. Wipe clean as needed on
both the advancing mechanism and collatedhousing.
3. Reassemble and continueuse.

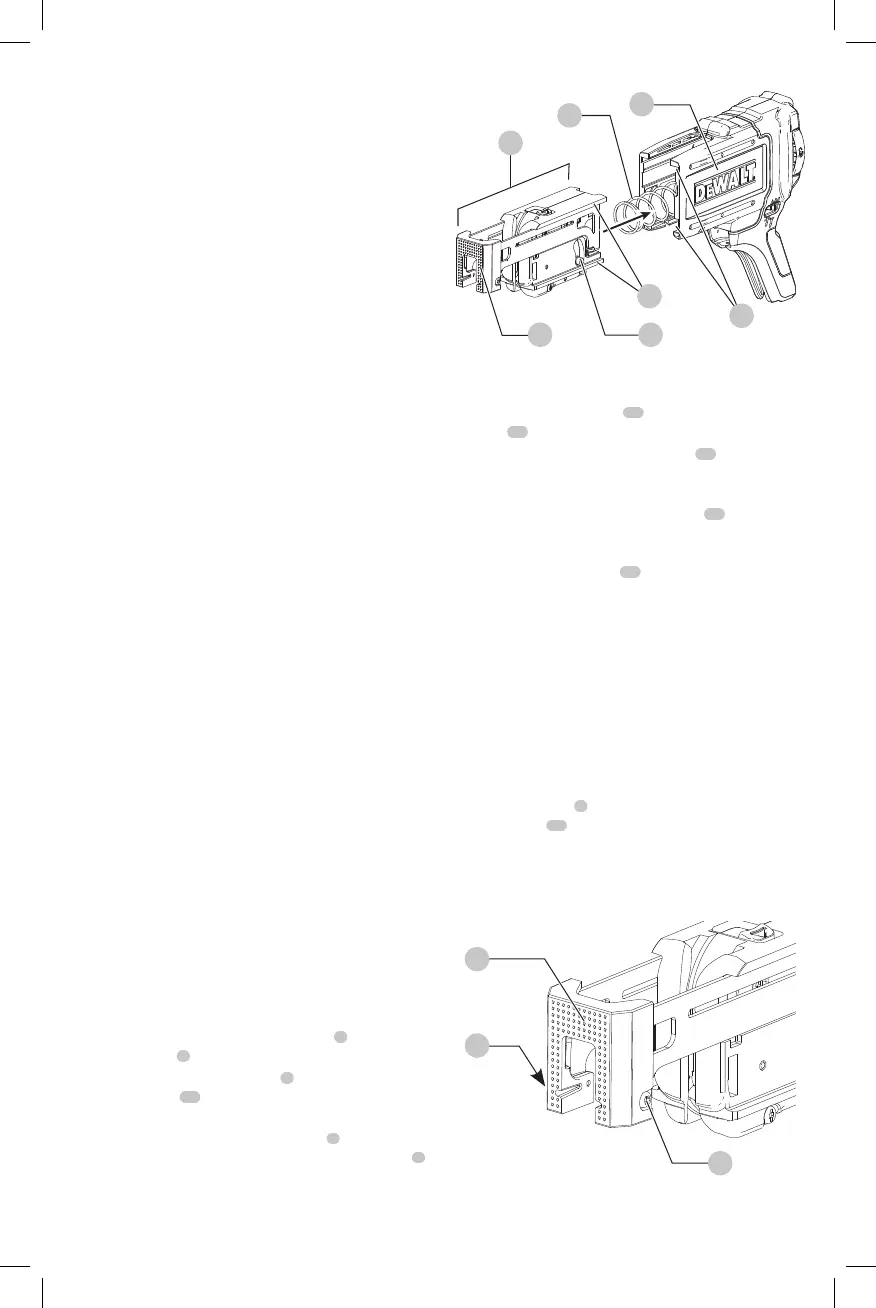

Removing and Installing the Advancing
Mechanism (Fig. H)

CAUTION: Wear eye protection. The advancing
mechanism is spring loaded. Two hands must be used
to remove the advancing mechanism. The spring may
eject from themechanism.
To Remove Advancing Mechanism
1. Remove collated magazine attachment
fromscrewdriver.
2. Slightly depress advancing mechanism
5
by pushing
on the shoe
7
with onehand.
3. Keeping pressure on the shoe
7
pull down on the
release lever
10
so that the pins rotate out of the
guidetrack.
4. Slowly release pressure from the shoe
7
until the
advancing mechanism is out of the collatedhousing
6
.
Cleaning

WARNING: Blow dirt and dust out of all air vents with
clean, dry air at least once a week. To minimize the risk
of eye injury, always wear ANSI Z87.1 approved eye
protection when performingthisprocedure.

WARNING: Never use solvents or other harsh
chemicals for cleaning the non-metallic parts of
the tool. These chemicals may weaken the plastic
materials used in these parts. Use a cloth dampened
only with water and mild soap. Never let any liquid
get inside the tool; never immerse any part of the tool
into aliquid.
MAINTENANCE

WARNING: To reduce the risk of serious personal
injury, turn unit off and disconnect it from
power source before making any adjustments or
removing/installing attachments or accessories.
An accidental start-up can causeinjury.
Rotating the Collated Attachment
This attachment has the ability to rotate without being
taken off the drywall screwgun. To rotate, grip the top
portion with one hand, while holding the drywall screwgun
with the other then rotate. An audible "click" indicates the
magazine is in each of the availablepositions.
The magazine is designed to drive screws completely into
workpiece only. Once screwgun is lifted, adjustments to
screw must be made by first removingmagazine.
Fig. H
107
13
5
11
6
12
