12
English
51–74% charged
< 50% charged
Pack needs to be charged

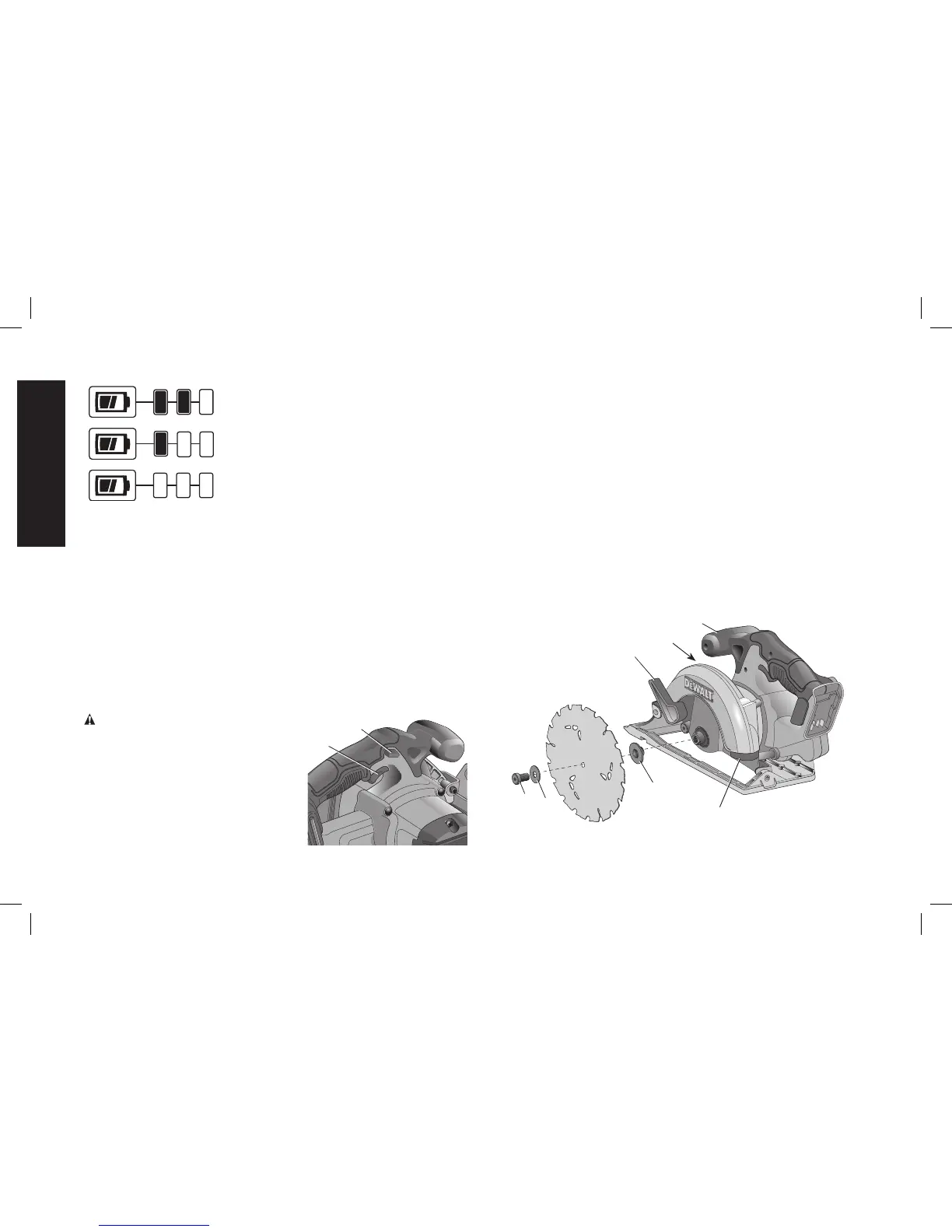

To actuate the fuel gauge, press and hold the fuel gauge button (R).
A combination of the three green LED lights will illuminate designating
the level of charge left. When the level of charge in the battery is below
the usable limit, the fuel gauge will not illuminate and the battery will
need to be recharged.
NOTE: The fuel gauge is only an indication of the charge left on the
battery pack. It does not indicate tool functionality and is subject to
variation based on product components, temperature and end-user
application.
For more information regarding fuel gauge battery packs, please call
1-800-4-D
e
WALT (1-800-433-9258) or visit our website www.dewalt.
com.
Trigger Switch (Fig. 3)
WARNING: This tool has no
FIG. 3
B
A
provision to lock the trigger switch
in the ON position and should
never be locked ON by any other
means.
Release the trigger switch lock-off
button (A) by pressing the button as
shown. Pull the trigger switch (B)
to turn the motor on. Releasing the
trigger switch turns the motor off.
Changing Blades (Fig. 4, 5)
TO INSTALL THE BLADE (FIG. 4, 5)
1. Place inner clamp washer (O) on saw spindle with the large flat
surface facing out toward the blade (Fig. 4A, 4B).
2. Retract the lower blade guard (G) and place blade on saw spindle
against the inner clamp washer, making sure that the blade
will rotate in the proper direction (the direction of the rotation
arrow on the saw blade and the teeth must point in the same
direction as the direction of rotation arrow on the lower blade
guard). Do not assume that the printing on the blade will always
be facing you when properly installed. When retracting the lower
blade guard to install the blade, check the condition and operation
of the lower blade guard to assure that it is working properly. Make
sure it moves freely and does not touch the blade or any other
part, in all angles and depths of cut.
FIG. 4A
O
K
L
F
P
H
G

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the DeWalt DCS393 and is the answer not in the manual?

DeWalt DCS393 Specifications

General IconGeneral
Blade Diameter6-1/2 inches
No Load Speed5150 RPM
Bevel Capacity50 degrees
Voltage20V
Max. Cut Depth at 90°2-1/4 inches
Power SourceBattery
Motor TypeBrushed
Max. Cut Depth at 45°1-5/8 inches
