ENGLISH
10
Recommended accessories for use with your tool are
available at extra cost from your local dealer or authorized
service center. If you need assistance in locating any
accessory, please contact
DeWALT, call 1-800-4-DeWALT
(1-800-433-9258).
Replacement Accessories

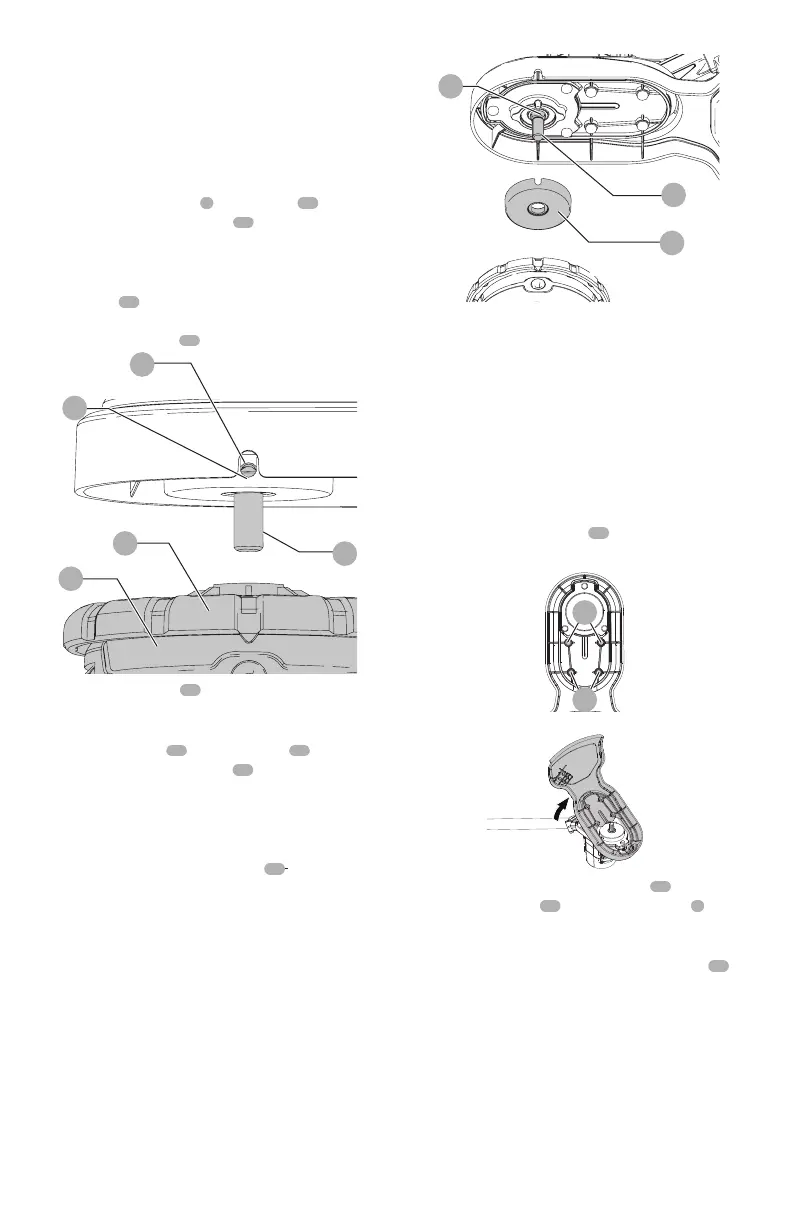

Replacing Spool Assembly (Fig.A,M, N)
1. Rotate the spool housing
8
until the hole
18
in the
spindle plate aligns with notch
19
in the motor
housing. Insert a screwdriver through the notch and into
the hole, to prevent the spindle fromturning.
2. Unscrew and remove the spool housing by turning the
spool head
16
clockwise.
NOTE: Do not try to remove the spool housing by
turning the spool cap
17
.
Fig. M
16
17
18
19
21
3. Remove spindle plate
20
before installing a new
housing. Remove any dirt and grass from the motor
housing and spindle plate.
4. Install spindle plate
20
onto the spindle
21
, so the
double D shaped retaining nut
22
on the spindle sits
inside the base of the spindle plate.
5. Align the spindle plate hole and notch, insert a
screwdriver back into the hole and thread the new
spool housing counterclockwise. Securely tighten the
new spool housing onto the spindle
21
.
Fig. N
21
20
22
Replacing Guard (Fig. O, P)
An extended coverage guard is available (sold separately)
for extra coverage if desired. Use
DeWALT replacement
guard Part Number 90624357.
WARNING: Never operate appliance
without guard firmly in place. Damage or personal
injury could result.
1. Remove the spool housing as described in the
"Replacing Spool Housing" section.
2. Remove the 4 guard screws
(
34
)
shown in figureO.
3. Lift the guard off at an angle as shown in figureP.
fig. O
34
34
fig. P
4. To attached a new guard, slide the tab
(
35
)
of the new
guard under the lip
(
36
)
of the motor housing
(
6
)
, then
lower the back of the guard into place as shown in
figureQ.
5. Replace and securely tighten the 4 guard screws
(
34
)
.
6. Replace the spool housing as described in the
"Replacing Spool Housing" section.
