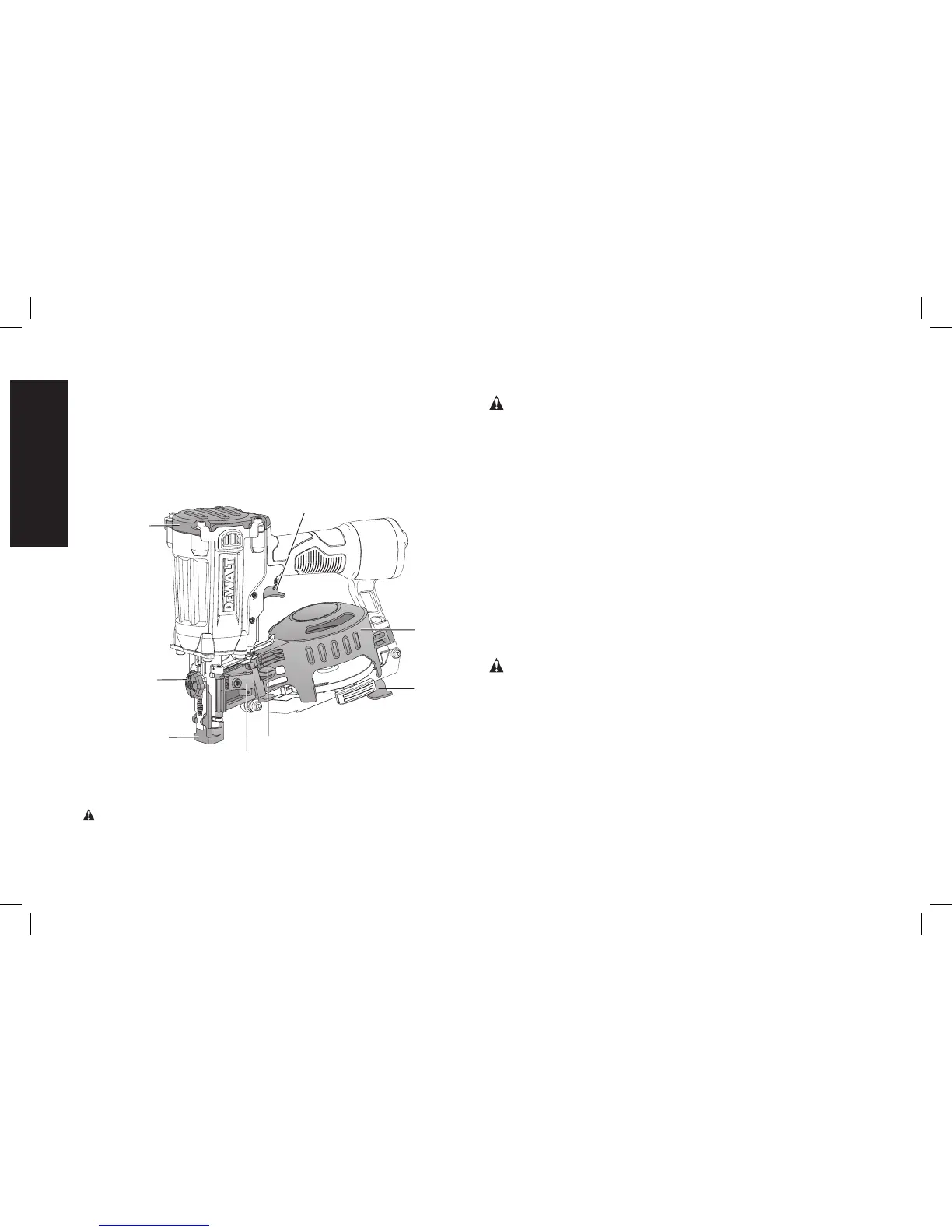

COMPONENTS (FIG. 1)
A. Top cap
B. Trigger
C. Canister cover
D. Door latch
E. Contact trip
F. Depth adjustment wheel
G. Nail guide door
H. Shingle guide
FIG. 1
A
E
F
B
C
H
D
G
ASSEMBLY
WARNING: Disconnect air line from tool and remove fasteners
from magazine before making adjustments or personal injury may
result.
Trigger
WARNING: Keep fingers AWAY from the trigger when not
driving fasteners to avoid accidental actuation. Never carry a
tool with finger on the trigger. With the contact trip trigger (black)
assembled, the tool will drive a fastener if the contact trip is bumped
while the trigger is depressed.
In accordance with the ANSI Standard SNT-101-2015, the D
WALT
coil nailers are assembled with a black contract trip trigger. However,
a gray sequential trip trigger kit is available. For a replacement trigger
contact your authorized service center or call 1-800-4-D
WALT.
Air Fitting
This tool uses a 1/4" N.P.T. male plug. The inside diameter should be
0.180" (4.6 mm) or larger. The fitting must be capable of discharging
tool air pressure when disconnected from the air supply. A 3/8"
(9.5 mm) male quick connector coupling is available from D
WALT
and may be used when a 1/4" (6.4mm) supply line is not available.
NOTE: A 3/8" (9.5 mm) supply line (and fittings) are required for
maximum tool performance.
WARNING: Always use couplings that relieve all pressure
from the tool when it is disconnected from the power supply.
Always use hose connectors that shut off air supply from compressor
when the tool is disconnected.
TO INSTALL AN AIR FITTING
1. Wrap the male end of the fitting with thread seal tape prior to
assembly to eliminate air leaks.
2. To install a 1/4" (6.4mm) fitting: screw it directly into the air inlet
and tighten firmly. NOTE: If an adapter is in the air inlet, remove it
prior to inserting the fitting.
