DeWalt DWS779 Instruction Manual

8
ENGLISH

CAUTION: Always use a work clamp to maintain control and reduce the risk of workpiece
damage and personal injury, if your hands are required to be within 4” (100 mm) of the blade
during thecut.
NOTE: The rail lock knob
29
shown in Figure A must be loose to allow the saw to slide along its
rails
23
.
Miter crosscuts are made with the miter arm at some angle other than zero. This angle is often
45º for making corners, but can be set anywhere from zero to 50º left or 60° right. Make the cut as
described above.

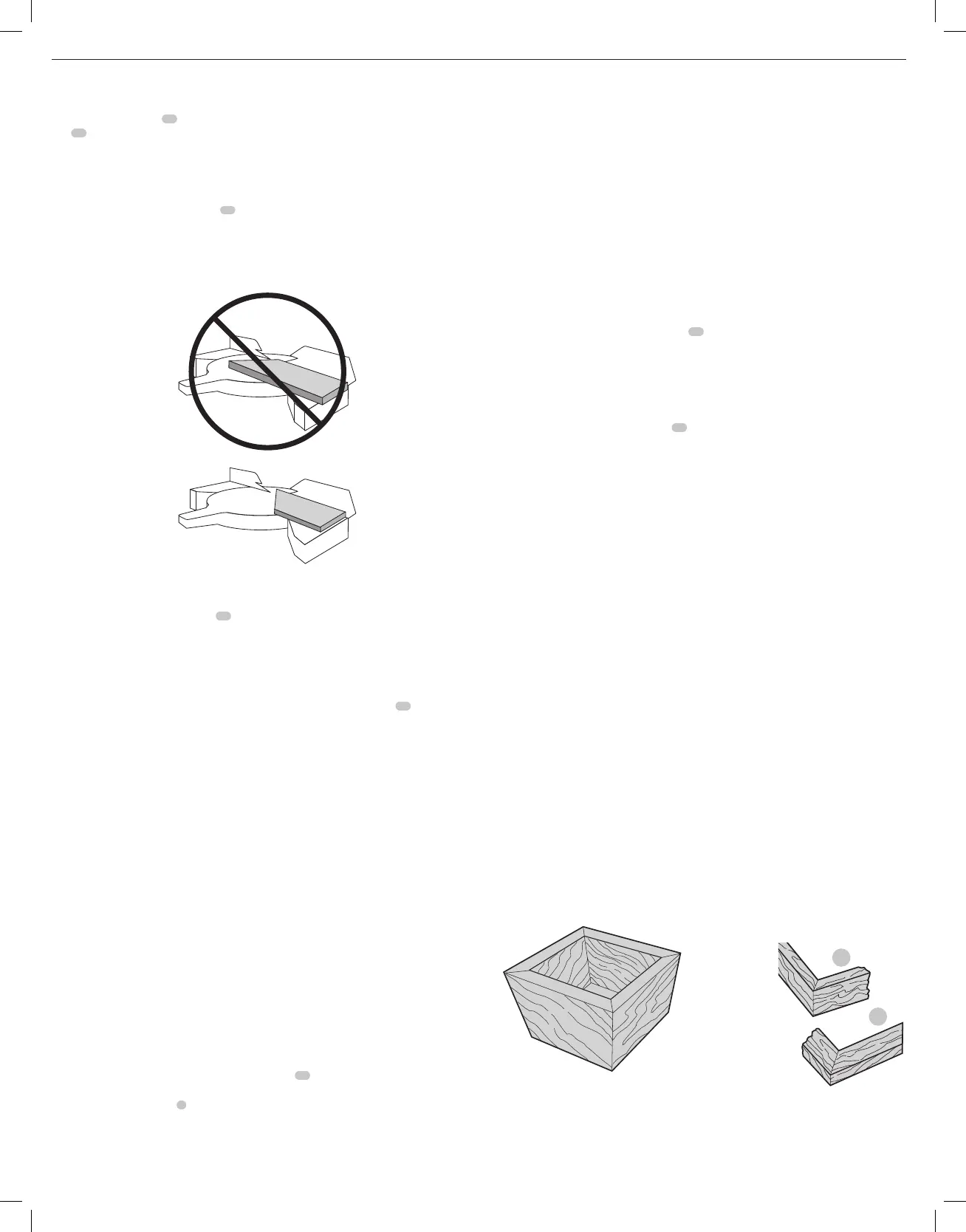

When performing a miter cut on workpieces wider than a 2 x 6 that are shorter in length, always
place the longer side against the fence
10
(Figure N).
To cut through an existing pencil line on a piece of wood, match the angle as close as possible.
Cut the wood a little too long and measure from the pencil line to the cut edge to determine
which direction to adjust the miter angle and recut. This will take some practice, but it is a
commonly usedtechnique.
Fig. N
Bevel Cuts
A bevel cut is a crosscut made with the saw blade leaning at an angle to the wood. In order
to set the bevel, loosen the bevel lock
11
, and move the saw to the left or right as desired.
(It is necessary to move the fence to allow clearance.) Once the desired bevel angle has been
set, tighten the bevel lock firmly. Refer to the Controls section for detailed instructions on the
bevelsystem.
Bevel angles can be set from 49º right to 49º left and can be cut with the miter arm set between
50º left or 60º right. At some extreme angles, the right or left side fence might have to be
removed. To remove the left or right fence, unscrew the fence adjustment knob
14
several turns
and slide the fenceout.
NOTE: Refer to Fence Adjustment in the Assembly and Adjustments section for important
information on adjusting the fences for certain bevelcuts.
Quality of Cut
The smoothness of any cut depends on a number of variables. Things like material being cut,
blade type, blade sharpness and rate of cut all contribute to the quality of thecut.
When smoothest cuts are desired for molding and other precision work, a sharp (60 tooth
carbide) blade and a slower, even cutting rate will produce the desiredresults.
Ensure that the material does not move or creep while cutting; clamp it securely in place. Always
let the blade come to a full stop before raisingarm.
If small fibers of wood still split out at the rear of the workpiece, stick a piece of masking tape
on the wood where the cut will be made. Saw through the tape and carefully remove tape
whenfinished.
For varied cutting applications, refer to the list of recommended saw blades for your saw and
select the one that best fits your needs. Refer to Saw Blades underAccessories.
Non-Through-Cutting (Grooving and Rabbeting)
Instructions in the Crosscuts, Bevel Cuts and Cutting Compound Miters sections are for cuts
made through the full thickness of the material. The saw can also perform non-through cuts to
form grooves or rabbets in thematerial.
Groove Cut (Fig. A)
Refer to Depth Stop for detailed instructions for setting depth of cut. A piece of scrap wood
should be used to verify the desired depth of cut.
Hold the wood firmly on the table and against the fence
10
. Align the cut area underneath
the blade. Position the saw arm fully forward, with blade in down position. Turn on the saw by
squeezing the trigger switch
1
shown in FigureA. Smoothly, push saw arm rearward to cut a
groove through the workpiece.
Release the trigger switch with the saw arm down. When saw blade has completely stopped,
raise the saw arm. Always let the blade come to a full stop before raising thearm.
To widen the groove, repeat steps 1–4 until the desired width is obtained.
Clamping the Workpiece (Fig. A)

WARNING: To reduce the risk of serious personal injury, turn off the tool and
disconnect it from the power source before attempting to move it, change
accessories or make anyadjustments.

WARNING: A workpiece that is clamped, balanced and secure before a cut may become
unbalanced after a cut is completed. An unbalanced load may tip the saw or anything the
saw is attached to, such as a table or workbench. When making a cut that may become
unbalanced, properly support the workpiece and ensure the saw is firmly bolted to a stable
surface. Personal injury mayoccur.

WARNING: The clamp foot must remain clamped above the base of the saw whenever the
clamp is used. Always clamp the workpiece to the base of the saw–not to any other part of
the work area. Ensure the clamp foot is not clamped on the edge of the base of thesaw.

CAUTION: Always use a work clamp to maintain control and reduce the risk of workpiece
damage and personalinjury.
If you cannot secure the workpiece on the table and against the fence by hand, (irregular shape,
etc.) or your hand would be less than 4" (100mm) from the blade, a clamp or other fixture must
beused.
For best results use the vertical material clamp
21
provided with your saw. Additional DW7082
clamps can be purchased at your local retailer or
DeWALT
servicecenter.
Other aids such as spring clamps, bar clamps or C-clamps may be appropriate for certain sizes
and shapes of material. Use care in selecting and placing these clamps. Take time to make a dry
run before making the cut. The left fence will slide from side to side to aid in clamping
To Install Clamp (Fig. A)
1. Insert it into the hole behind the fence
10
. The clamp should be facing toward the back of
the miter saw. The groove on the clamp rod should be fully inserted into the base. Ensure this
groove is fully inserted into the base of the miter saw. If the groove is visible, the clamp will
not besecure.
2. Rotate the clamp 180º toward the front of the mitersaw.
3. Loosen the knob to adjust the clamp up or down, then use the fine adjust knob to firmly
clamp theworkpiece.
NOTE: Place the clamp on the opposite side of the base when beveling. ALWAYS MAKE DRY
RUNS (UNPOWERED) BEFORE FINISH CUTS TO CHECK THE PATH OF THE BLADE. ENSURE THE
CLAMP DOES NOT INTERFERE WITH THE ACTION OF THE SAW ORGUARDS.
Support for Long Pieces

WARNING: To reduce the risk of serious personal injury, turn off the tool and
disconnect it from the power source before attempting to move it, change
accessories or make anyadjustments.
ALWAYS SUPPORT LONGPIECES.
Never use another person as a substitute for a table extension; as additional support for a
workpiece that is longer or wider than the basic miter saw table or to help feed, support or pull
theworkpiece.
For best results, use the DW7080 extension work support to extend the table width of your saw,
available from your dealer at extracost.
Support long workpieces using any convenient means such as sawhorses or similar devices to
keep the ends fromdropping.
Cutting Picture Frames, Shadow Boxes and Other Four-Sided
Projects (Fig.O,P)
To best understand how to make the items listed here, we suggest that you try a few simple
projects using scrap wood until you develop a “feel” for yoursaw.
Your saw is the perfect tool for mitering corners like the one shown in FigureO. Sketch 1 in
FigureP shows a joint made by using the bevel adjustment to bevel the edges of the two boards
at 45º each to produce a 90º corner. For this joint the miter arm was locked in the zero position
and the bevel adjustment was locked at 45º. The wood was positioned with the broad flat side
against the table and the narrow edge against the fence. The cut could also be made by mitering
right and left with the broad surface against thefence.
Fig. O
1
Fig. P
1
2
