Assembling the Unit (Fig. 4)
Wheel Set Assembly

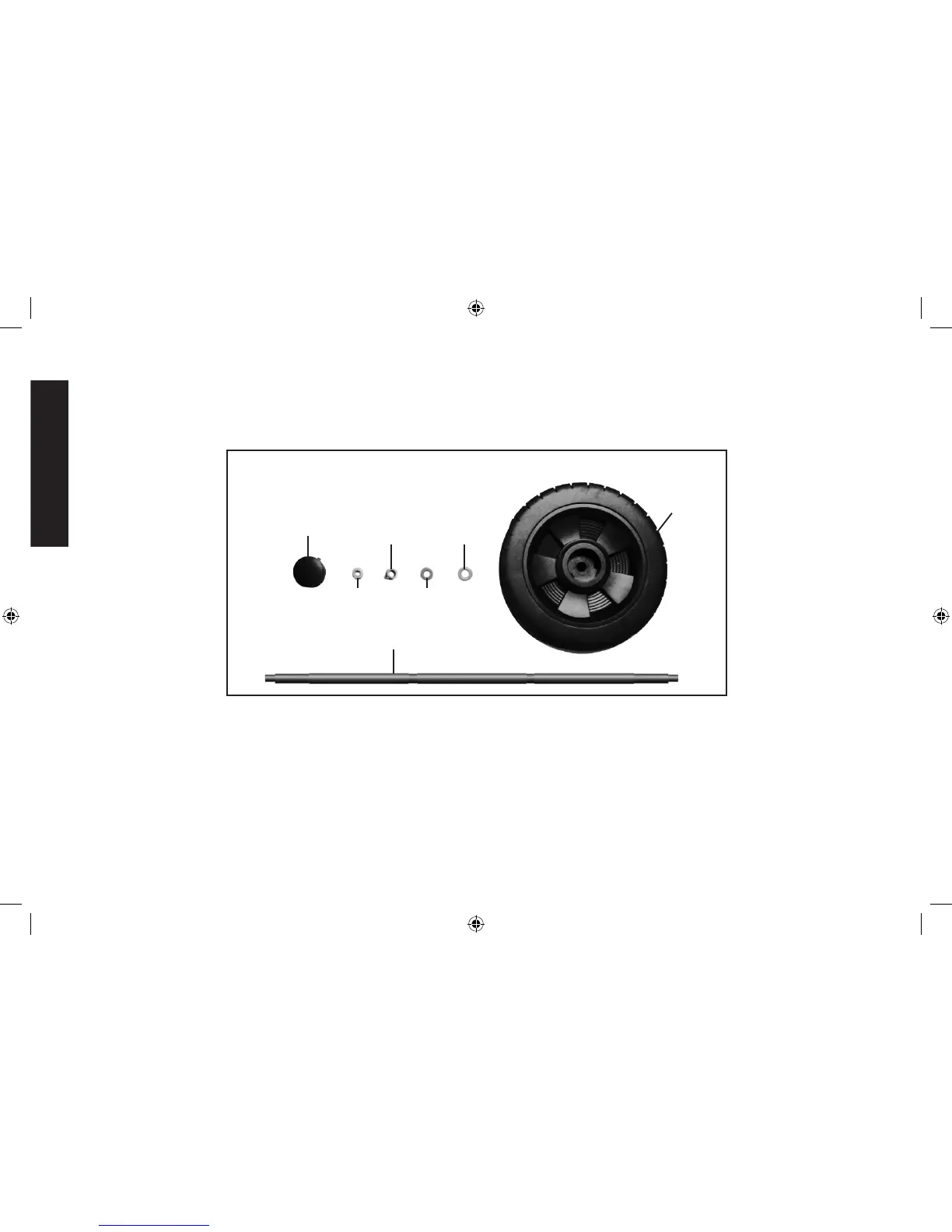

PARTS:
Wheel Shaft
Wheel Cover
(2 in total)
Wheel
Nut
(2 in total)
Ø6mm
Spring
Washer
(2 in total)
Ø6mm Plain
washer
(2 in total)
Ø8mm
Plain
washer
(2 in total)
Wheels
(2 in total)
