Pairing Device to Mobile Application (continued)

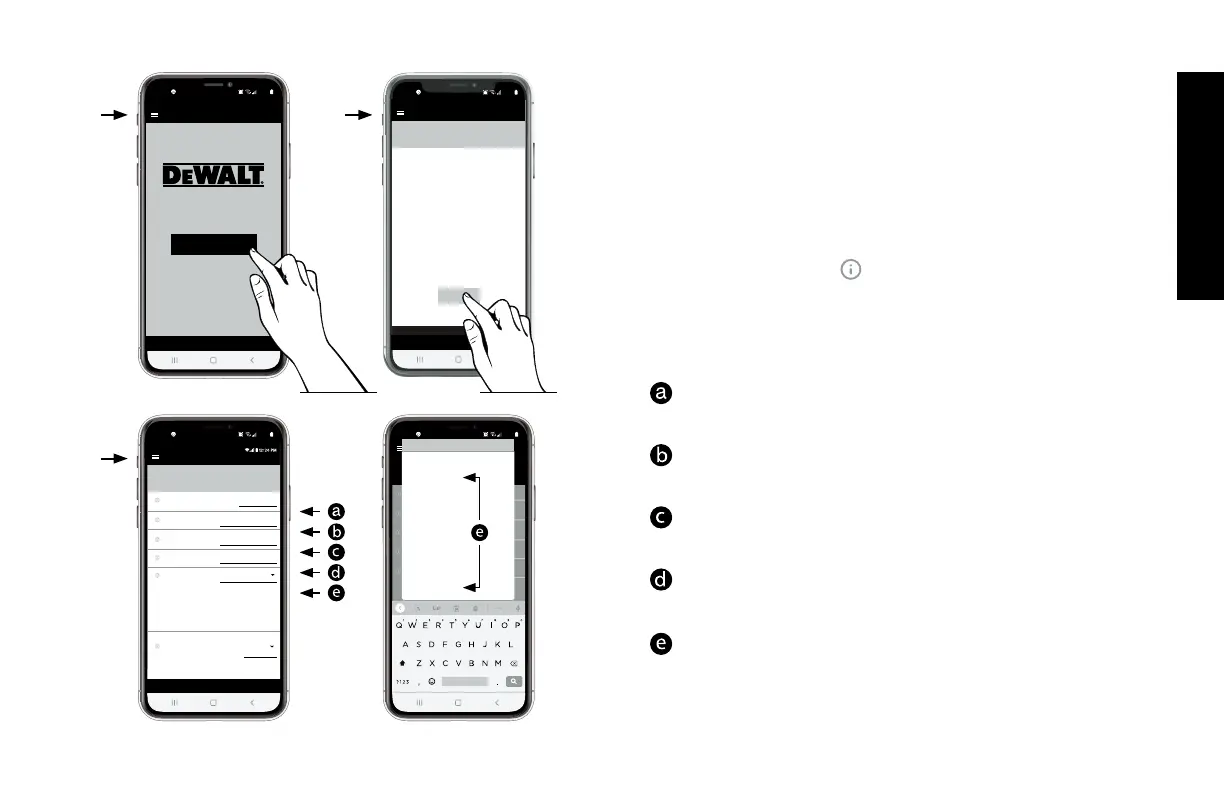

5. Open DEWALT Air Compressor Monitoring System App on
phone.
6. From the initial screen: Select "ADD COMPRESSOR".
7. This will bring you to the AIR COMPRESSOR SETTINGS
screen. Press "ADD NEW".
NOTICE: Pressing the
icon beside each item will give you
hints on what to enter.
8. On the AIR COMPRESSOR MAINTENANCE SETTINGS
screen:
Enter a compressor Nickname. This identity will be used
throughout the application.
Enter serial number for future ease of ordering parts and
obtaining service.
Enter Parts Manual Number for future ease of ordering
parts and obtaining service.
Enter Parts Manual Revision to assure you get the right
parts for your compressor.
Select your DEWALT Compressor Model Number from
the drop down listing. This will automatically populate the
manufacturer’s recommended maintenance parameters for
this model.
