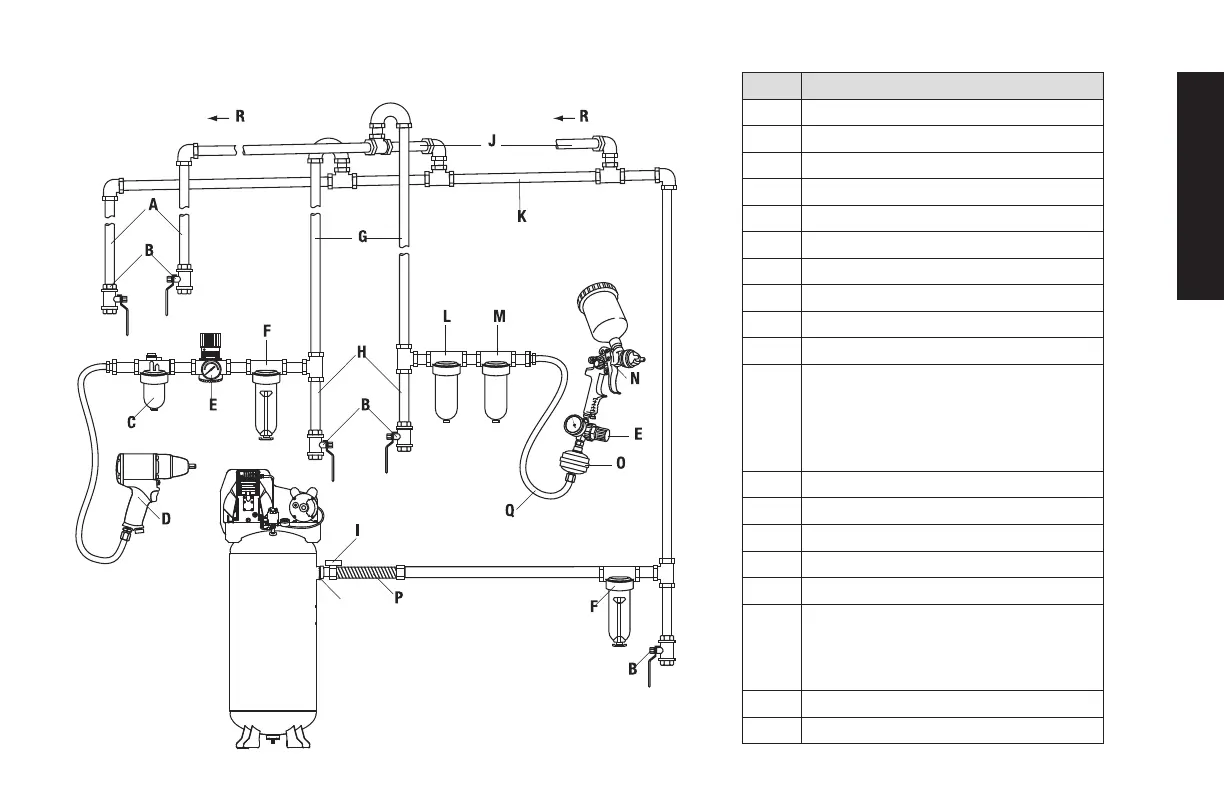

TYPICAL COMPRESSED AIR DISTRIBUTION SYSTEM
S
Part Description
A
Drain Legs
B
Drain Valves
C
Lubricator
D
Air Tool
E
Regulator
F
Filter / Moisture Trap
G
Air Usage Lines
H
Dirt Legs
I
Air Discharge Valve
J
Feeder Lines Slope with Air Flow
K
Main Distribution Air Lines - Slope
pipe in direction of air flow. Water
condensate flows along bottom of
pipe to drain legs, preventing it from
entering feeder lines.
L
5 Micron Filter
M
.01 Micron Filter
N
Spray Gun
O
Ball Fitter
P
Flexible Coupling
Q
For Best Performance - The distance
between the compressor and the
moisture trap should be as long as
possible.
R
Air Flow
S
Air Outlet
