2
English
Air Compressor
A. Pump Air Intake Filter
B. Auto(-)/Off(O) Switch
C. Air Tank Pressure Gauge
D. Air Outlet
E. Safety Valve
F. Air Tank Drain Valve
G. Pump Oil Fill Plug
H. Pump Oil Drain Plug
I. Check Valve
J. Magnetic Starter
Specifications
MODEL DXCM804
WEIGHT Approximate 510 lbs. (231 kg)
HEIGHT 73.5"
WIDTH 33"
AIR TANK CAPACITY 80 gallons (302.8 liters)
APPROX. CUT OUT PRESSURE 175 PSI
AIR DELIVERY 21.2 SCFM at 175 PSI
TANK FILL TIME 5 MINUTES
INPUT 230V, 60Hz, Single Phase
AC only, 31 Amps
MINIMUM BRANCH CIRCUIT
REQUIREMENT
40 AMPS
FUSE TYPE Time Delay

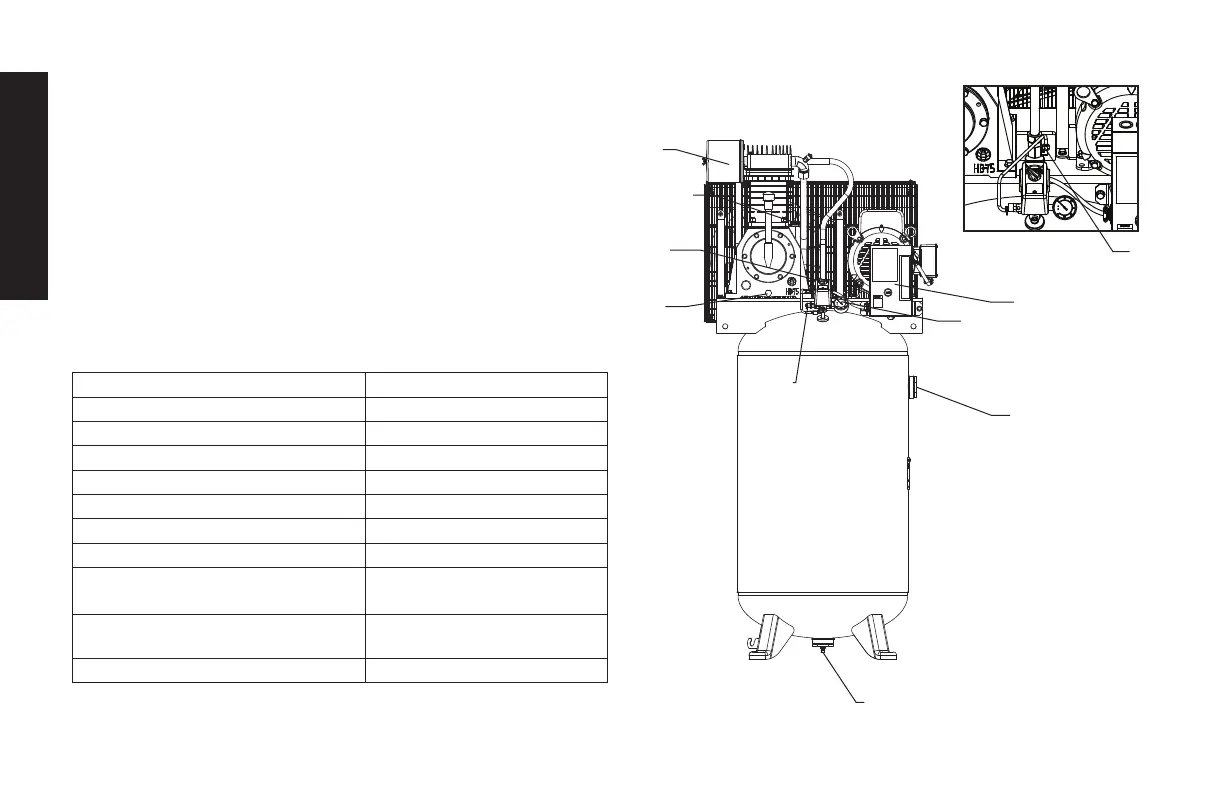

Fig. 0
A
G
B
E
C
J
D
H
F
Pump Specifications
2 Cylinder
Two Stage
Oil Lubricated
Cast iron crankcase, cylinder,
and aluminum head
Weight: 115 lbs. (52 kg.)
Oil Capacity: 53 oz (1567 mL)
I
