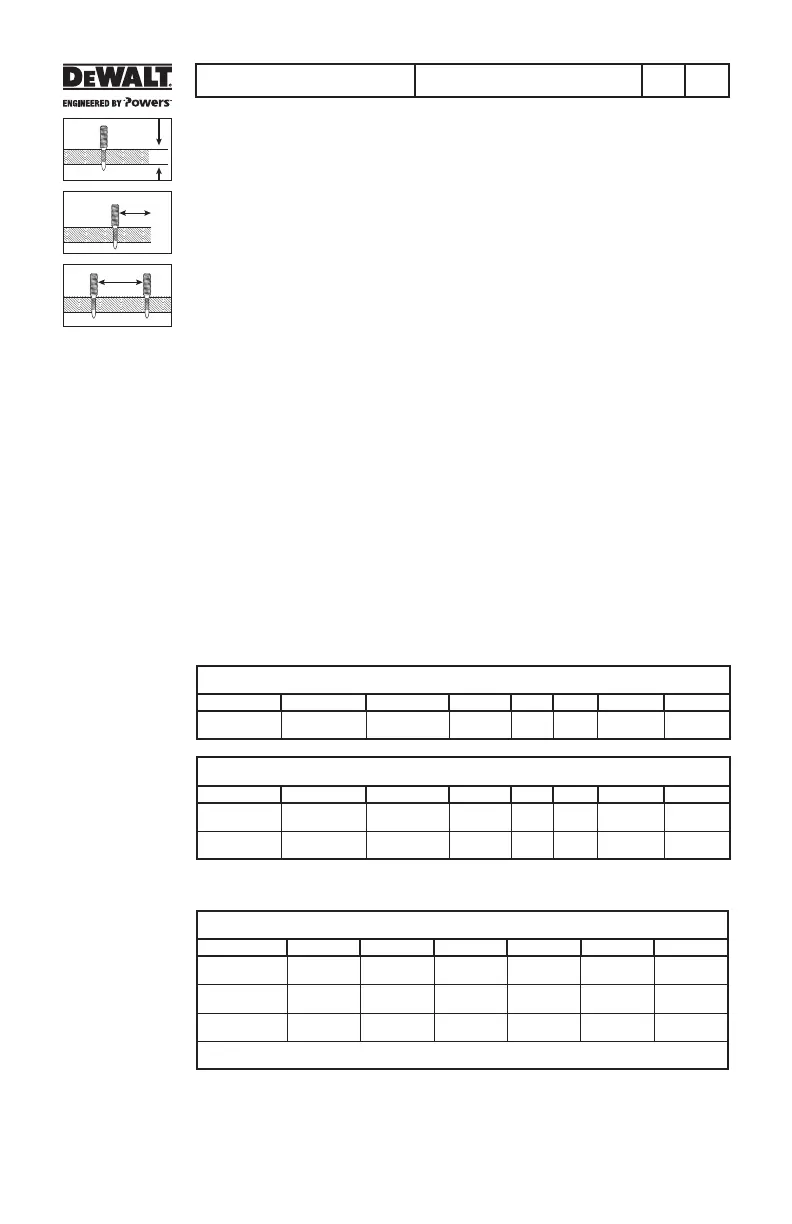

BASE MATERIAL THICKNESS
Steel base materials should be a minimum of 1/8" (3mm) in thickness.
EDGE DISTANCE
For installations in A 36 steel, 1/2" (13mm) is the recommended minimum edge distance.
SPACING
The recommended minimum distance between fastenings is 1-1/2" (38mm) center to
center for installations in ASTM A 36 steel.
FASTENER LENGTH SELECTION IN STEEL
For permanent applications when using pins in steel, first determine the thickness of
the fixture to be fastened. To this, add the thickness of the steel base material plus a
minimum of 1/4" (6mm) to allow for proper point penetration. This will be the minimum
fastener shank length required. Do not select a fastener length longer than that
required for the application.
For removable applications with threaded studs, the shank length required is equal
to the thickness of the steel base material plus a minimum of 1/4" (6mm) to allow for
proper point penetration. This will be the minimum fastener shank length required. Do
not select a shank length longer than that required for the application. An excessively
long shank can burnish or polish the hole created in the steel resulting in a reduction
in load capacity. To determine the minimum threaded length, add the thickness of the
fixture and the nut / washer thickness. The nut and washer thickness is equal to the
nominal thread diameter.
Do not over tighten threaded studs, the maximum tightening torque is listed in
the table below. Use of a nut setter is recommended to reduce the possibility of over
tightening the fasteners. For critical applications, perform a job site test.
POWDER LOAD SELECTION GUIDE
.27 CALIBER 10 LOAD STRIP
CAT # POWER LEVEL LOAD COLOR SIZE BOX CTN MSTR CTN WT./ 100
50606-PWR 6 Purple .27 strip 100 1000 10,000 .33
.27 CALIBER SAFETY STRIP
®
# POWER LEVEL LOAD COLOR SIZE BOX CTN MSTR CTN WT./ 100
50626-PWR 4 Yellow .27 100 1000 10,000 .37
50630-PWR 5 Red .27 strip 100 1000 10,000 .33
FASTENER SELECTION GUIDE
3/8" -16 THREADED STUDS
CAT # THREAD LEN SHANK LEN THREAD DIA SHANK DIA CTN MSTR CTN
50340-PWR
†
1-1/4" 3/4" K 3/8" .205 100 1000
50342-PWR
†
1-1/4" 1" 3/8" .205 100 1000
50344-PWR
†
1-1/4" 1-1/4" 3/8" .205 100 1000
K=Knurled † Factory Mutual Research Corp. approved for Pipe Hanger Components
