44
Service Procedures

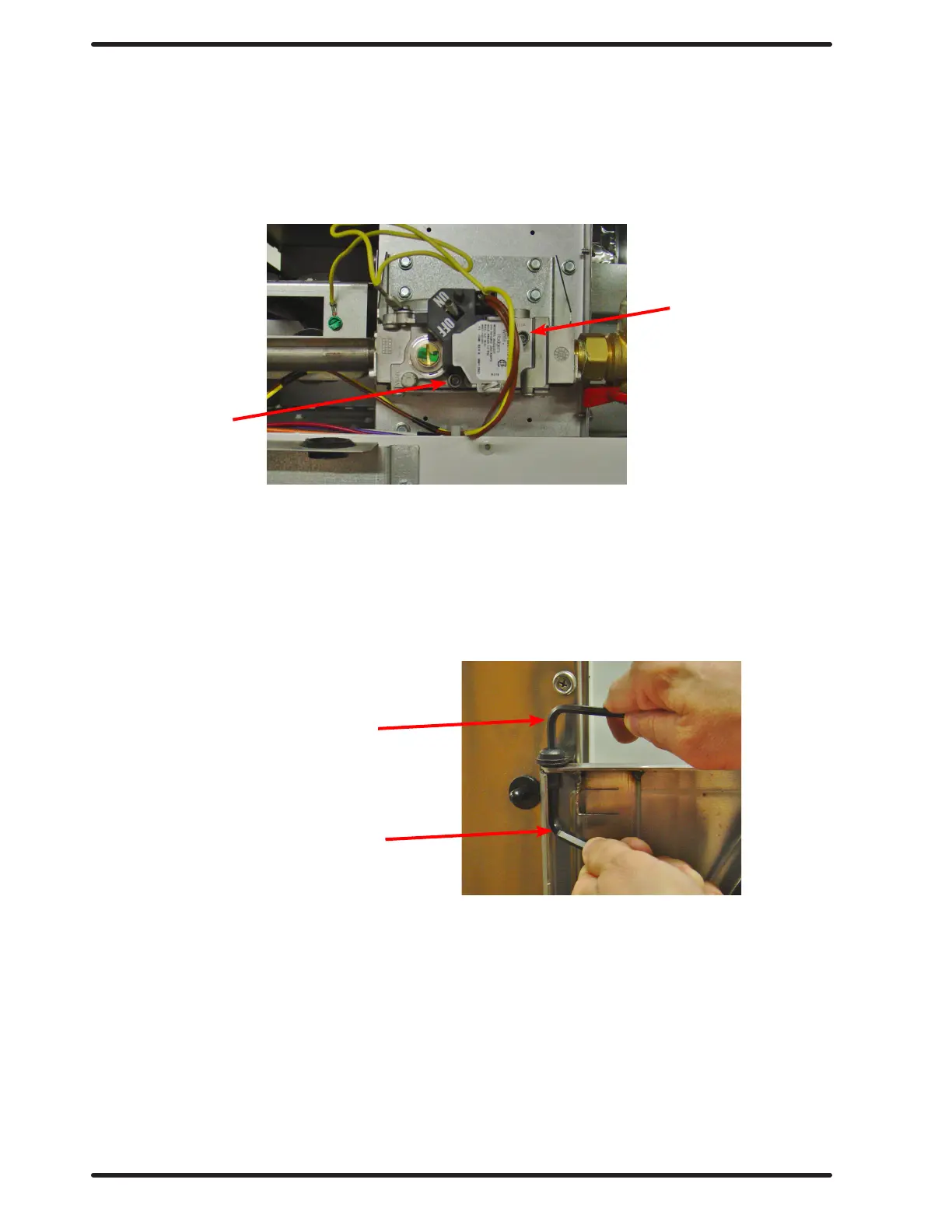

Pressure Testing
The dryer and its individual shuto valve must be disconnected from the gas supply piping
system during any pressure testing of that system at test pressures in excess of ½ psig (14”
water column). The dryer must be isolated from the gas supply piping system by closing its
individual manual shuto valve during any pressure testing of the gas supply piping system at test
pressures equal to or less than ½ psig.
Clothes Door Removal
Step 1: Open door and remove inner hinge plate cover by removing the two Phillips screws.
Step 2: The clothes door may be removed from the hinge bracket by unscrewing and
removing the top 3/16 allen head pivot screw located at the door upper hinge point, you
will also need to use a ¼ allen wrench in the lower fastener.
Step 3: Next lean the door out of the top of the hinge bracket and lift the door from the
bottom hinge pin.
Front Panel Removal
Step 1: Remove the loading door from the panel (optional, the front panel may be removed without
taking o the door).
Step 2: Open upper service door, and remove lint door.
Step 3: Then remove the two left side phillips screws with beveled washers and the two right side
phillips with beveled washers screws. Next disconnect door switch wires from back of
loading door switch.
Pressure
testing port
incoming
Pressure
testing port
outgoing
3/16 Allen
1/4 Allen
Part # 8533-112-001 7/21
