52

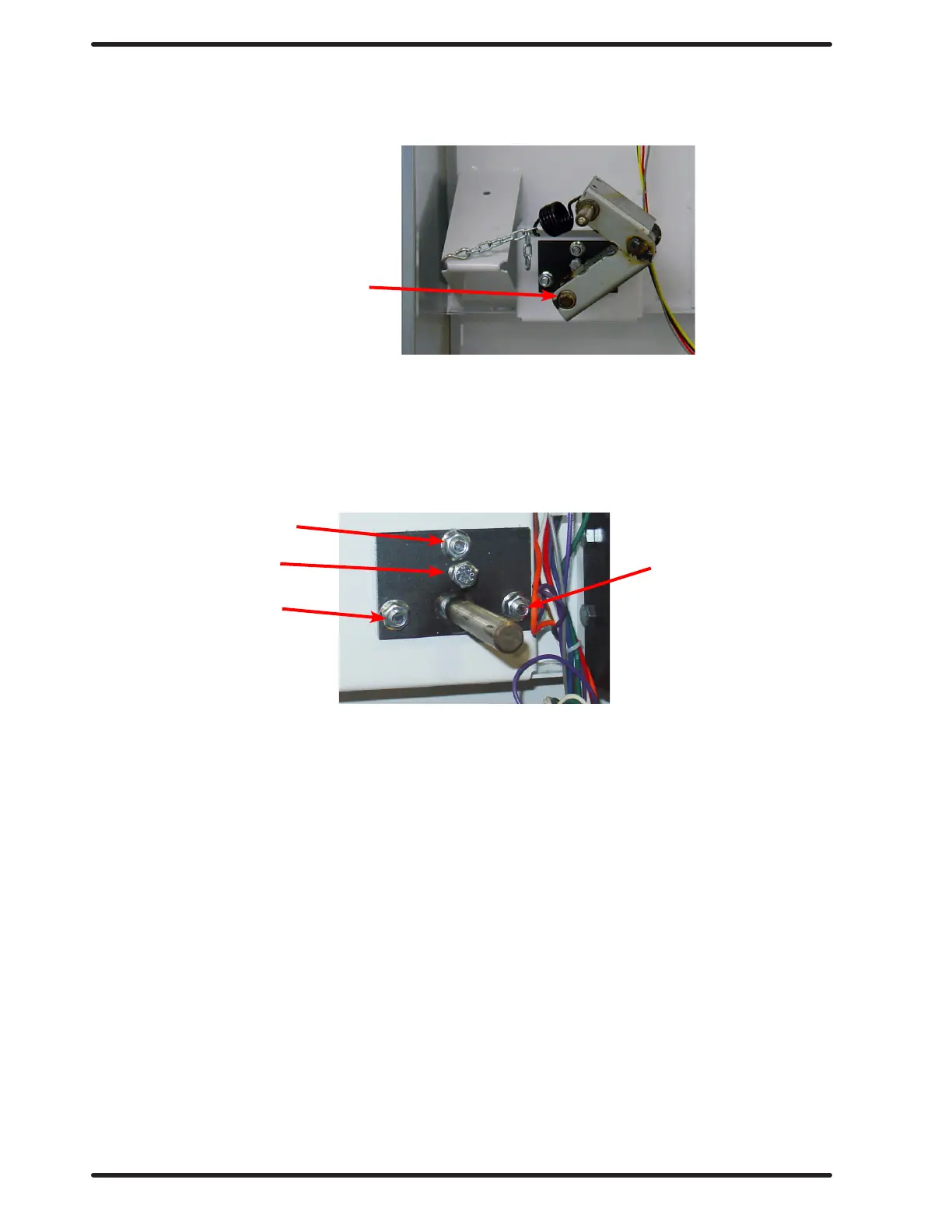

Tension Arm Assembly Removal
The tension arm assembly may be removed by removing the snap ring that holds it to the tension arm
support assembly pin. If it is necessary the arm assembly is replaced as a complete unit.
Tension Arm Support Assembly Adjustment
The tension arm support assembly may be adjusted for alignment of the intermediate pulley and also
to align the belts. The three outer nuts allow the alignment of the pin to be adjusted by pivoting the
assembly on the center bolt. The center bolt can be screwed in to allow bringing the complete assembly
farther back if necessary for belt alignment.
Snap Ring
Side Adjusting Nut
Locking Bolt
Upper Adjust Nut
Side Adjusting Nut
Part # 8533-112-001 7/21
