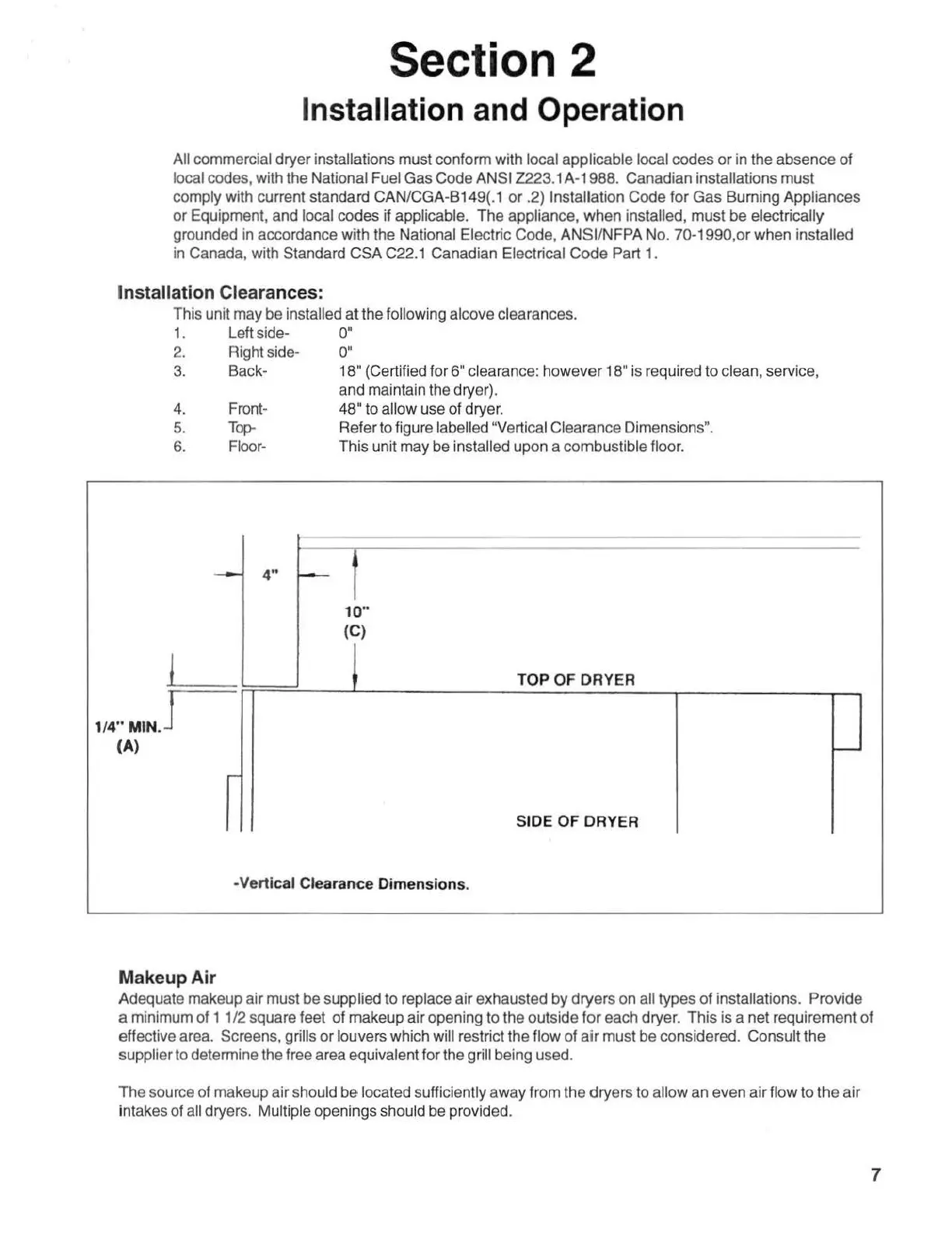

Section 2
Installation and Operation
All commercial dryer installations must conform with local applicable local codes
or
in
the absence
of
local codes, with the National Fuel
Gas
Code ANSI 2223.1 A-1988. Canadian installations must
comply with current standard CAN/CGA-8149(.1
or
.2) Installation Code for
Gas
Burning Appliances
or
Equipment, and local codes if applicable. The appliance,
when
installed, must be electrically
grounded in accordance with the National Electric Code, ANSI/NFPA No. 70-1990,or when installed
in Canada, with Standard GSA C22.1 Canadian Electrical
Code
Part 1.
Installation Clearances:
This unit may
be
installed
at
the following alcove clearances.
1. Left side- 0"
2. Right side- O"
3. Back- 18" (Certified for 6" clearance: however 18" is required to clean, service,
4.
5.
6.
I
Front-
Top-
Floor-
-
4"
!---
and maintain the dryer).
48"
to
allow use of dryer.
Refer
to
figure labelled "Vertical Clearance Dimensions".
This unit may
be
installed upon a combustible floor.
10
"
(C)
TOP
OF
DRYER
1/4"
MIN
.J
(A)
r-
SIDE OF DRYER
-Vertical Clearance Dimensions.
Makeup
Air
~
Adequate makeup air must
be
supplied
to
replace air exhausted
by
dryers
on
all types of installations. Provide
a minimum of 1 1/2 square feet
of
makeup
air
opening to the outside
for
each dryer. This is a
net
requirement
of
effective area. Screens, grills
or
louvers which will restrict the flow of air must
be
considered. Consult
the
supplier to determine the free area equivalent for the grill being used.
The
source of makeup
air
should
be
located sufficiently away from the dryers
to
allow an even
air
flow
to
the
air
intakes of all dryers. Multiple openings should be provided.
