Dexter Laundry T600 - 20 lb Non-Express: Electronic Acceptor; Schematic 120 V; Diagram 120 V

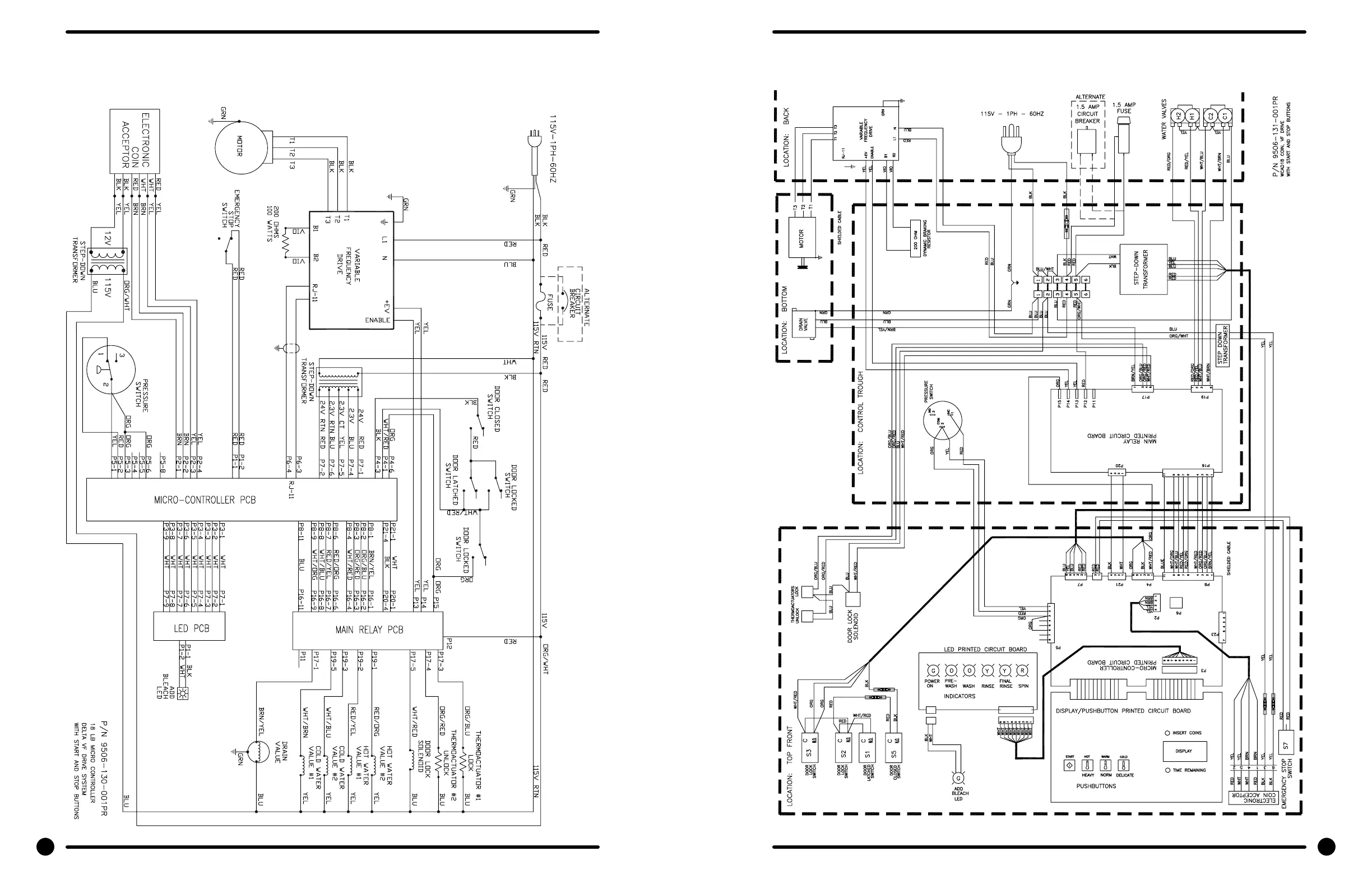

20lb Non-Express: Electronic Acceptor Schematic 120V
20lb Non-Express: Electronic Acceptor Wire Diagram 120V
