- 18 -

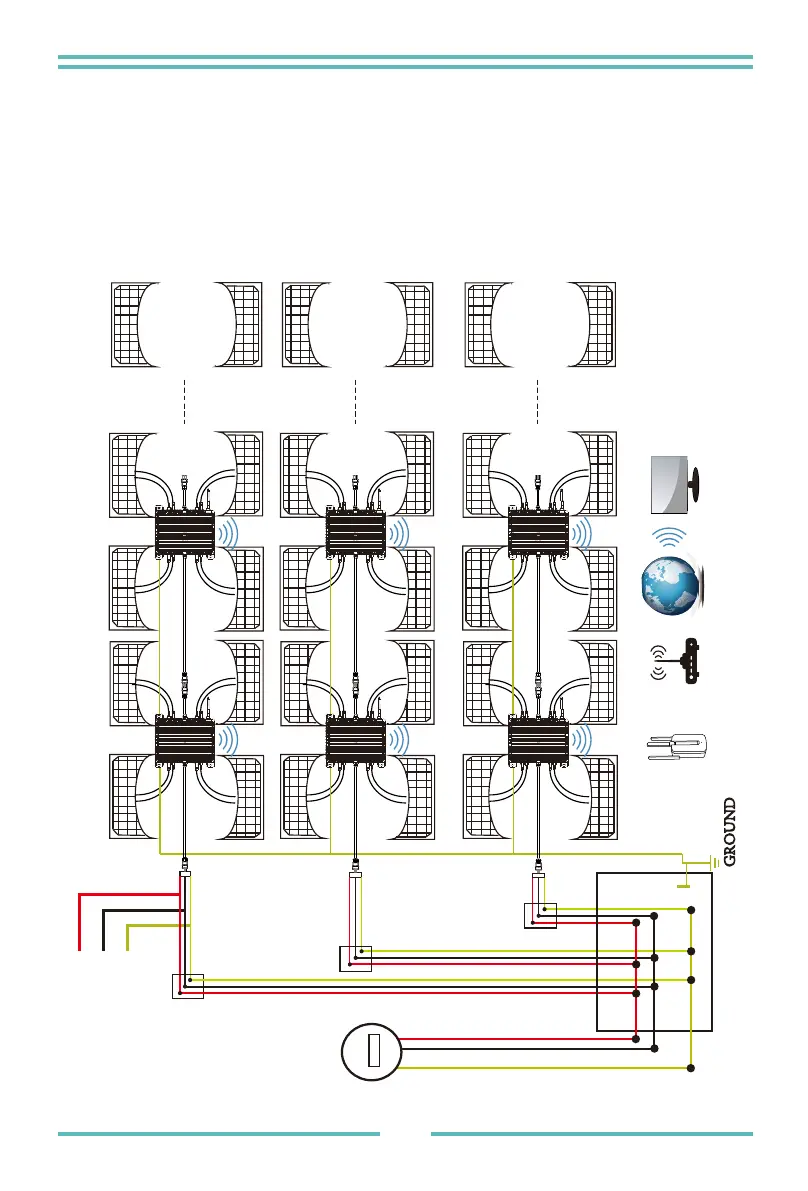

SUN1300/1600/1800/2000G3-EU-230 (4MPPT)

BLACK N
RED L
YELLOW PE
meter
GROUND
JUNCTION BOX
Router
Monitoring system
WIFI Boost
MAX 4 SUN1300G3-EU-230 per Branch MAX 4 SUN1600G3-EU-230 per Branch MAX 4 SUN1800G3-EU-230 per Branch MAX 3 SUN2000G3-EU-230 per Branch
