Hardware Installation

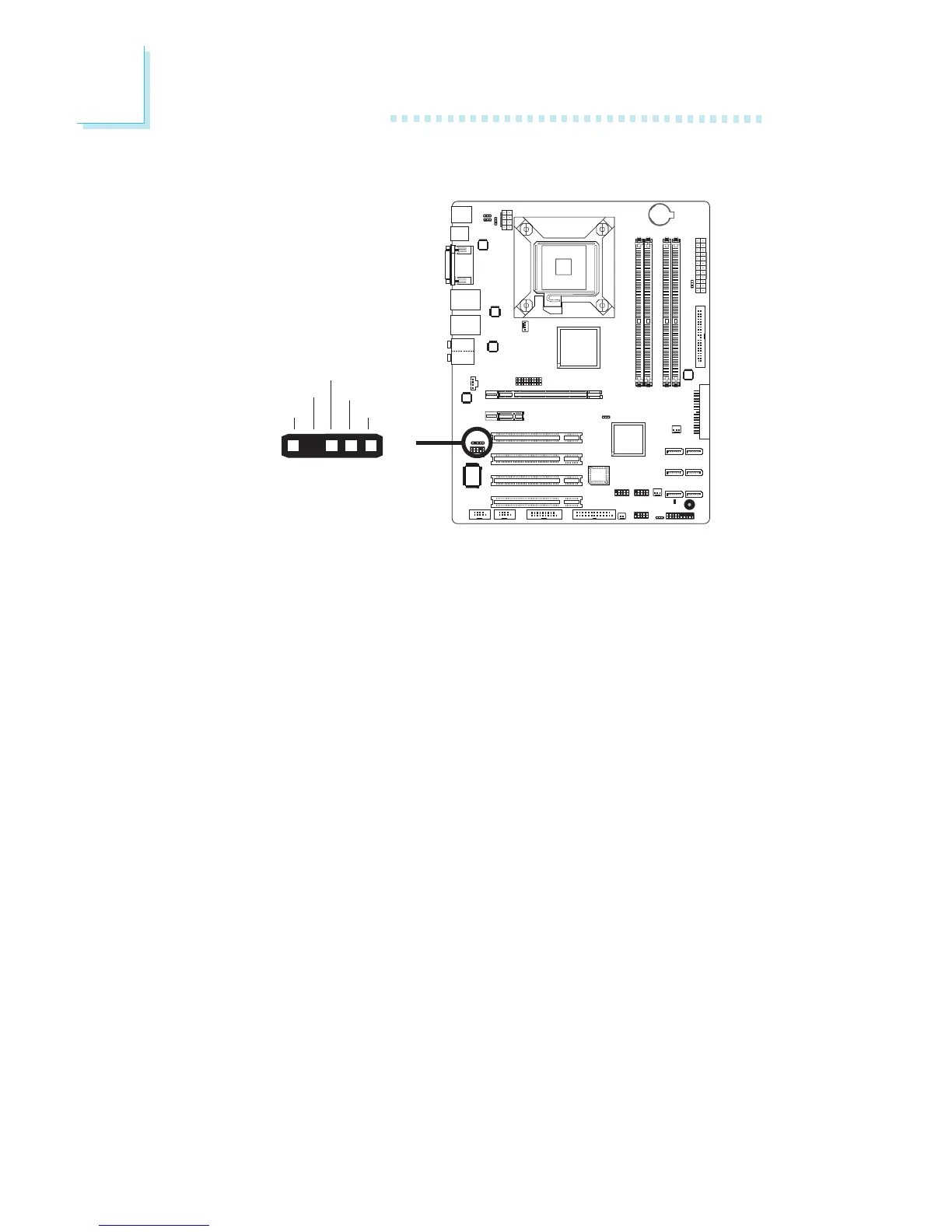

S/PDIF Connector
The S/PDIF connector is used to connect external S/PDIF ports.
Your S/PDIF ports may be mounted on a card-edge bracket. Install
the card-edge bracket to an available slot at the rear of the system
chassis then connect the audio cable connector to J11. Make sure
pin 1 of the audio cable connector is aligned with pin 1 of J11.

15
+5V
Key
SPDIF out
GND
SPDIF in
