Hardware Installation
DIO Connector
The DIO (Digital I/O) connector at location J9 provides powering-
on function to an external device that is connected to this connec-
tor.
Pins
1
3
5
7
9
11
13
15
17
19
Function
GND
DIO7
DIO6
DIO5
DIO4
DIO3
DIO2
DIO1
DIO0
GND
Pins
2
4
6
8
10
12
14
16
18
Function
+12V
+12V
GND
VCC
VCC
GND
5VSB
5VSB
GND

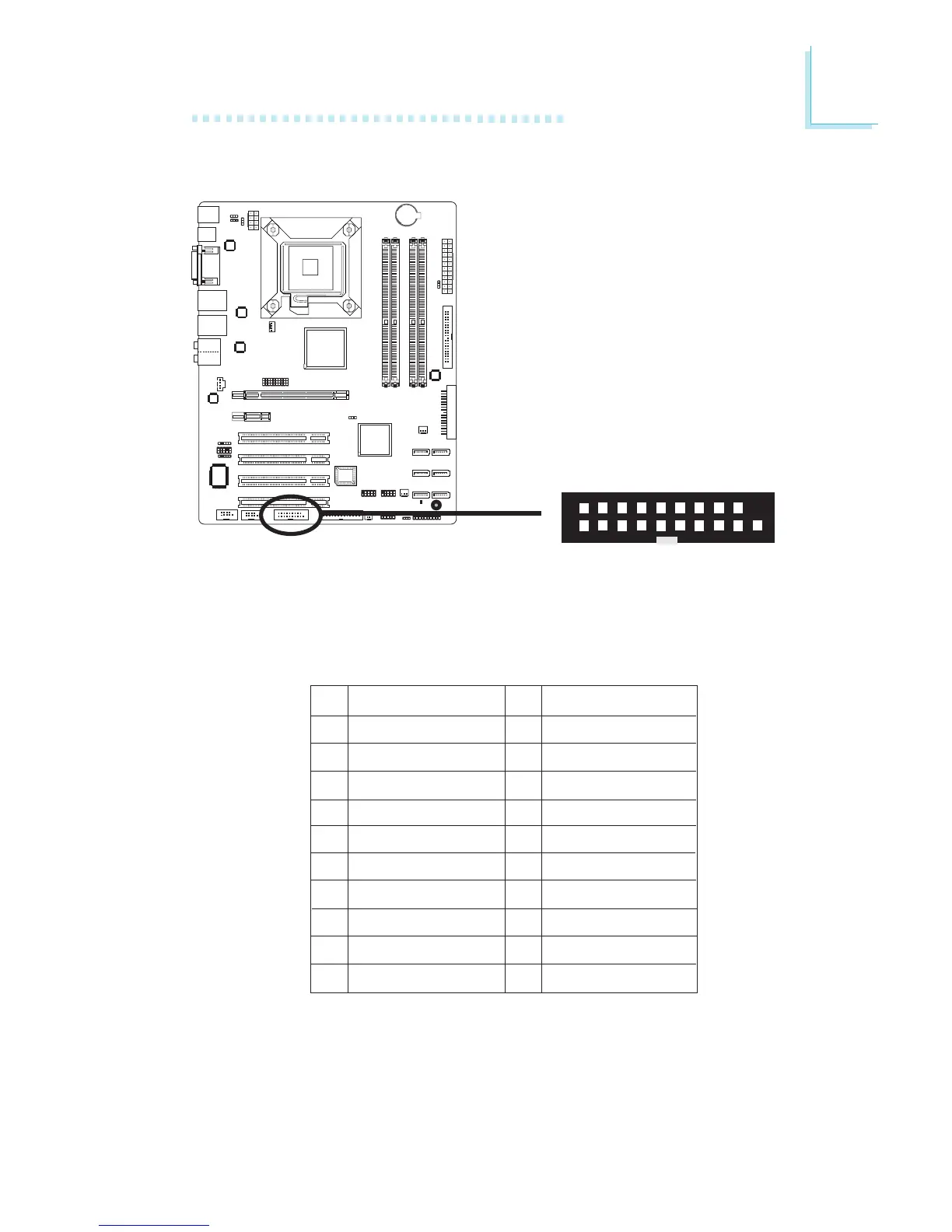

Digital I/O Connector

2
1
19
20
