Hardware Installation
I/O Connectors
CD-in Internal Audio Connector

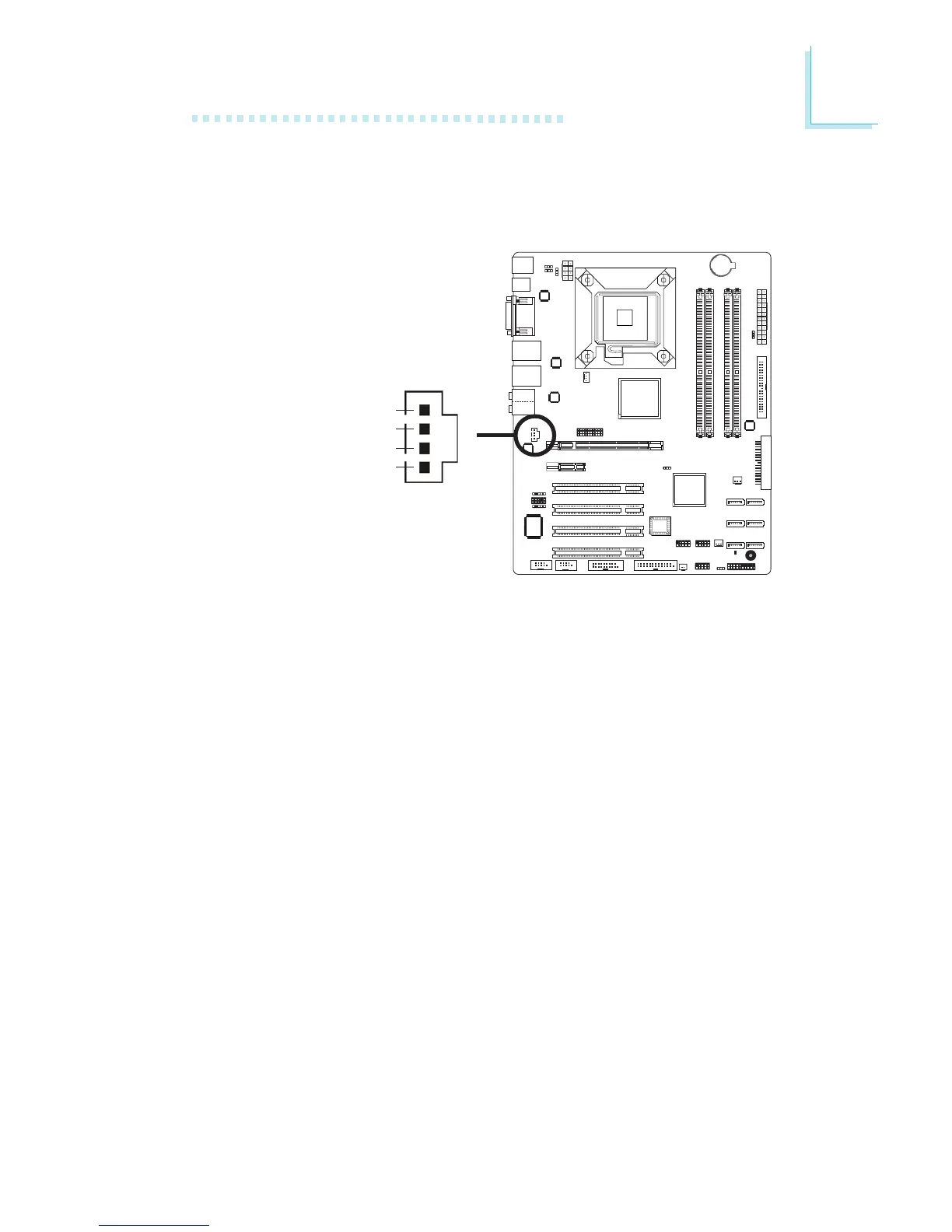

The CD-in connector (J12) is used to receive audio from a CD-
ROM drive, TV tuner or MPEG card.

4
1
Left audio channel
Right audio channel
Ground
Ground
