Mini PCIe/mSATA Power Select (for CS630-Q370 only)

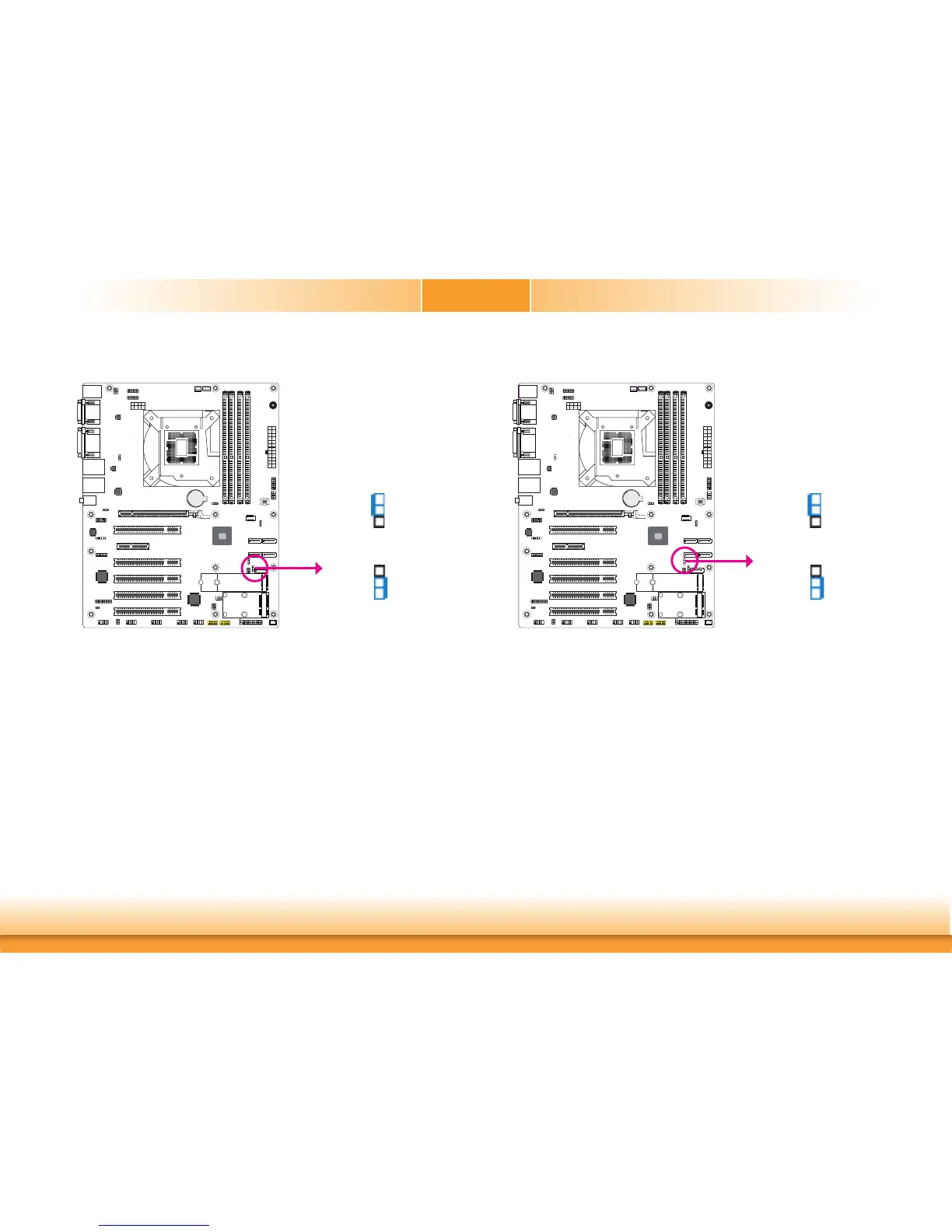

JP21 is designed to select the Mini PCIe/mSATA power: 3V3 (default) or 3V3DU.
A61
Battery
A61
JP21
Mini PCIe/mSATA Signal Select (for CS630-Q370 only)
JP9 is designed to select the Mini PCIe signal: mSATA or Mini PCIe (default).
A61
Battery
A61
JP9
2-3 On:
mSATA
1-2 On:
Mini PCIe (default)
3
1
2
3
1
2
2-3 On:
3V3DU
1-2 On:
3V3 (default)
3
1
2
3
1
2
