DGFLOW DGB MV 30 - Advanced Configuration

23

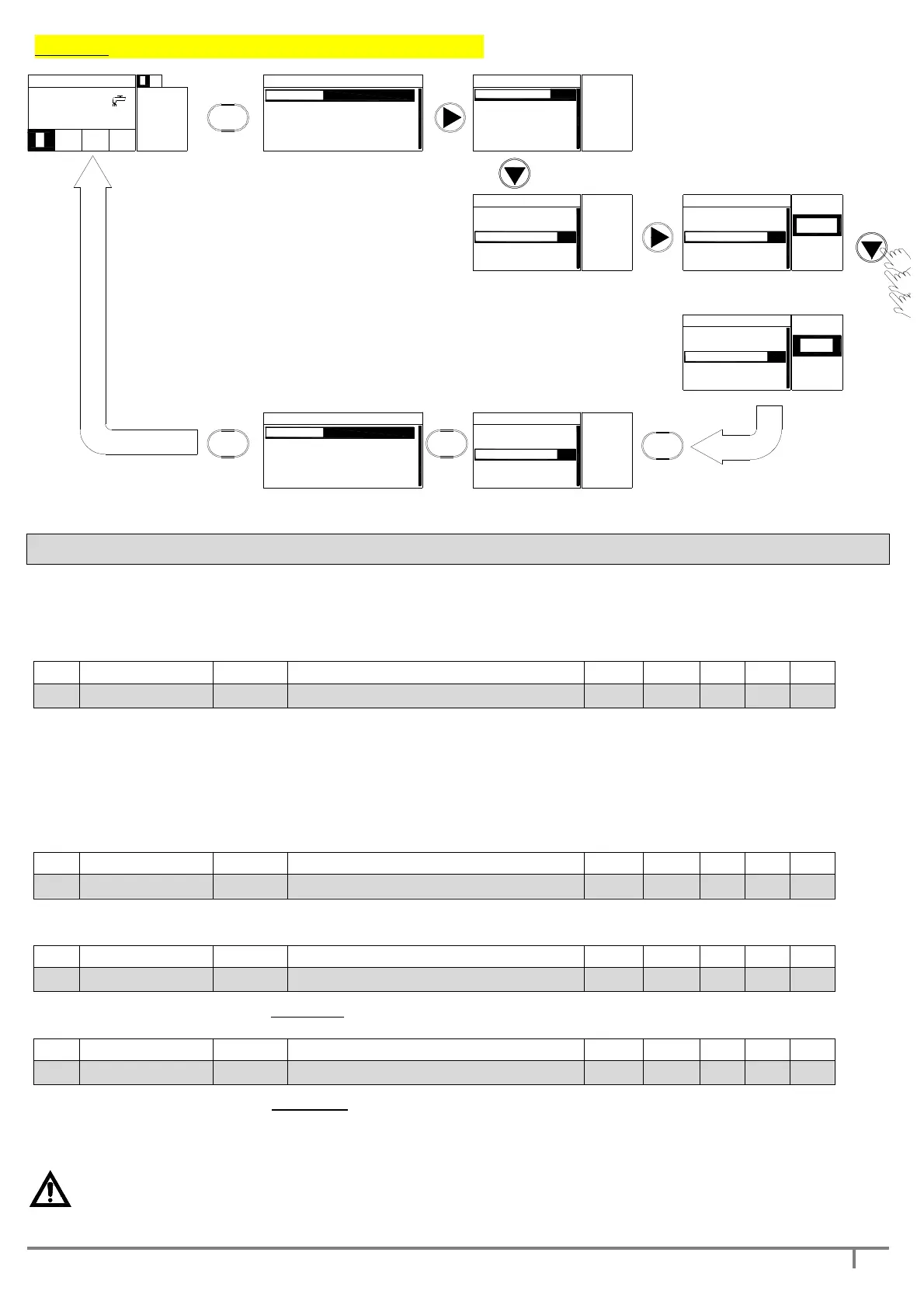

EXAMPLE: modifying the parameter PUMP 1 CURRENT
21
21
P 4.0
set 4 .0 Bar
04 /11/2 011 15:02
36. 8 HZ
5.5 A
410 V
MA IN MENU
BASE SETUP
ADV SETUP
HA RDWARE SETUP
MA INTENANCE
1
CU1
SERIAL - FIIRMW
1.0-16.0
A
10.0
1.3
PRESSURE SET 1
PRESSURE SET 2
PUMP 1 CURRENT
PUMP 1 ROTATION
BASE SETUP BASE SETUP
PUMP 1 ROTATION
PUMP 1 CURRENT
PRESSURE SET 2
PRESSURE SET 1
1.3
10.0
A
1.0-16 .0
SERIAL - FIIRMW
CU1
CU1
SERIAL - FIIRMW
1.0-16 .0
A
9.5
1.3
PRESSURE SET 1
PRESSURE SET 2
PUMP 1 CURRENT
PUMP 1 ROTATION
BASE SETUP
SET
BASE SETUP
PUMP 1 ROTATION
PUMP 1 CURRENT
PRESSURE SET 2
PRESSURE SET 1
1.3
9.5
A
1.0-16.0
SERIAL - FIIRMW
CU1 1
MA INTENANCE
HA RDWARE SETUP
ADV SETUP
BASE SETUP
MA IN MENU
ESC
ESCESC
P 1
SERIAL - FIIRMW
1.0-9.0
Bar
4.0
1.1
PRESSURE SET 1
PRESSURE SET 2
PUMP 1 CURRENT
PUMP 1 ROTATION
BASE SETUP
1.1. ADVANCED CONFIGURATION (ADVANCED SETUP)
The ADVANCED SETUP menu groups together the parameters which allow optimising operation in
particular plant engineering situations. The setting of certain parameters requires precise plant
engineering skill and wrong configuration could worsen control behaviour.
PARAMETER
SYMBOL
SHORT DESCRI
PTION
UNIT
default
min
max
step
2.1 RESTART DIFF DPr Restarting differential pressure bar 0.4 0.1 1.0 0.1
The DPr value determines the pump restart pressure given a certain set pressure P1
example:
PRESSURE SET 1 (P1) = 3,0 bar
RESTART DIFF ( DPr) = 0,2 bar
Re-starting pressure = 3,0 - 0,2 = 2,8
The pump will start when the plant pressure drops below 2.8 bar.
PARAMETER
SYMBOL
SHORT DESCRIPTION
UNIT
default
min
max
step
2.2 MOTOR FREQ MF Motor frequency Hz 50 50 60 10
motor plate frequency
PARAME
TER
SYMBOL
SHORT DESCRIPTION
UNIT
default
min
max
step
2.3 MIN FREQ LoF Minimum operating frequency Hz 30 15 40 1
The parameter limits the minimum operating frequency of the pump controlled by the inverter;
PARAMETER
SYMBOL
SHORT DESCRIPTION
UNIT
def
ault
min
max
step
2.4 MAX FREQ HiF maximum operating frequency Hz 50 40 70 1
The parameter limits the maximum operating frequency of the pump controlled by the inverter; the
maximum frequency must normally coincide with the plate frequency of the motor pump (50 or 60
Hz), but the possibility exists of this varying down or up by +/- 10 Hz, with 1 Hz step.
IMPORTANT: the choice of exceeding the maximum frequency is the responsibility of the installer,
who must realise the consequences of raising the maximum frequency on the risks related to the
motor, to the pump and to the electrical system.
