8.3.4 52-5310A - MB/XD/XR GPIO Module, 8 out, 4 in

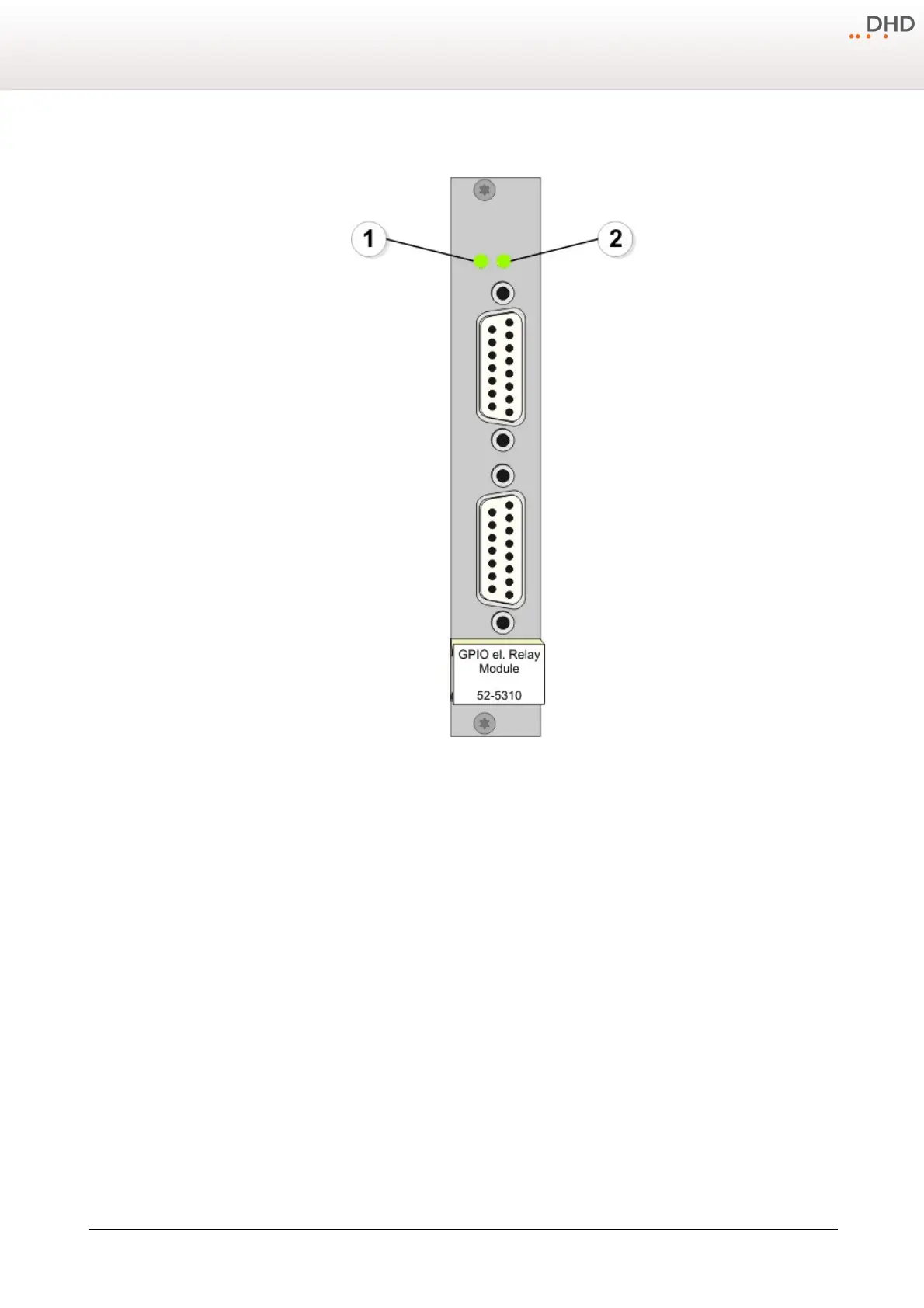

Meaning of the LEDs of the 52-5310 Module.
1. This LED is permanently on if the module is powered.
2. Indicates, that the module is running. This LED blinks. Seen from left to right over the entire system, these LEDs should
blink as a moving light.
