8.5 Example of Use

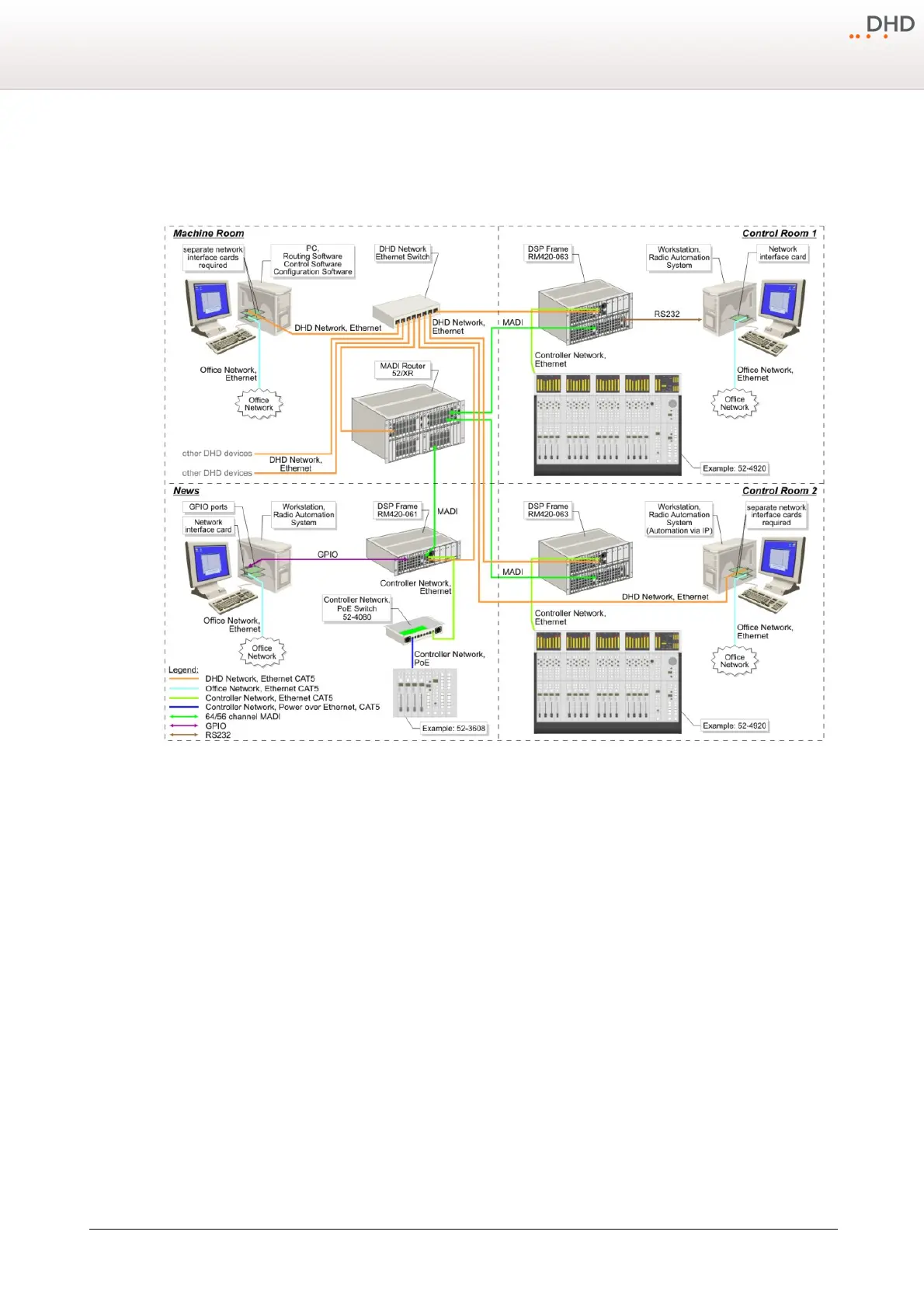

In the following drawing, you can find an example how to integrate an 52/XR MADI Router into an audio network.
Series 52 audio network with an 52/XR MADI Router and 52/MX consoles.
In this example an 52/XR MADI Router is located in the machine room. The router is connected to the mixing consoles in
the studios (
Control Room 1
,
Control Room 2
and
News
) via MADI. Within the DHD ethernet network, the router is
able to exchange control data with other devices.
Please find more information about the wiring of an 52/XR MADI Router in the 52/XR Installation Guide.
