8.3.8 52-6442A - XR Router/DSP Kernel Module 2048

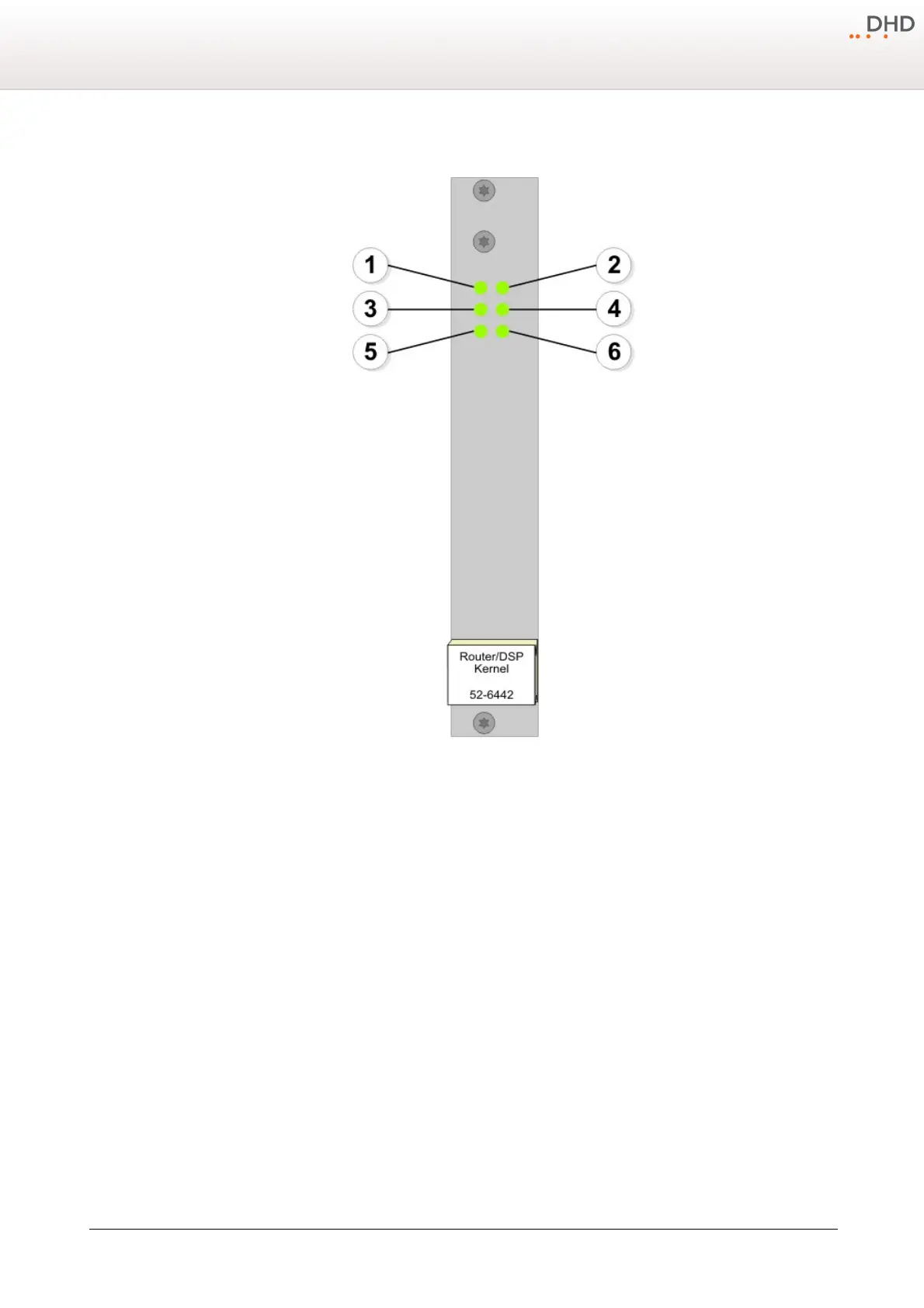

Meaning of the LEDs of the 52-6442 Module.
1. This LED is permanently on if the module is powered.
2. This LED shows the hardware status and is permanently on if the boot process of the programmable logic was
successfully done.
3. This LED indicates the DSP usage. The more the LED glows, the more DSP power is used.
4. Indicates, that the module is running. This LED blinks. Seen from left to right over the entire system, these LEDs should
blink as a moving light.
5. This LED is permanently on, but momentary unused and reserved for future functions.
6. This LED is permanently on, but momentary unused and reserved for future functions.
