Constant Lighting Controller Menus
Constant Lighting Control Functions Menu
The Constant Lighting Control Functions menu has three submenus.
You access the conguration for each of these submenus by
selecting the corresponding button:
1. C.L.C. Functions > Basic
2. C.L.C. Functions > Groups
3. C.L.C. Functions > Presets
1. Outputs
The Outputs screen displays all outputs controlled by a Constant
Lighting Controller (CLC) local sensor. The sensor has three types
of settings:
Threshold Trigger - triggers a relay output to ON when the
measured light level goes below the Low Level Set Point and
triggers the output to OFF when the light level goes above the
High Level Set Point value.
Open Loop - constantly adjusts the dimming levels of each output
in response to the measured light level coming into the room.
Closed Loop - constantly adjusts the dimming levels of each
output in response to the measured light level inside the room.
The outputs are listed by type of CLC setting in the order of the
controlling sensor. Output type is also displayed with r = relay and d
= dimmer. Outputs are sensors when a new Output Mode is created.

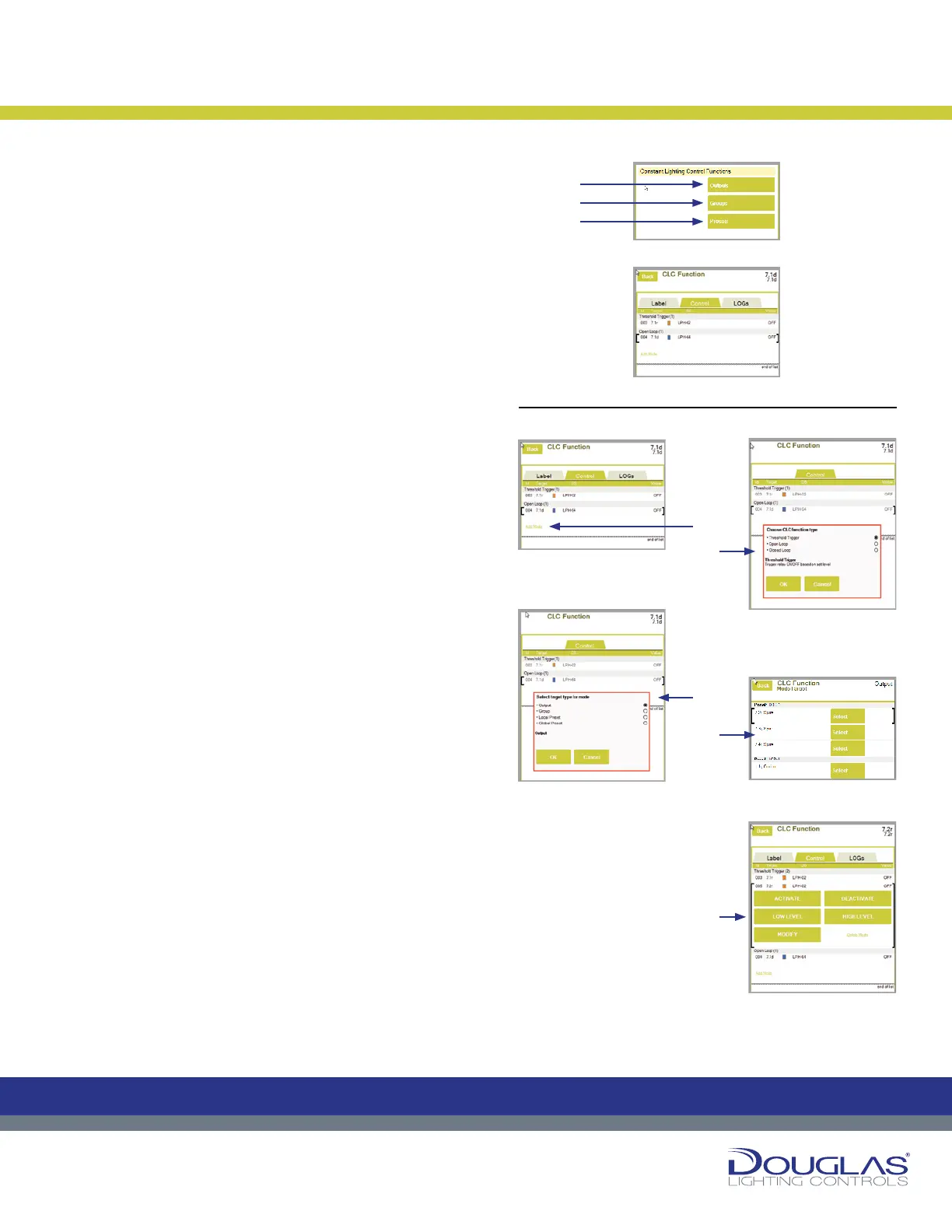

1. To create a new Output Mode:
a) Select the Add Mode link. You may have to scroll to the end
of the list.
b) Select the CLC setting and select the OK button.
c) Select the target type and select the OK button.
d) Select the controlling output and select the OK button.
e) The new output mode is displayed. Use the buttons on the
screen to adjust the conguration.
